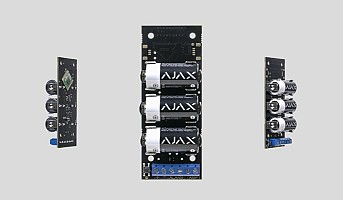

Wireless module for connection of outdoor motion detectors, IR barriers, liquid level detectors, and gas detectors, thermal relays and any third-party devices with wired output to the Ajax security system

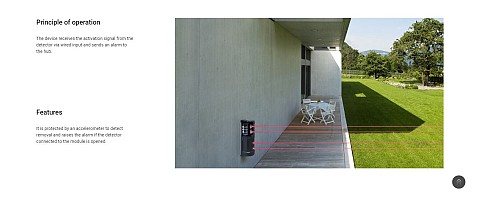

The device receives the activation signal from the detector via wired input and sends an alarm to the hub
It is protected by an accelerometer to detect removal and raises the alarm if the detector connected to the module is opened
Connecting a detector : Alarm and Tamper (NO/NC) terminals
Mode for processing alarm signals from the detector : Pulse or Bistable
Power : 3 x CR123A, 3V batteries
Capability to power the connected detector : Yes, 3.3V
Protection from dismounting : Accelerometer
Frequency band : 868.0–868.6 MHz or 868.7 – 869.2 MHz, depends on sales region
Compatibility : Operates only with Hub, Hub Plus, Hub 2 and ReX
Maximum RF output power : Up to 20 mW
Modulation : GFSK
Communication range : Up to 1,600 m (any obstacles absent)
Ping interval for the connection with the receiver : 12–300 sec
