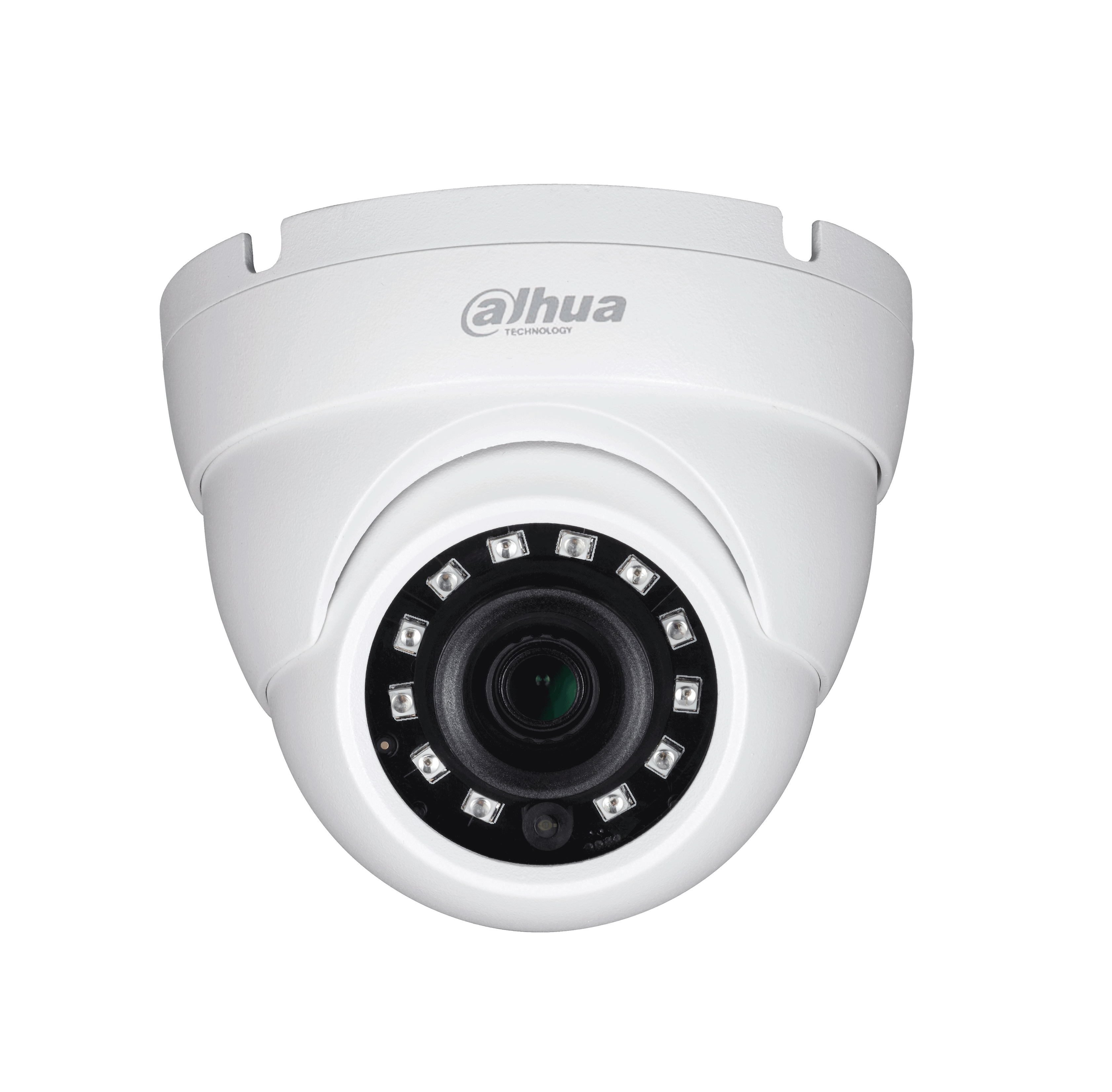

Dahua HDCVI 8.0MP Dome 2.8mm HDW1800M
Dahua

Dahua HDCVI 8.0MP Dome 2.8mm HDW1800M

Order Code: 20876


  • Housing Type: Dome
  • Camera Protocols: AHD/HDCVI/TVI/CVBS
  • Camera Resolution: 8.0 MP
  • Lens Type: Fixed
  • Lens Size: 2.8mm
  • IR Distance: Up to 30m
  • WDR: DWDR
Stock Level: Good

 –

Price: €95.00
  • Max. 4K resolution, real-time video transmission
  • CVI/CVBS/AHD/TVI switchable
  • Fixed lens (2.8mm; 3.6mm;6mm optional)
  • Max. IR length 30m, Smart IR
  • IP67, 12V±30%DC

Camera

  • Image Sensor : 1/2.7 inch CMOS
  • Effective Pixels : 3840 (H)× 2160 (V), 4K
  • Scanning System : Progressive
  • Electronic Shutter Speed : PAL: 1/25s–1/100000s / NTSC: 1/30s–1/100000s
  • S/N Ratio : >65dB
  • Minimum Illumination : 0.03Lux/F2.0, 30IRE, 0Lux IR on
  • Fill Light Working Distance : 30 m (98.4 ft)
  • IR On/Off Control : Auto; manual
  • IR LED Number : 12

Lens

  • Lens Type : Fixed-focal
  • Mount Type : M12
  • Focal Length : 2.8mm
  • Max. Aperture : F2.0
  • Angle of View : 2.8mm: 125° x 105° x 56° (diagonal x horizontal x vertical)
  • Iris Type : Fixed iris
  • Close Focus Distance : 2.8mm: 1.0 m (3.3 ft)

Video

  • Frame Rate : CVI: 4K@25/30fps; 4K@15fps; 5M@20fps; 4M@25fps/30fps; / AHD: 4K@15fps; / TVI: 4K@15fps; / CVBS: 960H
  • Resolution : 4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440); 960H (960 × 576/960 × 480)
  • Day/Night : Auto switch by ICR
  • BLC : BLC/HLC/WDR
  • WDR : DWDR
  • White Balance : Auto; manual
  • Gain Control : Auto; manual
  • Noise Reduction : 2D NR
  • Smart IR : Yes
  • Mirror : Off/On
  • Privacy Masking : Off/On (8 area, rectangle)

Certifications

  • CE (EN55032, EN55024, EN50130-4,EN60950-1)
  • FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
  • UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

  • Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

  • Power Supply : 12V ±30% DC
  • Power Consumption : Max 4.3W (12V DC, IR on)

Environment

  • Operating Temperature : -40°C to +60°C (-40°F to 140°F);<95% (non-condensation)
  • Storage Temperature : -40°C to +60°C (-40°F to 140°F);<95% (non-condensation)
  • Protection Grade : IP67

Structure

  • Casing : Metal throughout the whole casing
  • Camera Dimensions : 93.4mm×79.4mm ( 3.68"×3.13" )
  • Net Weight : 0.27 Kg
  • Gross Weight : 0.35 Kg
Datasheet
