• Connectivity: IP
  • Material: Plastic
  • Display: 7''
  • Monitor Res: 1024x600
  • Memory Slot: Micro SD, Max 32G

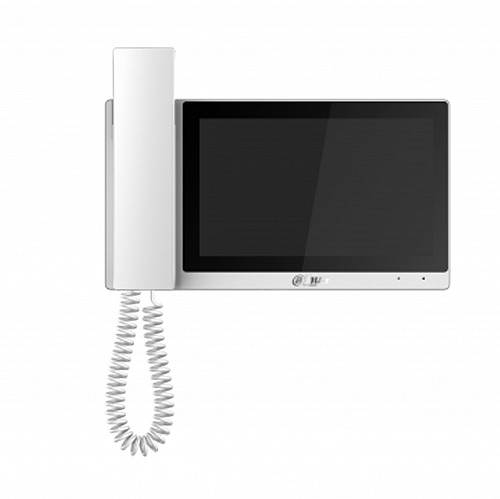

Dahua VD IP Doorphone Monitor VTH5421EW-H

Order Code: 22206
  • Connectivity: IP
  • Material: Plastic
  • Display: 7''
  • Monitor Res: 1024x600
  • Memory Slot: Micro SD, Max 32G
Stock Level: Only 3 pieces left
Price: €390.00
  • 7 inch LCD, 1024 (H)×600(V)
  • 6 alarm input ports
  • 1 alarm output port
  • 1 x 12V DC power output port provides power for peripheral alarm devices and sensors
  • 16kbps audio stream
  • You can answer calls hands free
  • Support SOS alarm
  • H.264

System

  • Operation System : Embedded Linux operation system
  • Interoperability : Support Onvif
  • Internet Protocol : IPv4, DNS, RTSP, RTP, TCP, UDP, SIP

Basic

  • Screen Type : Capacitive Screen
  • Display : 7 inch TFT display
  • Resolution : 1024(H)×600(V)
  • Video Encoding : H.264
  • Audio Encoding : PCM
  • Audio Input : 1 channel
  • Audio Output : 1 built-in speaker and 1 handset speaker
  • Audio Mode : Full duplex communication
  • Audio Enhancement : Echo suppression and cancellation/digital noise reduction
  • Audio Bit Rate : 16KHz, 16Bit
  • Status Indicator Light : 1 red indicator light flickers constantly during upgrade

Function

  • Storage : SD card is supported and the maximum capacity is 32GB
  • Communication Methods : Full digital
  • Information Release : Text messages can be received and viewed on the indoor monitor (images can be received if SD card is inserted)
  • Elevator Control : You can control the elevator through the indoor monitor
  • Leave Photos and Messages : Yes (SD card is needed)
  • Do Not Disturb Mode : Yes
  • Extension Quantity : Villa: 9 extensions apartment: 4 extensions
  • Wi-Fi : Yes
  • Wireless Standard : IEEE802.11b/802.11g/802.11n
  • Wireless Frequency Range : 2.4GHz
  • Wireless Security Encryption : 64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Port

  • RS-485 : 1
  • Alarm Input : 6 (digital quantity)
  • Alarm Output : 1 (digital quantity)
  • Power Output :1 12V/100mA power output port
  • Door bell : Yes (Use alarm input port)
  • Network : 1 RJ-45 100Mbps port

Alarm

  • SOS : Yes

Performance

  • Housing Material : PC+ABS

Regular

  • Power Supply Mode : 12V DC 1A, standard PoE
  • Installation Method : Surface mount (this equipment is only suitable for mounting at heights ≤ 2m)
  • Certification : CE, FCC
  • Accessory : Bracket
  • Alarm cable : RS-485 cable
  • Product Dimensions : 236.0mm×129.8mm×23.0mm
  • Working Temperature : -10°C to +55°C (+14°F to +131°F)
  • Working Humidity : 10%RH–90%RH (non-condensing)
  • Working Altitude : Less than 3,000 meters
  • Power Consumption : ≤2W (standby), ≤5W (working)
  • Net Weight : 566g
  • Gross Weight : 917g



Datasheet
