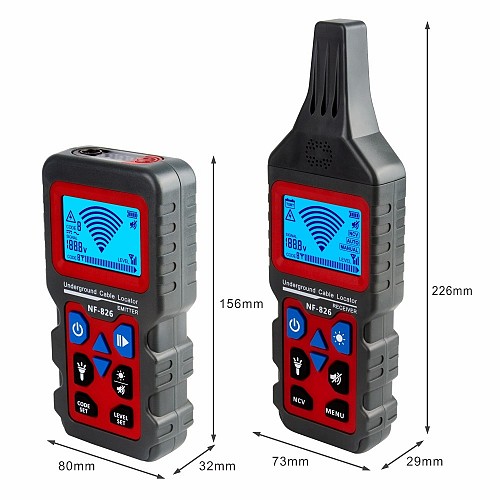

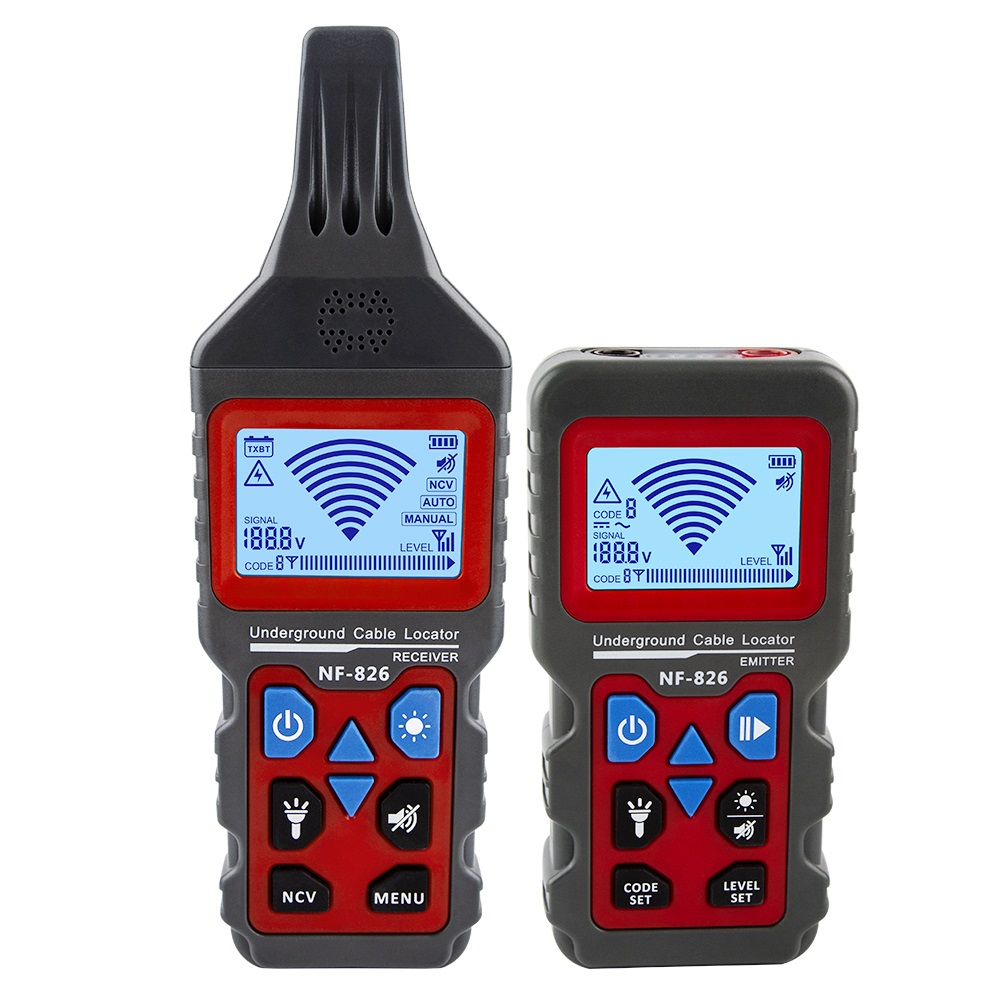

Noyafa Network Multi Tester & Tracking Device with Cable Tracing & Fault Detection NF-826

Order Code: 22446
Stock Level: Only 3 pieces left



Price
€179.00
Promo Price (Online only)
104.99

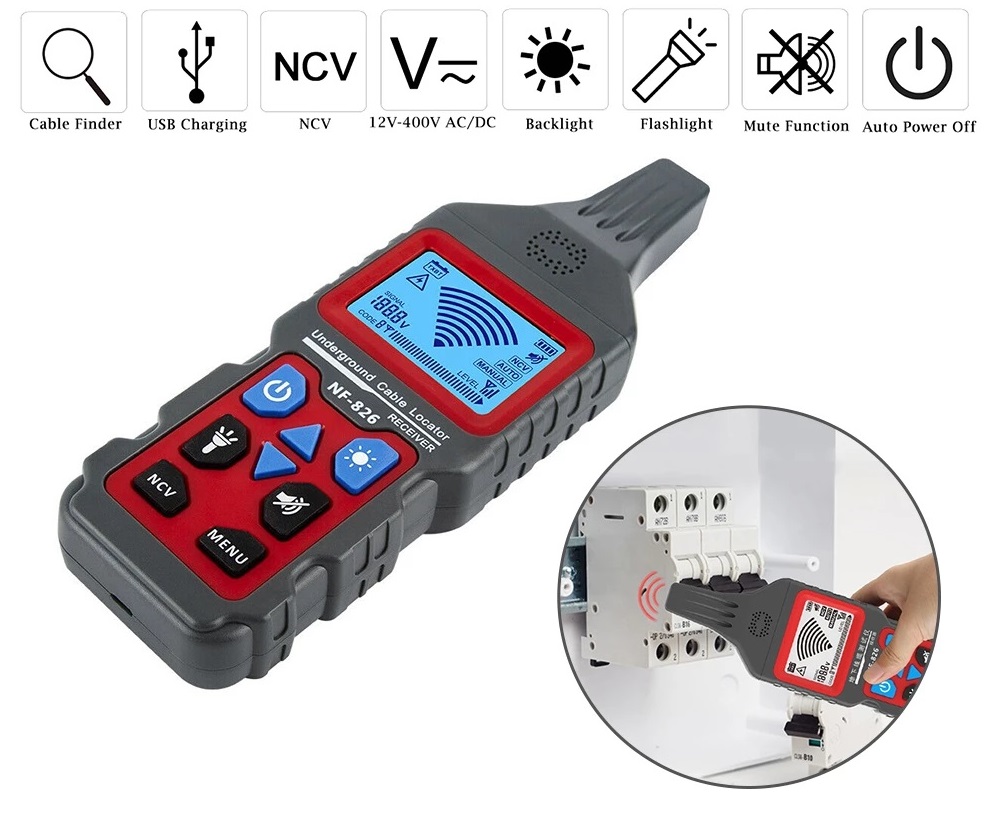

  • Detecting and Locating breaks and short circuit in cables and electrical lines buried in wall or underground
  • Detecting the laid metal tap water pipe and metal heating pipe
  • Detecting interruptions and short-circuits in floor heating
  • Detecting fuses and assigning current circuits,tracing sockets and junction boxes having accidentally been covered by plastering

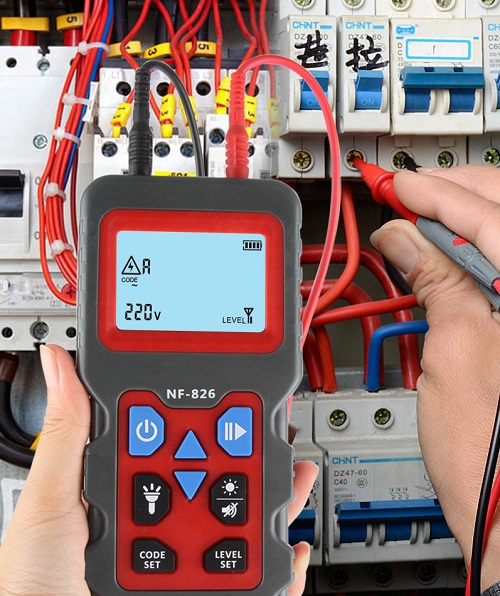

  • The transmitter is integrated with the function of AC/DC voltmeter, which can measure 12 to 400V AC/DC voltage on a linear basis
  • The Transmitter has the function of self-inspection to detect its own working status and to display it on the LCD screen for user's reference
  • The sensitivity of the receiver can be adjusted either manually or automatically
  • The receiver can sweep frequency automatically
  • Both the transmitter and the receiver can work under mute mode
  • Compactness-durability and portability
  • Auto power off within 10 minutes
  • Flashlight Function
  • Backlight Function
  • Mute Function

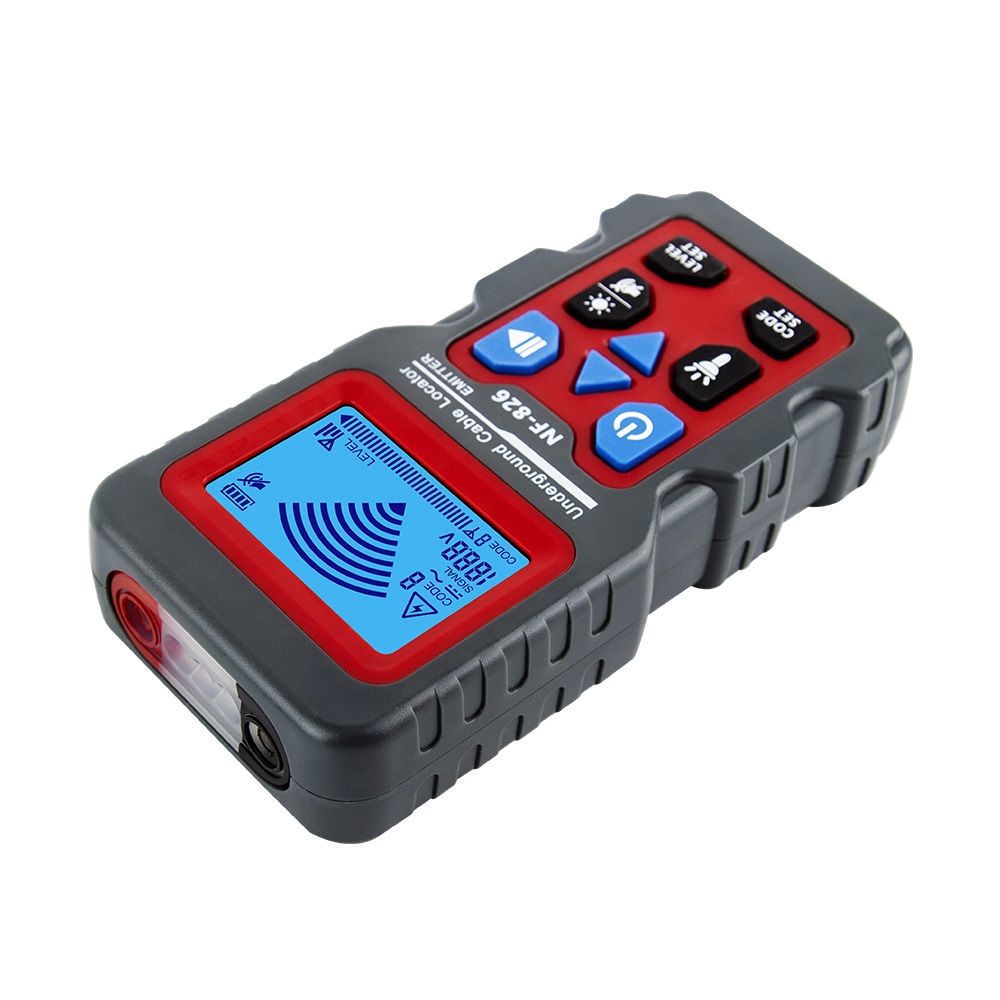

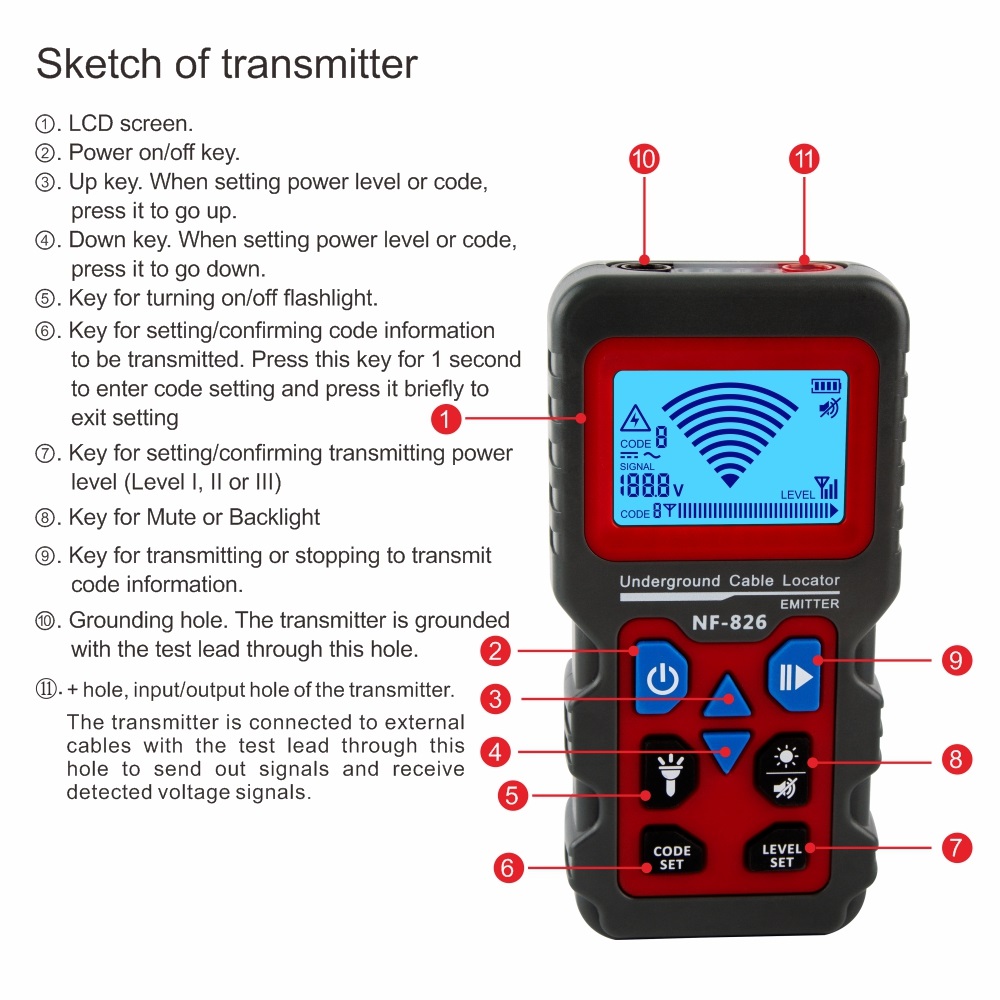

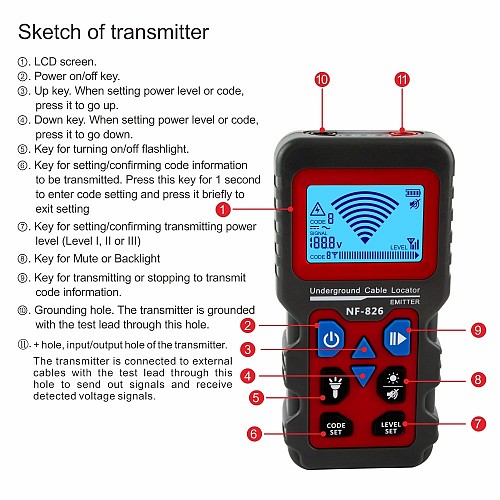

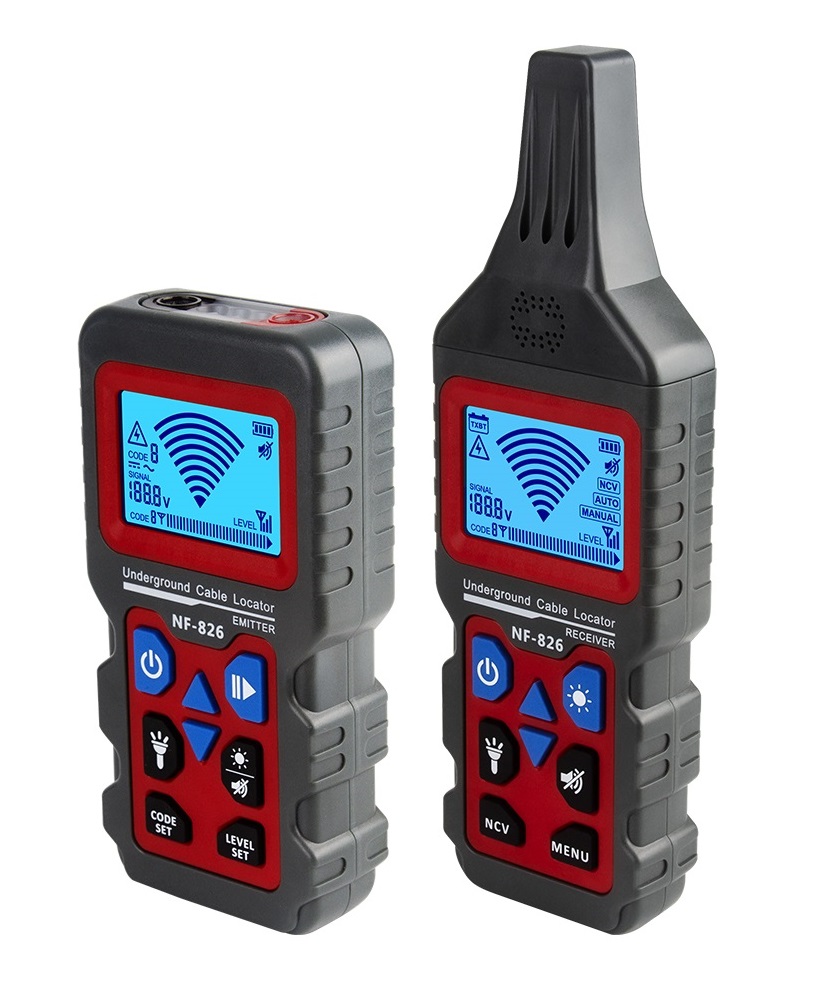

Transmitter:

  • Output signal:125KHz
  • Voltage measurement range: 12V-400V (AC / DC)
  • Voltage's dielectric strength: Max. 400V AC/DC

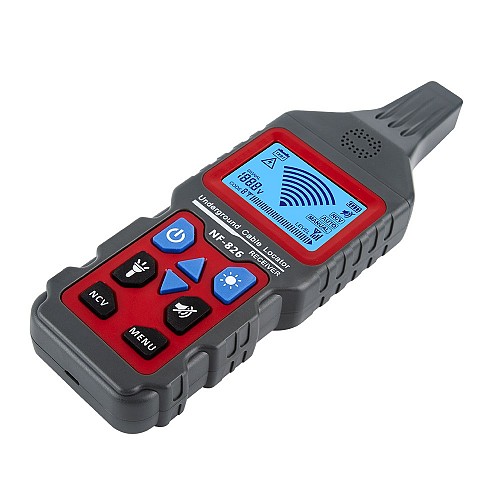

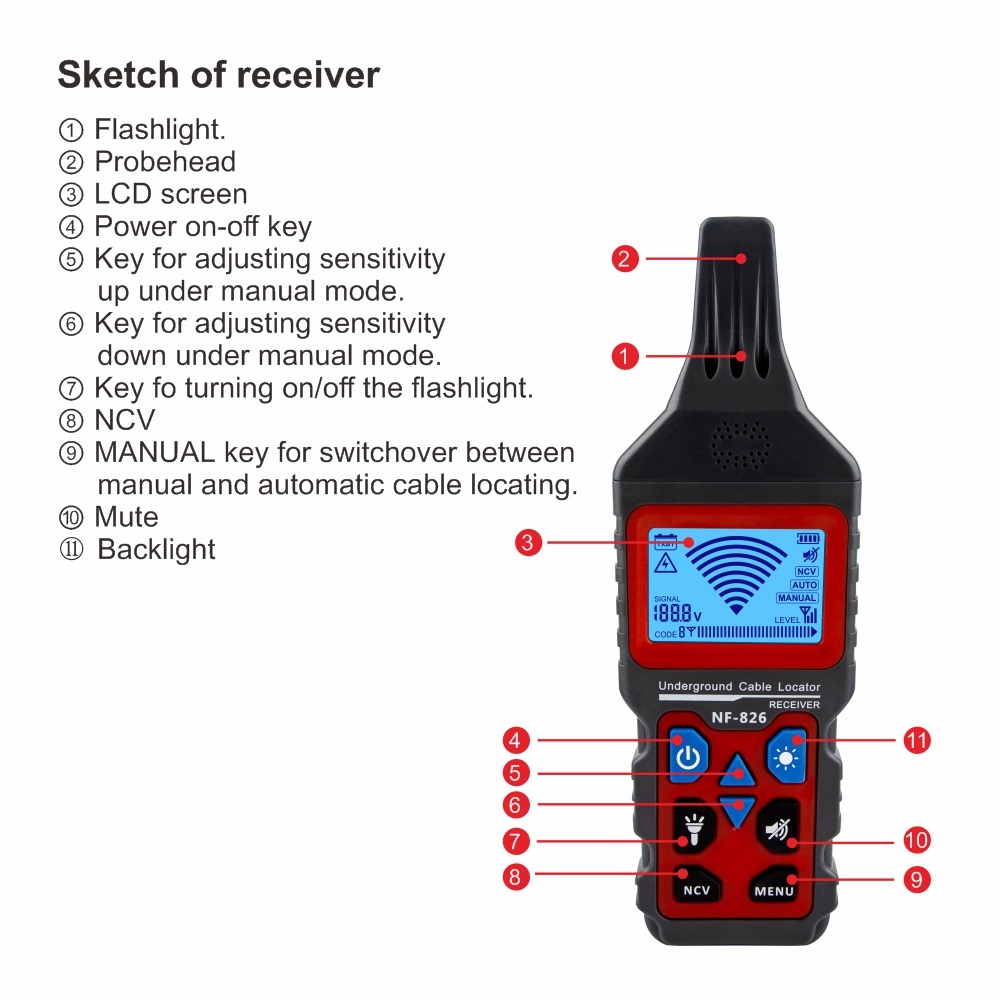

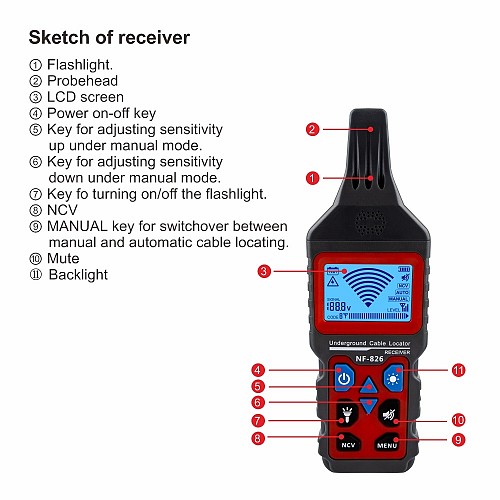

Receiver:

  • Cable Depth Measurement : 0~2.5m, the depth of tracking depends on the material and specific applications.
  • Grid voltage identification: about 0-0.4m

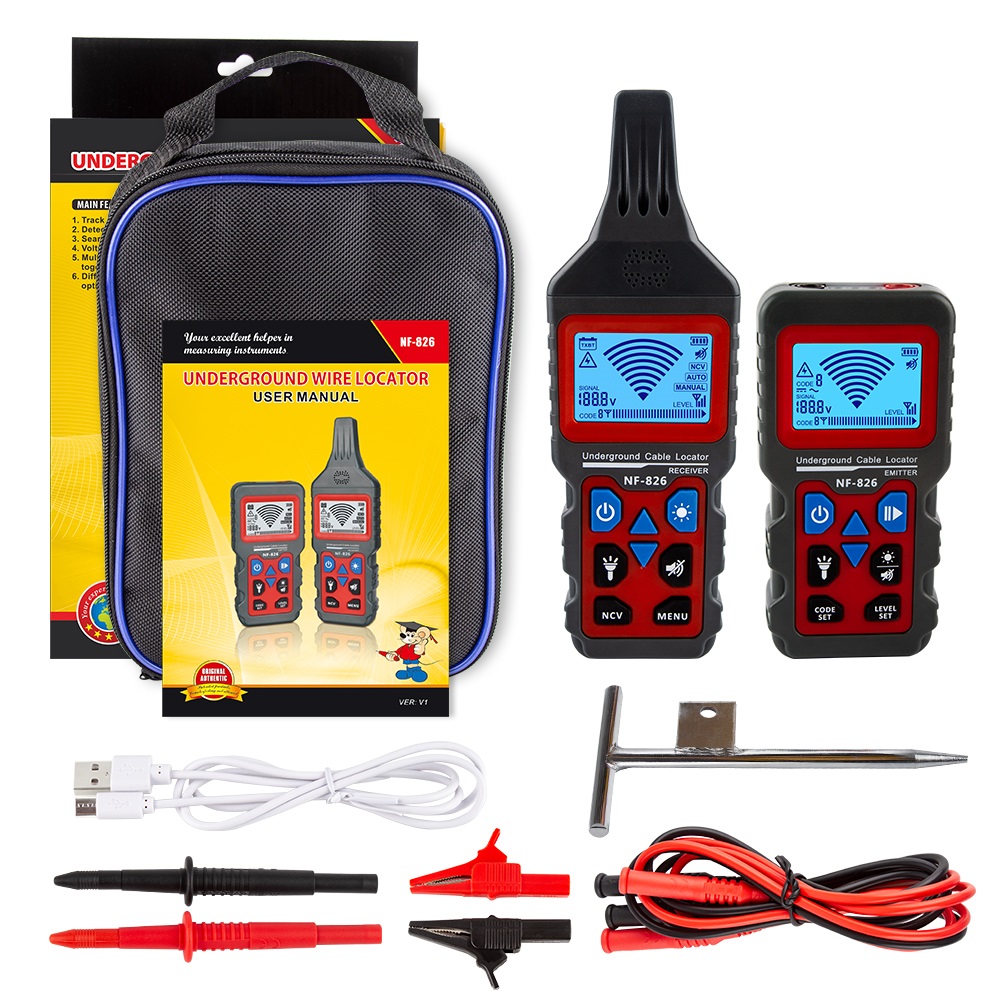

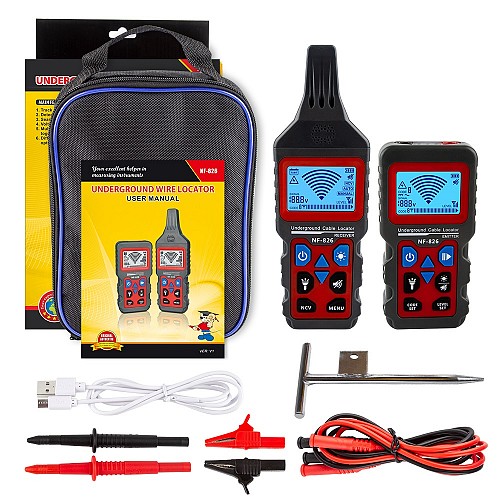

Whats in the box:

  • 1*Transmitter
  • 1*Receiver
  • 1*user Manual
  • 2*Alligator Clips (black, red)
  • 2*Test Leads (black, red)
  • 1*Grounding rod
