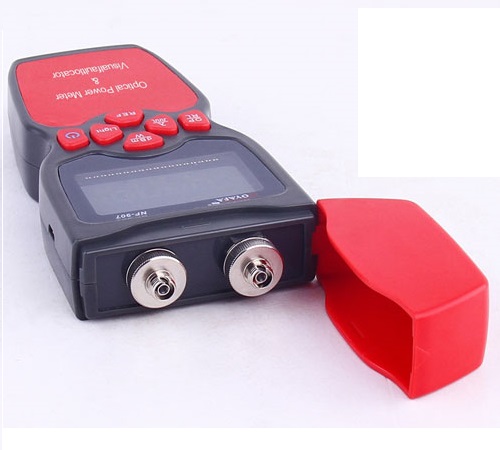

The 2-in-1 optical multimeter NF-907 is a compact and an easy-to-use testing instrument for optical fiber networks,which can be used for absolute optical power measurements as well as for optical fiber winding or breakage.
It has features of ingenious appearance, wide range of power measurement, high accuracy with high performance-to-price ratio.
Optical Power Meter Module
- Detector Type：IngaAs
- Measurement Range(dBm)：-50~+26
- Calibrated wavelengths(nm):850, 1300, 1310, 1490, 1550, 1625nm
- Resolution (dB):0.01dBm
- Identification Frequency Range：10Hz~60KHz
- Optical Connector：FC(SC,ST,LC connector can be optional)
Visual fault locator
- Emmiting Energy：20mw
- Standard wavelenth:650±10nm
- Operation Mode:Pulsed (2Hz) and CW
- Connector: 2.5mm Universal connector
General Specifications of Multi Meter
- Power Supply:1.5V*3pcs
- Auto-off time:15mins
- Operating Temperature(°C):-10~+60
- Dimension(mm):160x75x32mm
- Weight (g):400g
