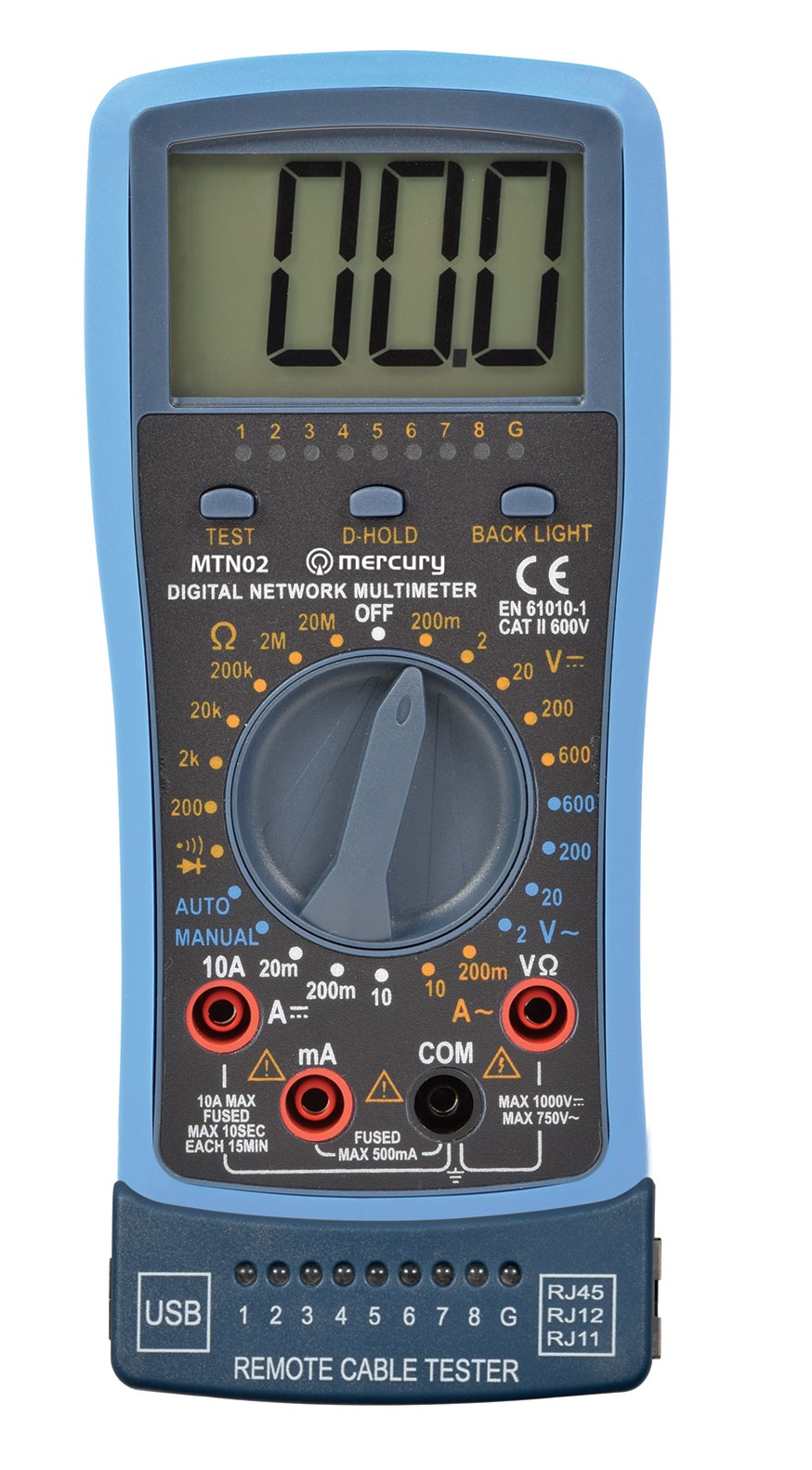

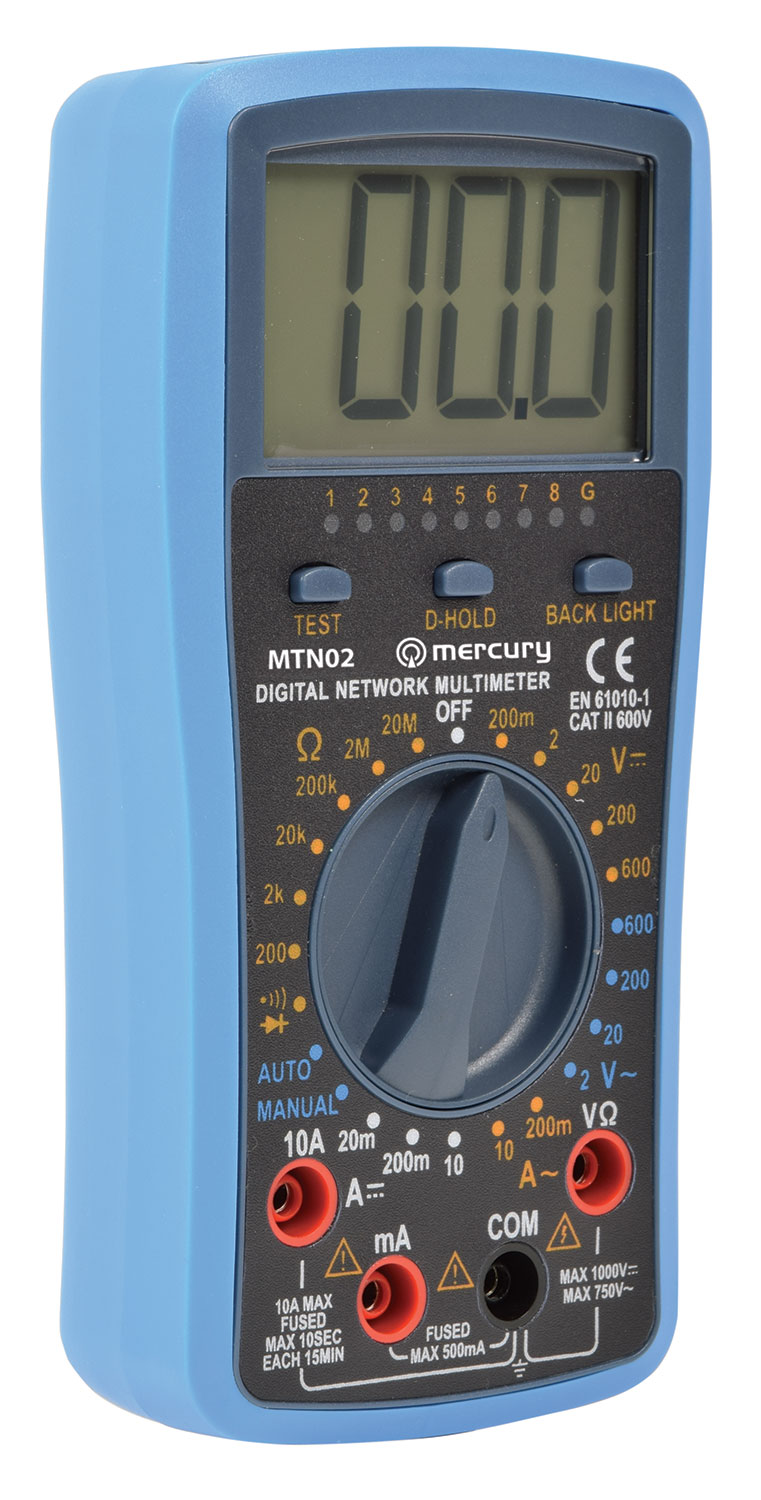

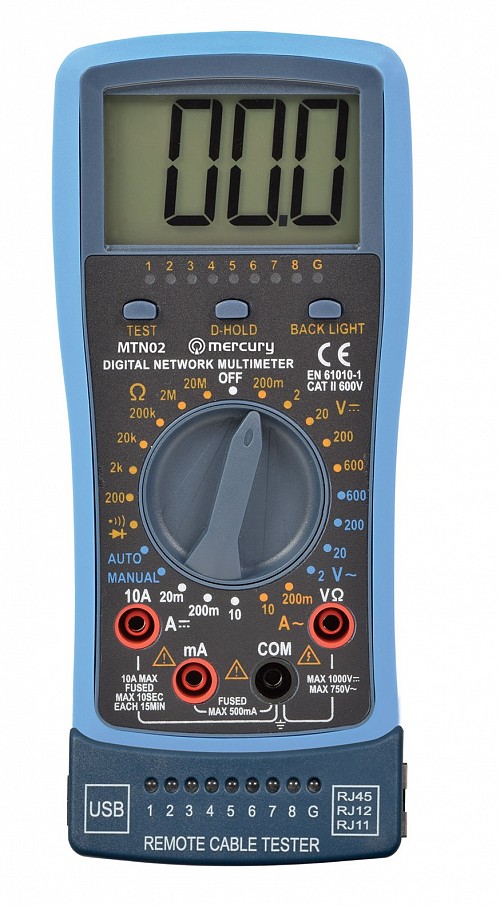

A professional digital multimeter with network and USB tester that offers 23 testing ranges and 6 functions and comes supplied ready to use in a shockproof rubber holster with shrouded testing probes and battery. The cable testing function uses a sequence of LED's on the main unit and remote unit to test lengths of RJ11, RJ12, RJ45 or USB cables for continuity and wire/pin-related faults. The large 1.25" 3.5 digit LCD display is easy to read and comes with additional backlight for working in darker environments.

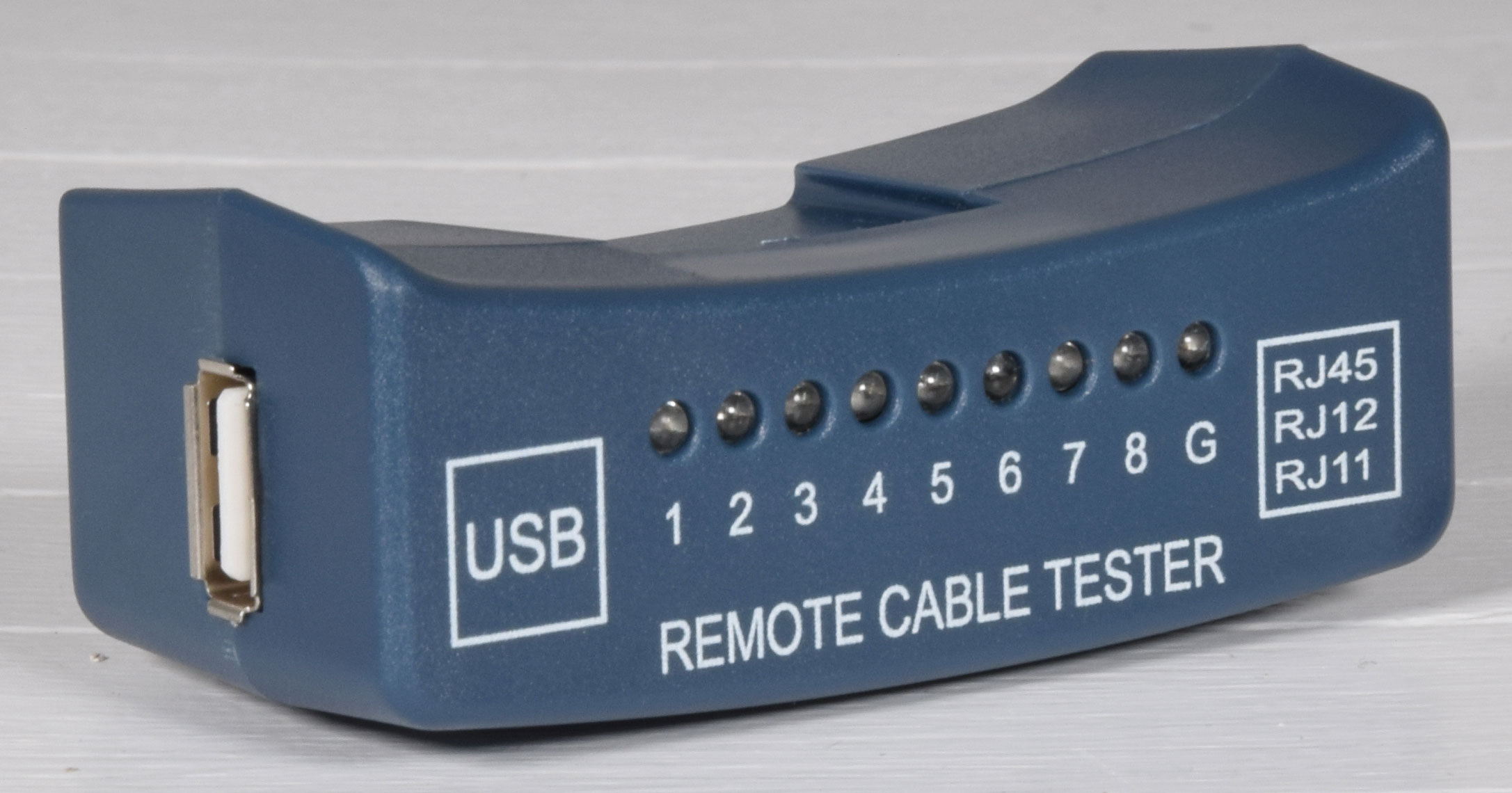

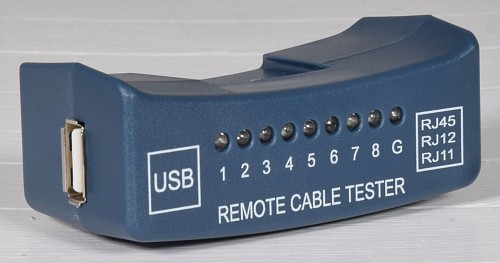

- Network and USB cable test function with remote unit for RJ11, RJ12, RJ45 and USB
- 3.5 Digit, 1999 count large 1.25" LCD display with backlight
- 2V-600V AC Voltage, 200mV-600V DC Voltage, 10A AC/DC current and resistance ranges
- Diode and continuity test functions
- Low battery indicator
- Complies with EN61010 - 1:2010
- Supplied with shrouded test leads, shockproof rubber holster and 9V PP3 battery
- Power supply 9Vdc (1 x PP3 supplied)
- AC current 200mA - 10A
- DC current 20mA - 10A
- AC voltage 2V - 600V
- DC voltage 200mV - 600V (Auto ranging)
- Resistance 200 Ohms - 20M Ohms
- Test lead length 1000mm
- Dimensions 190 x 85 x 35mm
- Weight 322g (including battery)
The box for this item contains :
- Digital multimeter
- Cable test remote unit
- Shrouded test lead set
- 9V PP3 Battery
- User guide
Send us your questions about the product.
