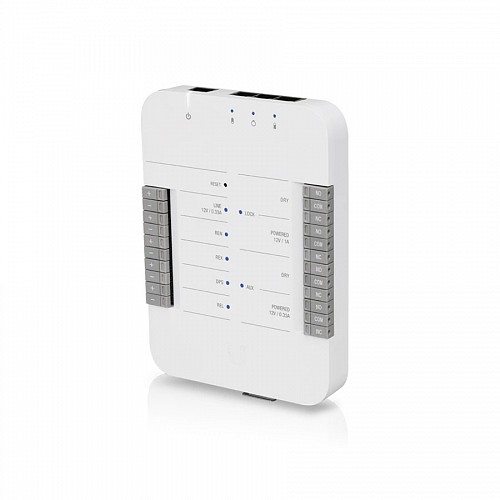

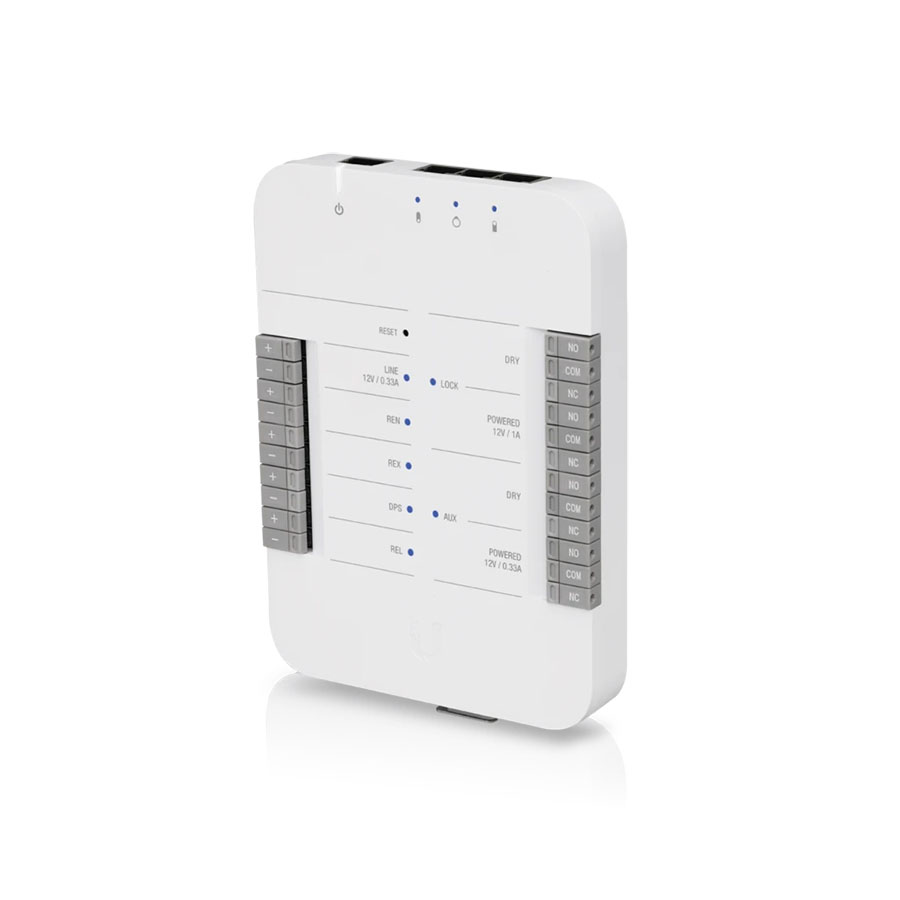

The Access Hub is a sophisticated, single-door entry mechanism that also manages connected Access Readers
The UniFi Access Hub comes with versatile interfaces, including support for most electric bolts/strikes, magnetic locks, and 12V access accessories such as motion sensors, push buttons, and alarms. The three Ethernet PoE powered reader interfaces minimize need for wiring work and offer a convenient way to add a UniFi G3-Flex surveillance camera for additional security. The seamlessly integrated UniFi Access solution is managed with UniFi Access application. Easily manage users, visitors, schedules, and access policies with the with the intuitive browser-based interface
Features:
Powered by 802.3bt (PoE++) switch
Three 802.3af PoE ports for UniFi readers and G3 Flex surveillance camera
12V powered and dry relays compatible with most locks
Four inputs for motion sensors, request-to-exit devices and door position switch
Managed with UniFi Access Application in UDM-Pro

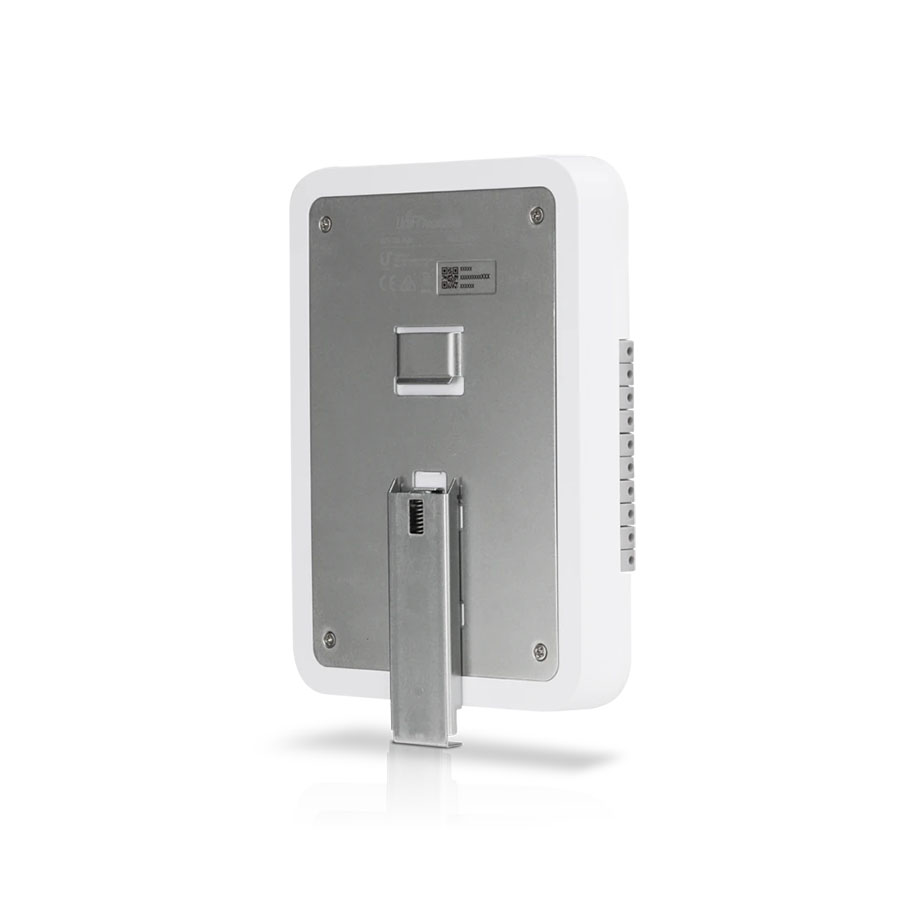

DIN-rail mounting
Mechanical
Dimensions : 190 x 126 x 33 mm
Weight : 457 g
Enclosure Characteristics : Plastic Enclosure with Metal Mount Plate
Mounting Options : DIN Rail
Hardware

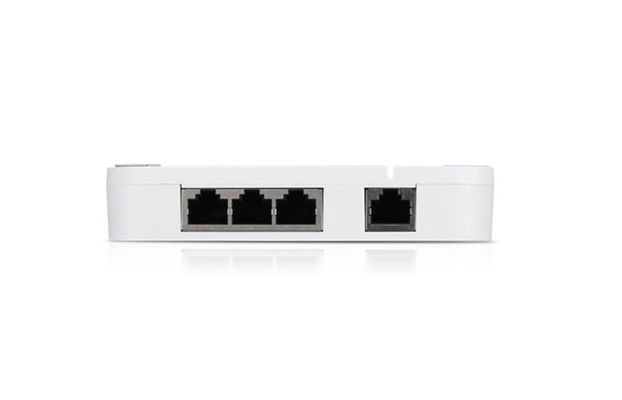

Networking Interface : (4) 1 Gbps Ethernet
Max. Power Consumption : 40W
Power Method : 802.3bt PoE

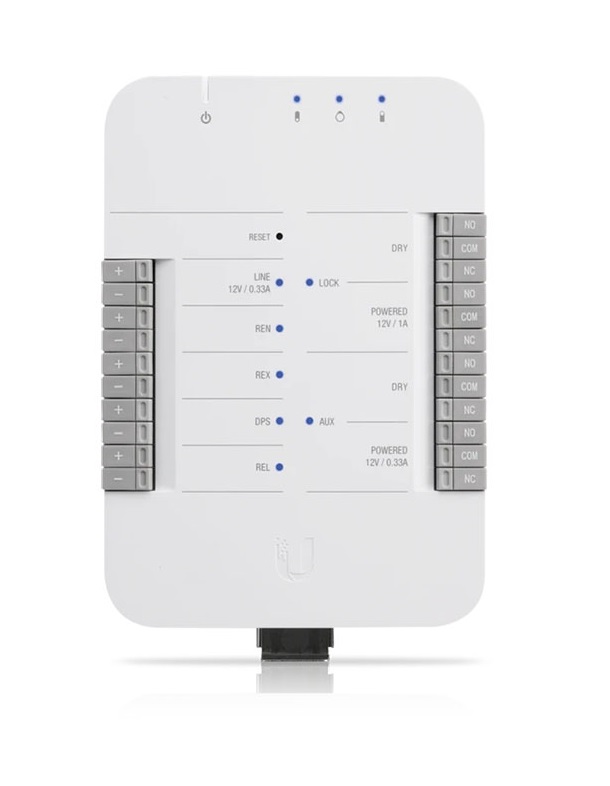

Input Terminals : REX - Request to Exit / REN - Request to Enter / REL - Remote Release / DPS - Door Position Sensor
