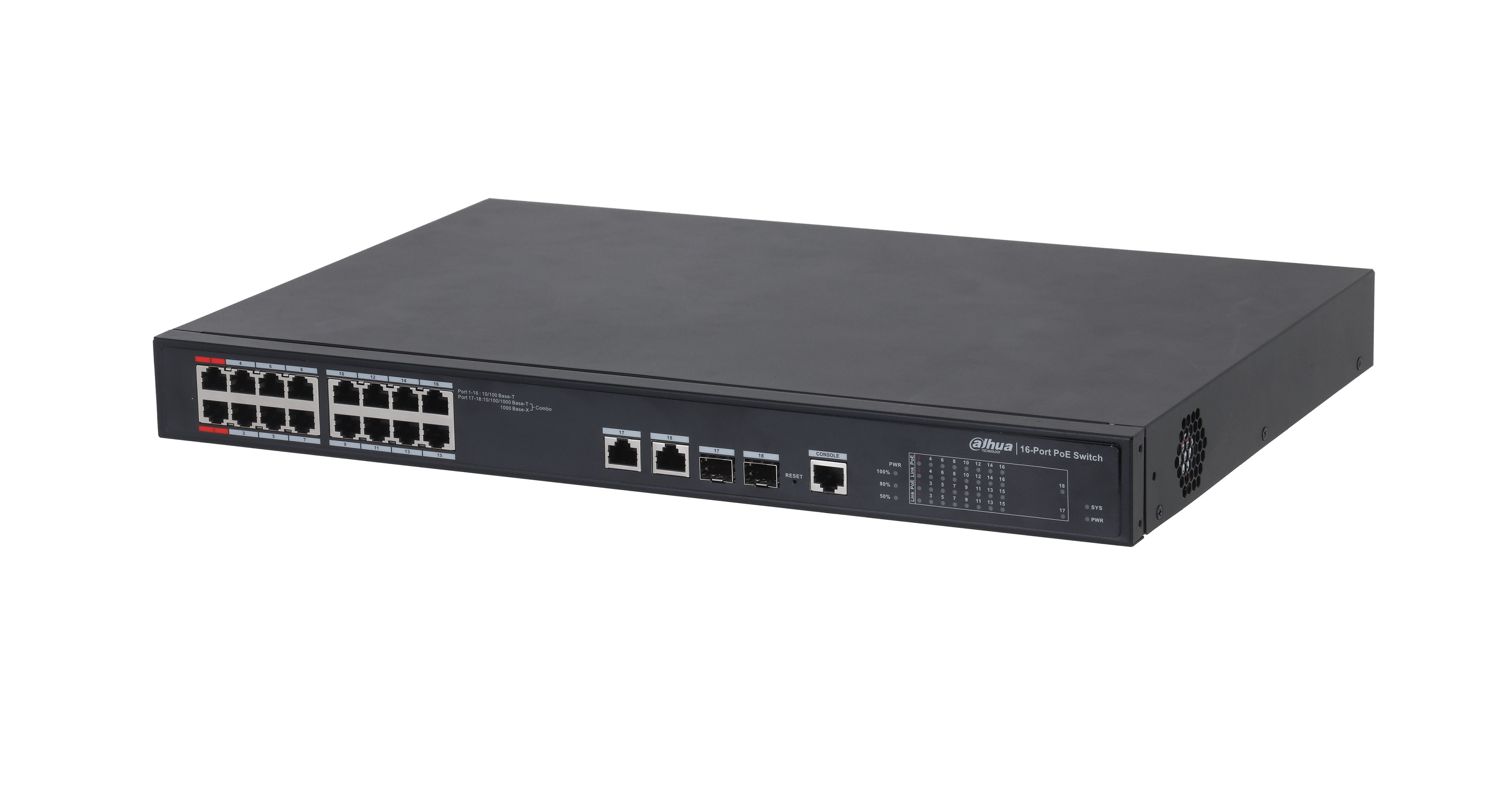

Dahua PoE Switch 16ports 240W Managed PFS4218-16ET-240-V3

Order Code: 23373

Stock Level: Good

Price: €384.₀₀

Performance

Layer : Layer 2
Managed : Yes
Switching Capacity : 8.8 Gbps
Packet Forwarding Rate : 5.36 Mpps
Packet Buffer Memory : 2.75 Mbit
MAC Table Size : 4K
Communication Standard : IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab;IEEE 802.3z

Hardware Feature

Standard Power Supply : Yes
PoE : Yes
Ethernet Port : 16
Optical Port : 2
Ethernet Port Rate : 100 Mbps
Optical Port Rate : 1 Gbps
Number of Bussiness Card Slots : Port 1-16: 16 × RJ-45 10 M/100 M (PoE) / Port 17-18: 2 × RJ-45 10 M/100 M/1000 M (uplink) / Port 17-18: 2 × SFP 1000 M (uplink) (combo)
Debugging : Console × 1
Power Supply : 100V–240V AC
Operating Temperature : –10 °C to +55 °
Operating Humidity : 10% RH–90% RH
Power Consumption : Idling: 10W / Full load: 240W

PoE

Function

Spanning Tree Protocol : IEEE 802.1d (STP); 802.1w (RSTP)
VLAN : IEEE802.1q Standard VLAN
Flow Control : Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)
Link Aggregation : Static; LACP
Port Mirroring : One-to-one; multiple-to-one
Multicast : GMP snooping based on port
DHCP : DHCP client
Security : Hardware supports IP and MAC binding based on port, MAC filtering based on port, and IEEE802.1x port authentication
QoS : High and low priority / WRR / 802.1P / DSCP / Priority based on protocol

General

ESD : Air discharge: 8kV / Contact discharge: 6kV
Thunder-proof : Common mode: 4kV / Differential mode: 2kV
Dimensions : 440 mm × 300 mm × 44 mm (L × W × H)
Packaging Dimensions : Packing box: 527 mm × 412 mm × 110 mm (L × W × H) / Protective box: 584 mm × 549 mm × 446 mm (L × W × H)

Certification
