• Power (RMS) 8ohm: 300W
  • USB/MP3: Yes
  • WiFi/Multiroom: Yes
  • Lan/Multiroom: Yes
  • Line In: Yes
  • Rackmount: Yes

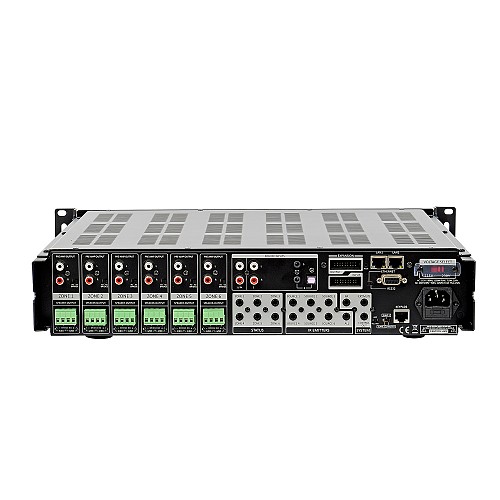

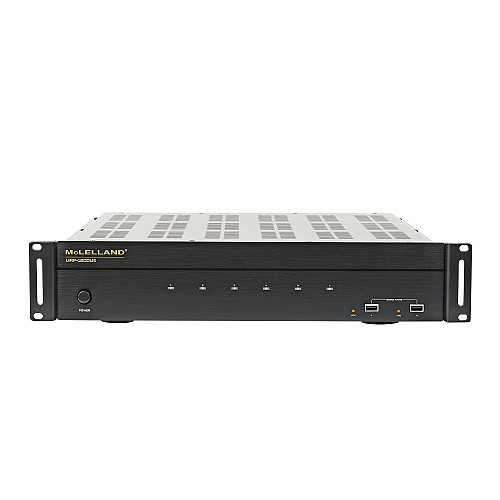

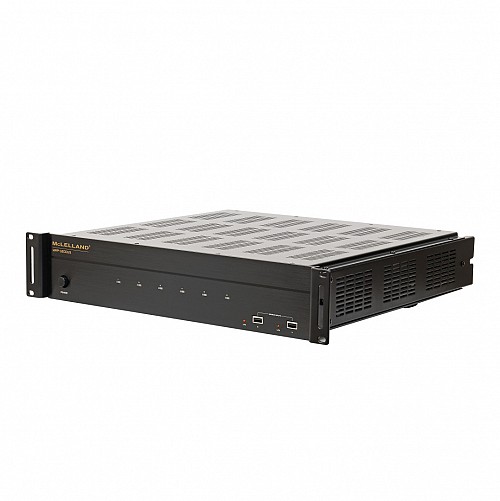

OPEN BOX McLelland MAP1200-US 6 Source / 6 Zone Multi-room Controller / AmplifierOpen box products may be showroom items or samples we have used for testing in our lab. The packaging may not appear as brand new. In general, open box items are in perfect working condition and have full 2-year warranty

Order Code: 23415
  • Power (RMS) 8ohm: 300W
  • USB/MP3: Yes
  • WiFi/Multiroom: Yes
  • Lan/Multiroom: Yes
  • Line In: Yes
  • Rackmount: Yes
Stock Level: Only 1 piece left
Price
€2000.00
Promo Price (Online only)
€1499.00
  • High efficiency more than 85% Class D amplification
  • 6 Line input sources, including 2 Audio Streamers (Input 3, 4)
  • USB ports for playing music files from USB Flash Drive (Input 3, 4)
  • Each zone Stereo/Mono output selectable
  • Enable control over Ethernet TCP/IP
  • Support Control APP
  • PRE-AMP output on Zone1~6
  • Built-in IR receiver & IR remote controller for Source select/Volume/Treble/Bass
  • 12V DC trigger output to external device when the system is power on
  • 12V DC mute trigger input from the external devices
  • RJ45 Ethernet port for the wired connection to the local network
  • Another RJ45 Ethernet expansion port for connecting with smart TV or other device
  • RS-232 port allows 2-way communication with the Home Automation system
  • Expandable up to 18 Zones by additional 2 units
  • 6 LEDs for 6 zones Power On, Standby and Mute
  • Built in IR emitter
  • Watts @ 8 Ohms 25W x 2 per zone
  • Watts @ 4 Ohms 50W x 2 per zone
  • Watts bridge 8 Ohms 100W per zone
  • S/N: >85dB AWTD
  • THD: <0.1%
  • Frequency Response: 20Hz-20KHz
  • Input Impedance:>47K Ohm
  • Input Sensitivity: 250mV
  • Protection: Overload, Short circuit
  • Output Connection: Terminal Block
  • System on Voltage: DC 12V
  • External mute voltage: DC 12V
  • Power supply: AC115V/60Hz, 230V/50Hz
  • Dimension: 43mm (W) x 89mm (H) x 416 (D)
  • Weight: 12 kg
Datasheet User Manual
