Mercury Economy CAT6 CCA UTP Cable 305m 808.025UK

Order Code: 23561

Type: Cat6
Cable Type: UTP
Conductor: CCA
Environment: Indoor
Length: 305m
Colour: Grey

Stock Level: Good

–

Price: €130.₀₀

Cat6 solid conductor twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an indoor environment.

Solid copper clad aluminium conductor

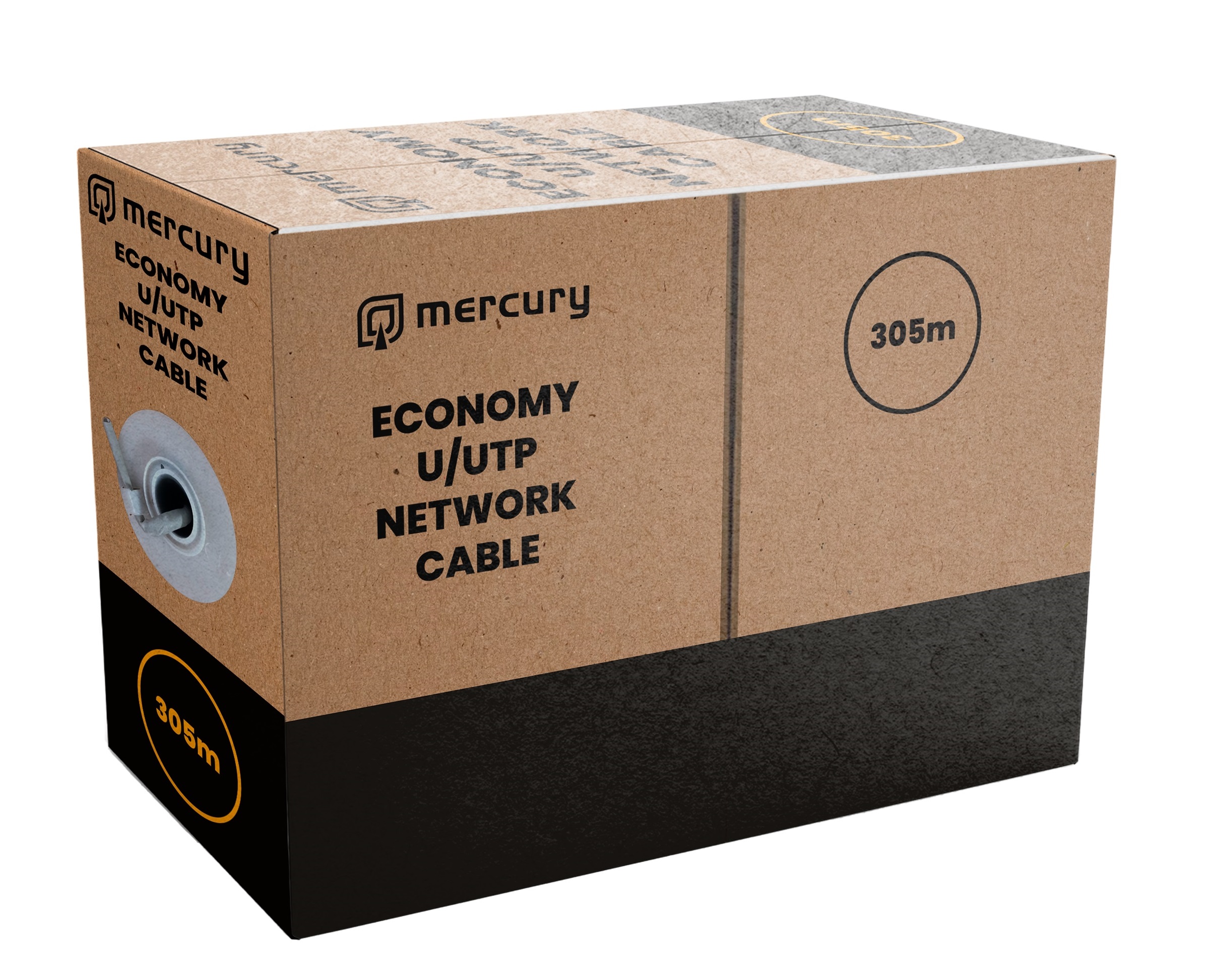

Supplied in an easy-pull dispensing box
Passes Cat6 fluke test 100m at 250MHz
Complies to TIA/EIA-568 Cat6 standard

Conductor Solid CCA
Strands 8 x 1/0.57mmØ ±2%
CSA 8 x 0.26mm²
Cable : diameter 5.5mmØ
Insulation HDPE 0.23mm thickness
Sheath PVC 0.5mm thickness
Impedance 100 Ohms (±15)
DC resistance @ 20°C <35 Ohms/100mt
Return loss >20dB @ 100m (from 1Mhz to 100Mhz)
NEXT >40dB @ 100m
PSNEXT >38dB @ 100m
Cable colour Grey
Length 305m
Weight 8.5kg

Send us your questions about the product.
