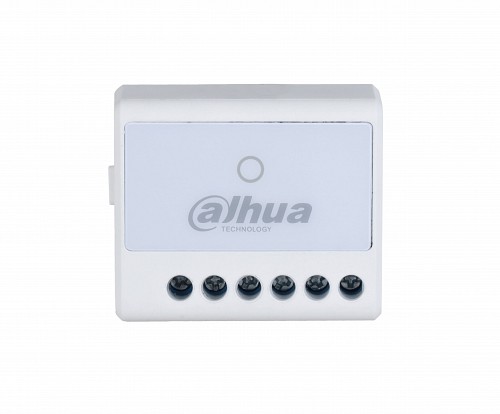

Dahua Alarm Wireless Automation Relay ARM7011-W2(868)

Order Code: 24157
Stock Level: High
Price
€43.00
Promo Price
€32.95
  • Frequency hopping and two-way communication technology ensure that communication is stable
  • Supports jamming detection and communication encryption
  • Supports cloud update and automatically restores when cloud update fails
  • Overheating protection
  • Voltage detection
  • 1 channel external tamper input

Port

  • Alarm Input : 1 for tamper, NO/NC
  • Relay Output : 1, NO/NC (0–36 VDC, Max 5A)

Function

  • Indicator Light : 1 for multiple statuses (pairing, communication)
  • Button : 1
  • Remote Update : Cloud update

Technical

  • Test Mode : Yes

Wireless

  • Carrier Frequency : 868.0 MHz–868.6 MHz
  • Communication Mechanism : Two-way
  • Communication Distance : 1200 m  in open areas
  • Encryption Mode : AES128
  • Frequency Hopping : Yes

General

  • Power Supply : 7–24 VDC
  • Operating Temperature : –10 °C to +55 °C (indoor)
  • Operating Humidity : 10%–90% (RH)
  • Storage Temperature : –10 °C to +55 °C
  • Storage Humidity : 10%–90% (RH)
  • Product Dimensions : 39 mm × 33 mm × 19 mm
  • Packaging Dimensions : 95 mm × 59.5 mm × 30.5 mm
  • Net Weight : 45 g
  • Gross Weight : 60 g
  • Installation : Wall mount
  • Casing Material : PC + ABS
  • Certifications : CE
Datasheet
