• Current: 20A
  • Type: Smart Switch
  • Din Rail Mount: Yes
  • Wifi: Yes
  • Output: 1 X Line Out/1 X Dry Contact
  • Mode: Interlock/self-locking/inching
  • Temperature Monitor: Yes
  • Wattage: 4600W

Sonoff WiFi Smart Switch TH Elite Smart Temperature and Humidity Monitoring THR320D 20A

Order Code: 24241
  • Current: 20A
  • Type: Smart Switch
  • Din Rail Mount: Yes
  • Wifi: Yes
  • Output: 1 X Line Out/1 X Dry Contact
  • Mode: Interlock/self-locking/inching
  • Temperature Monitor: Yes
  • Wattage: 4600W
Stock Level: GoodMore stock coming in 5 weeks
Price: €24.99
  • 20A Max & Dry Contact Output : Support to connect 20A Max high load, dry contact output

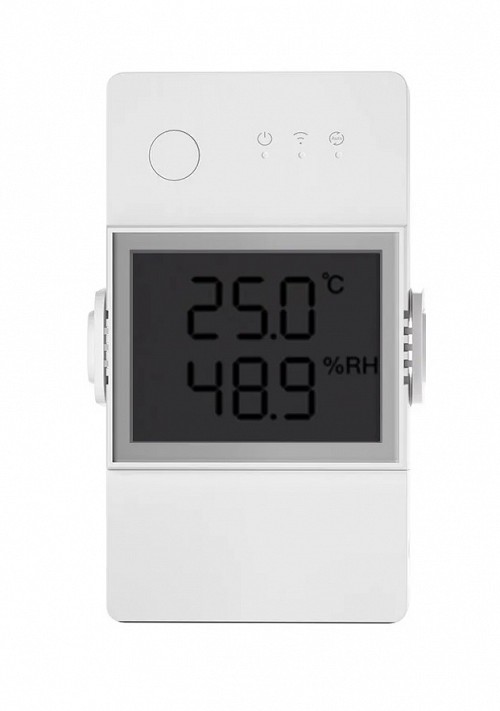

  • LCD Screen : Real-time monitoring of temperature and humidity data, the screen refreshed every 5S
  • 6-Month Temp & Humi Historical Data by Hours :  Support to review the temp & hum history data by hour, day and month. Past 6-month history data can be exported in .xlsx format and accurate to hour

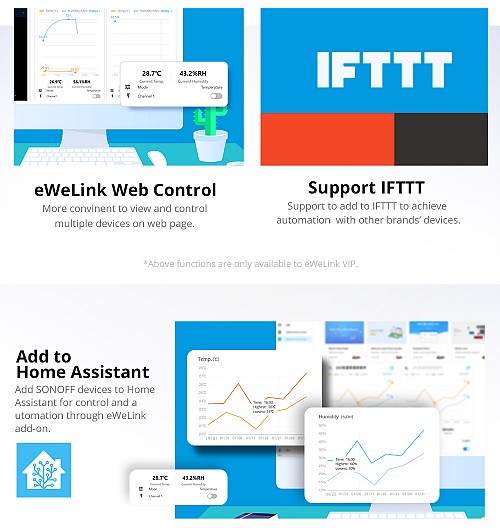

  • Local Automatic Control : Support LAN control, automatic control is more reliable. You can set 8 automatic control programs for you to save electricity bills and create comfortable surroundings
  • Voice Control and Query : Work with Alexa, Google Assistant, you can query temperature and humidity values by your voice

Note  : If you already have the 2.5mm Audio jack sensor (AM2301/DS18B20) and want to use it with the new TH ELITE, you must buy the RJ9 adapter

  • TH Elite :  20A
  • Model : THR320D
  • THR320D Input/Output  : 100-240V~50/60Hz 20A Max
  • MCU  : ESP32
  • Wi-Fi  : IEEE 802.11 b/g/n 2.4GHz
  • Dry contact  : 5-30V, 1A Max
  • TH Elite Working Humidity  : 5%-95%RH,non-condensing
  • TH Elite Working Temperature  : -10°C~40°C (14℉~104℉)
  • Supported Sensor  : THS01, DS18B20, MS01
  • THS01 Working Temp  : –40℃~+85°C(-40℉~185℉)
  • THS01 Humi Measuring Range  : 0~100%RH
  • DS18B20 WorkigTemp  : -55℃~+125℃(-67℉~257℉)
  • MS01 Humi Measuring Range  : 0~100%RH
  • MS01 Operating Temp Range  : 0℃~60°C(32℉~140℉)
  • RL560 Conductor Resistance  : Max.10
  • RL560 Insulation Resistance  : Min.5M
  • Certification  : TUV/CE/UKCA/WWA/FCC/RoHS/SRRC
  • Security Mode  : WPA/WPA2
  • Works with  : Amazon Alexa, Google Assistant
  • Casing material  : PC V0
  • Product Size  : 98x54x31mm
  • Color  : White
