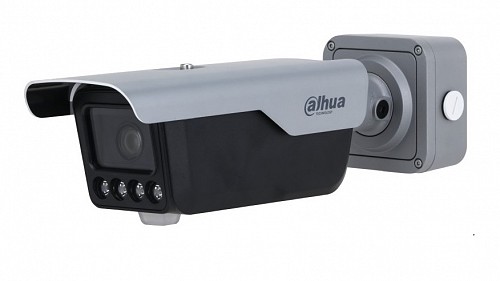

Dahua IP 4.0MP Bullet 2.7-12mm ANPR ITC413-PW4D-IZ1

Camera

• Image Sensor : 1/1.8" CMOS
• Image Resolution : 2688 × 1520
• Electronic Shutter Speed : Auto/Manual 1/25 s–1/100,000 s
• Max. Detection Speed : 80 km/h
• Min. Illumination : 0.001 Lux@F1.4 (Color, 30 IRE) / 0.0002 Lux@F1.4 (B/W, 30 IRE) / 0 Lux (Illuminator on)
• ROM : 1 GB
• RAM : 4 GB
• S/N Ratio : >56 dB
• Scanning System : progressive scanning

Lens

• Focal Length : 2.7 mm–12 m
• Field of View : H: 92° (W)—46.1° (T) / V: 49° (W)—26.0° (T) / D: 109° (W)—52.8° (T)
• Focus Control : Auto, area focus, manual
• Number of Lens : 1
• Lens Type : Motorized Vari-focal
• Max. Aperture : 1.4
• Iris Control : DC-Iris

DORI Distance

• Detect : 60.4 m
• Observe : 24.2 m
• Recognize : 12.1 m
• Identify : 6.0 m

Illuminator

• Illuminator Number : 4
• Illuminator On/Off Control  :Auto, manual
• Illuminator Type : (850 nm)
• Illumination Distance : ANPR: 10 m (32.81 ft) / Video monitoring: 30 m (98.43 ft)
• Smart Illumination : According to the brightness of the environment, the camera automatically adjusts the intensity of its light to reveal the details of moving targets. Devices with warm light can automatically adjust the light intensity according to the time
• Infrared Wavelength  : 850 nm

Video

• Video Resolution : Main stream: 4M (2688 × 1520)/1080p (1920 × 1080)/720p (1280 × 720) / Sub stream: 720p (1280 × 720)/960H (960 × 576, 960 × 480)/D1 (704 × 576, 704 × 480)/CIF (352 × 288, 352 × 240)
• Stream : PAL: Main stream (2688 × 1520@25 fps, 1920 × 1080@25 fps, 1280 × 720@25 fps), sub stream (1280 × 720@25 fps, 960 × 576@25 fps, 704 × 576@25 fps, 352 × 288@25 fps);
• NTSC: Main stream (2688 × 1520@30 fps, 1920 × 1080@30 fps, 1280 × 720@30 fps), sub stream (1280 × 720@30 fps, 960 × 480@30 fps, 704 × 408@30 fps, 352 × 240@30 fps)
• Video Compression : H.264H; H.264B; H.264M by default; H.265; MJPEG; H.264M
• Video Bit Rate : H.264B: 2,179 kbps–13,074 kbps / H.264M: 2,179 kbps–13,074 kbps / H.264H: 2,179 kbps–13,074 kbps / H.265: 2,179 kbps–13,074 kbps / MJPEG: 6,537 kbps–39,223 kbps
• Scene Self-adaptation (SSA) : Yes
• Gain Control : Manual; Auto
• Noise Reduction : 3D NR
• Region of Interest (RoI) : Yes, 3
• Image Tampering Prevention : Yes. Watermarks can be added to videos and images. The watermark can also be verified
• Bit Rate Control : CBR; VBR

Function

• Storage : Bult-in TF card port. Supports Kingston 16 G, 32 G, 128 G, 256 G; Dahua card 16 G, 32 G, 128 G, 256 G; SanDisk 16 G, 32 G, 128 G, 256 G
• Restricted List/Trusted List : Allowlist: 110,000 / Blocklist: 110,000
• IVS : Intrusion detection, loitering detection, up to 4 areas can be set.
• Basic Event : Alarms for events of defocus, no storage card, storage card no space, storage card error, network disconnection, IP conflict, and illegal access.
• Sound and Light Alarm : Yes, blue & red indicator, and supports broadcasting custom audio.
• Alarm Linkage : Upload to FTP/Memory card, notify monitoring center, send e-mail, trigger alert output, snapshot and active deterrence
• Capture Distance : 3 m–8 m
• Detected Width : 3 m–4 m
• Network
• Network Protocol : HTTP; Https; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; NTP; SFTP;DDNS; SNMP; PPPoE
• API : Yes
• SDK : Yes
• Interoperability : ONVIF (Profile S/Profile G/Profile T); CGI; ITSAPI; P2P
• Management Software : DSS Pro; DSS Express; Cybercity; Smart PSS
• Security : Username and password; MAC address; HTTPS; IEEE 802.1x; network access control
• Browser : Plug in : IE 9, 10, 11 / Chrome 52 and earlier versions / Firefox 42 and earlier versions / No plug in : Chrome 92 and later versions


• Image Encoding Format : JPEG
• Image Setting : Brightness; contrast; saturation; gamma; sharpness; gain; white balance
• Day/Night : IR filter, support three modes: color/B/W/auto
• WDR : 140 dB
• HLC : Yes
• BLC : Yes
• White Balance : Auto; Regional Custom; Manual; Outdoor; Natural; Street Lamp
• Digital Detail Enhancement (DDE) : Yes
• OSD Overlay : Supports overlay of time; address (position of channel), lane (number/direction), plate (number and color), vehicle (speed, color, type)

Audio

• Audio Port : Yes
• Built-in MIC : Yes; Pick-up distance: 3 m, Sampling Rate: 48 k.
• Built-in Speaker : Yes; Power: 2 W

Port

• Audio Output : 1 channel (RCA port)
• Network Port : RJ-45 (10/100/1000 self-adaptive Ethernet Port)
• Alarm Input : 2, optocoupler input (wet node on-off value: 5 V)
• Alarm Output : 2, relay output (2A 30 VDC/0.5A 125 VAC), which can connect to devices such as barriers
• RS-485 : 2 (half duplex,Transparent,DHRS,Push Data through Serial Port)
• Reset Button : Yes
• Wiegand : 1 channel, SHA-1 26 bit

Performance

• Maximum Number of Passed Vehicles : 10,000
• Max. Number of Connections : 10

Intelligence

• AI Recognition : Recognizes vehicle types, vehicle signs, vehicle color, vehicle plate, plate, vehicle without plate.
• Video Metadata : Displays the intelligent frame, plate and vehicle paths.
• Vehicle Brand : Recognizes 147 vehicle logos.
• Vehicle Color : Recognizes 12 colors: Grey, black, white, silver, blue, green, purple, red, orange, pink, brown, and yellow.
• Vehicle Type Recognition : Recognizes 9 vehicle types: Large Bus, Heavy Truck, Medium Truck, Sedan, Van, Light Truck, Medium Bus, SUV, MPV, Pickup
• Country and Region Supported by ANPR
• Baseline support : GCC (U.A.E., Saudi Arabia, Morocco, Oman, Iraq, Egypt, Jordan, Qatar, Kuwait, Bahrain, Lebanon) / Europe (Netherlands, France, Germany, Britain, Italy, Poland, Belgium, Bulgaria, Serbia, Slovakia, Spain, Denmark, Turkey, Israel, Czech Republic, Bosnia and Herzegovina, Switzerland, Austria, Hungary, Romania, Lithuania, Latvia, Sweden, Estonia, Portugal, Greece, Slovenia, Luxembourg, Palestine, Lebanon, Ireland, Finland, Norway, Croatia, North Macedonia) / Russian-speaking regions (Russia, Ukraine, Kyrgyzstan, Uzbekistan, Moldova, Lithuania, Latvia, Georgia, Azerbaijan, Turkmenistan) / SADC (Uruguay, Paraguay, Brazil, Argentina, Chile, Colombia, Peru, Ecuador, Guyana) / North America (United States, Canada)
• Capture Rate : In the recommended installation and lighting condition, the vehicle capture rate ≥ 99%
• Recognition Rate : In the recommended installation and lighting condition, the recognition rate for positive and departing vehicles≥ 96%; the recognition rate for European vehicle plates ≥ 98%

General

• Remote control : Yes
• Communication Band : 433 MHz; 868 MHz
• Remote Control Distance : 15 m (In an open, undisturbed environment)
• Power Supply : 12 VDC, 2 A and POE:802.3at,Type 2,Class 4,(44V to 57V), 0.455A to 0.351A,max.20W

Power Consumption

• Power consumption in different conditions : No lighting < 6 W / Lighting <12 W / Speaker and Red/Blue Light Warning on < 17 W
• Protection : IK10; IP67

Material

• Aluminum alloy body+Plastic
• Product Dimensions : 396.0 mm × 120.8 mm × 127.8 mm (L × W × H)
• Packaging Dimensions : 445.0 mm × 238.0 mm × 229.0 mm
• Net Weight : 2.3 kg
• Gross Weight : 3.2 kg
• Storage Humidity : –40 °C to +70 °C
• Storage Temperature : ≤ 95% (non-condensing)
• Operating Temperature : –30 °C to +65 °C
• Operating Humidity : 10%–90% (non-condensing)

Certifications

• CE-EMC; CE-LVD; CE-RED; FCC; FCC-ID
