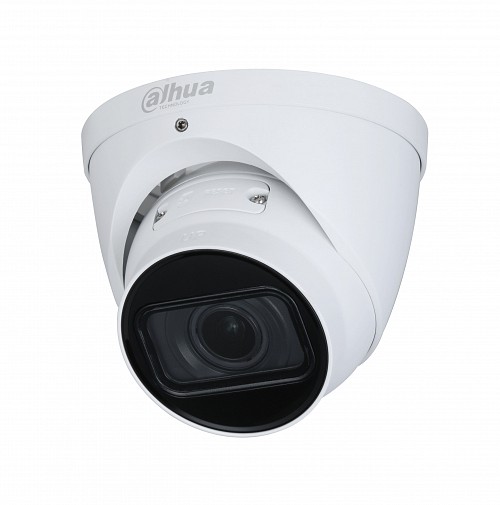

Dahua IP 2.0MP Dome Eyeball 2.7-13.5mm HDW2241T-ZS

Camera

• Image Sensor : 1/2.8" CMOS
• Max. Resolution : 1920 (H) × 1080 (V)
• ROM : 128 MB
• RAM : 128 MB
• Scanning System : Progressive
• Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination : 0.002 lux@F1.5 (Color, 30 IRE) / 0.0002 lux@F1.5 (B/W, 30 IRE) / 0 lux (Illuminator on)
• S/N Ratio : >56 dB
• Illumination Distance : 40 m (IR LED)
• Illuminator On/Off Control : Auto; Manual
• Illuminator Number : 2 (IR LED)

Lens

• Lens Type : Motorized vari-focal
• Lens Mount : φ14
• Focal Length : 2.7 mm–13.5 mm
• Max. Aperture : F1.5
• Field of View : H: 108°–30°; V: 56°–17°; D: 131°–35°
• Iris Control : Fixed
• Close Focus Distance : 0.8 m

Intelligence

• IVS (Perimeter Protection) : Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
• Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

• Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
• Smart Codec : Smart H.265+; Smart H.264+
• Video Frame Rate : Main stream: 1920 × 1080@(1–25/30 fps) / Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) / The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
• Stream Capability : 2 streams
• Resolution : 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control : CBR/VBR
• Video Bit Rate : H.264: 32 kbps–6144 kbps; / H.265: 12 kbps–6144 kbps
• Day/Night : Auto(ICR)/Color/B/W
• BLC : Yes
• HLC : Yes
• WDR : 120 dB
• White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control : Manual;Auto
• Noise Reduction : 3D NR
• Motion Detection : OFF/ON (4 areas, rectangular)
• Region of Interest (RoI) : Yes (4 areas)
• Smart Illumination : Yes
• Image Rotation : 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
• Mirror : Yes
• Privacy Masking : 4 areas

Audio

• Built-in MIC : Yes
• Audio Compression : G.711a; G.711Mu; G.726; PCM

Alarm

• Alarm Event : No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; external alarm (Only - ZAS supports); SMD; security exception

Network

• Network Port : RJ-45 (10/100 Base-T)
• SDK and API : Yes
• Network Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
• Interoperability : ONVIF (Profile S/Profile T); CGI; P2P; Milestone
• User/Host : 6 (Total bandwidth: 36 M)
• Storage : FTP; SFTP; Micro SD card (support max. 256 GB)
• Browser : IE / Chrome / Firefox
• Management Software : Smart PSS; DSS; DMSS
• Mobile Client : iOS; Android
• Cyber Security : Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Certifications

• CE-LVD:EN62368-1;
• CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU;
• FCC:47 CFR FCC Part 15, Subpart B

Power

• Power Supply : 12 VDC/PoE (802.3af)
• Power Consumption : Basic: 1.5W (12 VDC); 2.2W (PoE) / Max. (H.265+intelligence on +WDR +IR on): 5.7W (12 VDC); 6W (PoE)

Environment

• Operating Temperature : –30 °C to +60 °C
• Operating Humidity : ≤95%
• Storage Temperature : –40 °C to +60 °C
• Protection : IP67

Structure

• Casing Material : Metal
• Product Dimensions : 108.3 mm × Φ122 mm
• Net Weight : 0.86 kg
• Gross Weight : 0.69 kg
