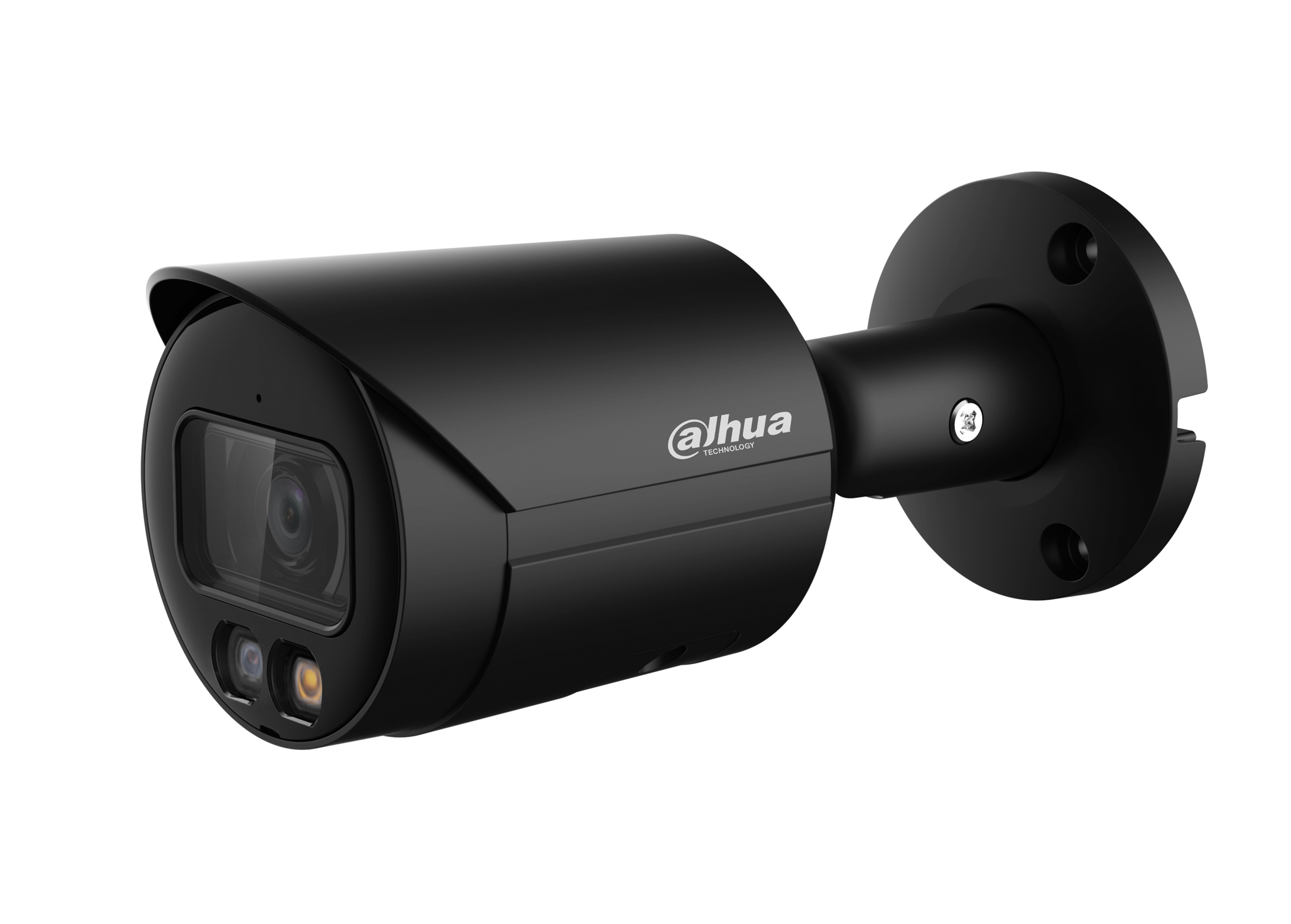

Dahua IP 5.0MP Bullet Smart Dual Light 2.8mm IPC-HFW2549S-S-IL-0280B-BLACK

Camera

• Image Sensor : 1/2.7" CMOS
• Max. Resolution : 2960 (H) × 1668 (V)
• ROM : 128 MB
• RAM : 256 MB
• Scanning System : Progressive
• Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination : 0.007 lux@F1.6 (Color, 30 IRE) / 0.0007 lux@F1.6 (B/W, 30 IRE) / 0 lux (Illuminator on)
• S/N Ratio : >56 dB
• Illumination Distance : 30 m (IR), 30 m (Warm light)
• Illuminator On/Off Control : Auto; manual
• Illuminator Number : 1 (IR LED),1 (Warm light)

Lens

• Lens Type : Fixed-focal
• Lens Mount : M12
• Focal Length : 2.8 mm
• Max. Aperture : F1.6
• Field of View : 2.8mm: H: 111°; V: 58°; D: 132°
• Iris Control : Fixed
• Close Focus Distance : 2.8 mm: 1.1 m

Intelligence

• IVS (Perimeter Protection) : Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
• Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

• Video Compression : H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
• Smart Codec : Smart H.265+; Smart H.264+
• Video Frame Rate : 2960 × 1668@(1–20 fps)/2688 × 1520@(1–25/30 fps) / sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) / The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
• Stream Capability : 2 streams
• Resolution : 2960 × 1668 (2960 × 1668); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control : CBR/VBR
• Video Bit Rate : H.264: 32 kbps–6144 kbps / H.265: 12 kbps–6144 kbps
• Day/Night : Auto (ICR)/Color/B/W
• BLC : Yes
• HLC : Yes
• WDR : 120 dB
• White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control : Auto; manual
• Noise Reduction : 3D NR
• Motion Detection : OFF/ON (4 areas, rectangular)
• Region of Interest (RoI) : Yes (4 areas)
• Image Rotation : 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
• Mirror : Yes
• Privacy Masking : 4 areas

Audio

• Built-in MIC : Yes
• Audio Compression : G.711a; G.711Mu; PCM; G.726

Alarm

• Alarm Event : No SD card; SD card full; SD card error; network disconnecton; IP conflict; illegal access; moton detecton; video tampering; tripwire; intrusion; SMD; voltage detecton; security excepton

Network

• Network Port : RJ-45 (10/100 Base-T)
• SDK and API : Yes
• Network Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
• Interoperability : ONVIF (Profile S/Profile T); CGI; P2P; Milestone
• User/Host : 6 (Total bandwidth: 36 M)
• Storage : FTP; SFTP; Micro SD card (support max. 256 GB)
• Browser : IE / Chrome / Firefox
• Management Software : DSS; DMSS
• Mobile Client : iOS; Android
• Cyber Security : Configuration encryption;Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Generation and importing of X.509 certification

Certification

• CE-LVD: EN62368-1
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
• FCC: 47 CFR FCC Part 15, Subpart B
• UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

• Power Supply : 12 VDC/PoE (802.3af)
• Power Consumption : Basic: 2.2 W (12 VDC); 2.9 W (PoE) / Max. (H.265 + intelligence on + WDR + warm light): 4.6 W (12 VDC); 5.4 W (PoE)

Environment

• Operating Temperature : –40 °C to +60 °C
• Operating Humidity : ≤95%
• Storage Temperature : –40 °C to +60 °C
• Protection : IP67

Structure

• Casing Material : Inner core: Metal / Cover: Plastic
• Product Dimensions : 100.9 mm × Φ109.9 mm
• Net Weight : 0.38 kg
• Gross Weight : 0.52 kg
