• Inverter Type: Hybrid
  • Power Rating: 8.8KW
  • Battery Type: Lithium-ion/LFP/Lead Acid
  • Phase: 3
  • Solar Panel input: 10400W
  • Number of MPPT: 2
  • Operating Modes: Grid-tie only/Hybrid/Off-grid/Battery only
  • IP Rating: IP65

SUNSYNK Hybrid Inverter Three Phase 8.8KW

Order Code: 25728
  • Inverter Type: Hybrid
  • Power Rating: 8.8KW
  • Battery Type: Lithium-ion/LFP/Lead Acid
  • Phase: 3
  • Solar Panel input: 10400W
  • Number of MPPT: 2
  • Operating Modes: Grid-tie only/Hybrid/Off-grid/Battery only
  • IP Rating: IP65
Stock Level: Out of stock
Price: €3549.00

​INTERACTIVE

  • Easy and straightforward to understand LCD display
  • Supporting Wi-Fi or GSM monitoring
  • Visual power flow screen
  • Built-in 2 strings for 1 MPP tracker and 1 string for 1 MPP tracker;
  • Smart settable 3-stage MPPT charging for optimised battery  performance
  • Auxiliary load function
  • Multi-inverter function: grid-tied and off-grid

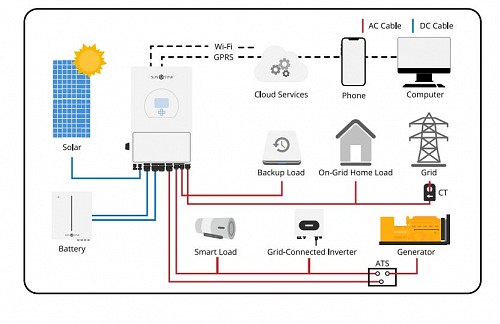

COMPATIBLE

  • Compatible with mains electrical grid voltages or power generators;
  • Compatible with wind turbines
  • 230V/400V Three-phase Pure Sine-wave Inverter
  • It can power up both single-phase and 3-phase loads
  • Self-consumption and feed-in to the grid
  • Auto restart while AC is recovering
  • Maximum charging/discharging current of  240A (12kW)
  • DC and AC coupled to retrofit existing solar system
  • Compatible with a 48V low-voltage battery

CONFIGURABLE

  • Fully programmable controller
  • Programmable supply priority for battery or grid
  • Programmable multiple operation modes: on-grid/off-grid & UPS
  • Configurable battery charging - current/voltage based on applications by LCD setting
  • Configurable AC / solar / generator charger priority by LCD setting
  • 6 time periods for battery charging/discharging

SECURE

  • Overload/over-temperature/short-circuit protection
  • Smart battery charger design for optimised battery protection
  • Limiting function installed to prevent excess power overflow to the grid
  • Isolation transformer design

APPLICATIONS

  • Marine (vessel power management)
  • Power shedding (home/office/factory)
  • UPS (fuel-saving systems)
  • Remote locations with solar and wind generators
  • Building sites
  • Telecommunication



Battery Input Data

  • Battery Type : Lead-acid or Li-Ion
  • Battery Voltage Range : 40Vd.c ~ 60Vd.c
  • Max. Charging/Discharging : 190Ad.c (max.)
  • Charging Curve : 3 Stages / Equalization
  • External Temperature Sensor : Yes
  • Charging Strategy for Li-Ion : Battery Self-adaption to BMS

PV String Input Data

  • Max. DC Input Power : 10400W
  • PV Input Voltage : 550Vd.c (160Vd.c ~ 800Vd.c)
  • MPPT Range : 200Vd.c ~ 650Vd.c
  • Start-up Voltage : 160V
  • PV Input Current  : 13Ad.c + 13Ad.c
  • Max. PV Isc : 17Ad.c + 17Ad.c
  • No. of MPPT Trackers : 2
  • No. of Strings Per MPPT Tracker : 1+1

AC Output Data

  • Rated AC Output and UPS Power : 8000W
  • Max. AC Output Power : 8800W
  • Peak Power(off grid) : 2 times of rated power, 10s
  • AC Output Rated Current : 12/11.6.4A
  • Max. AC Current : 13.4A 20/12.8A
  • Max. Three-phase Unbalanced Output Current : 18.2/17.4A
  • Max. Output Short Circuit Current : 75A
  • Max. Continuous AC Passthrough : 45A
  • Output Frequency and Voltage : 50/60Hz, 3L/N/PE 220/380, 230/400Vac (Three phase)
  • Grid Type : Three phase
  • Total Harmonic Distortion (THD) : <3% (of nominal power)
  • DC current injection : <0.5% ln

Efficiency

  • Max. Efficiency 97.60%
  • MPPT Efficiency >99%

Protection

  • PV Arc Fault Detection : Integrated
  • PV Input Lightning Protection : Integrated
  • Anti-islanding Protection : Integrated
  • PV String Input Reverse Polarity Protection : Integrated
  • Insulation Resistor Detection : Integrated
  • Residual Current Monitoring Unit : Integrated
  • Output Over Current Protection : Integrated
  • Output Shorted Protection : Integrated
  • Surge Protection : DC Type III / AC Type III
  • Over Voltage Category :  DC Type II / AC Type III


Certifications and Standards

  • Grid Regulation VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
  • EMC/Safety Regulation IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4

General Data

  • Operating Temperature Range : -40~60 ºC, >45 ºC Derating
  • Cooling Smart : cooling
  • Noise ≤45 dB
  • Communication with BMS : RS485; CAN
  • Weight : 34.5kg
  • Cabinet size : 422W×702H×281D (Excluding connectors and brackets)
  • Protection Degree : IP65
  • Installation Style : Wall-mounted
  • Warranty : 5 years
Datasheet User Manual
