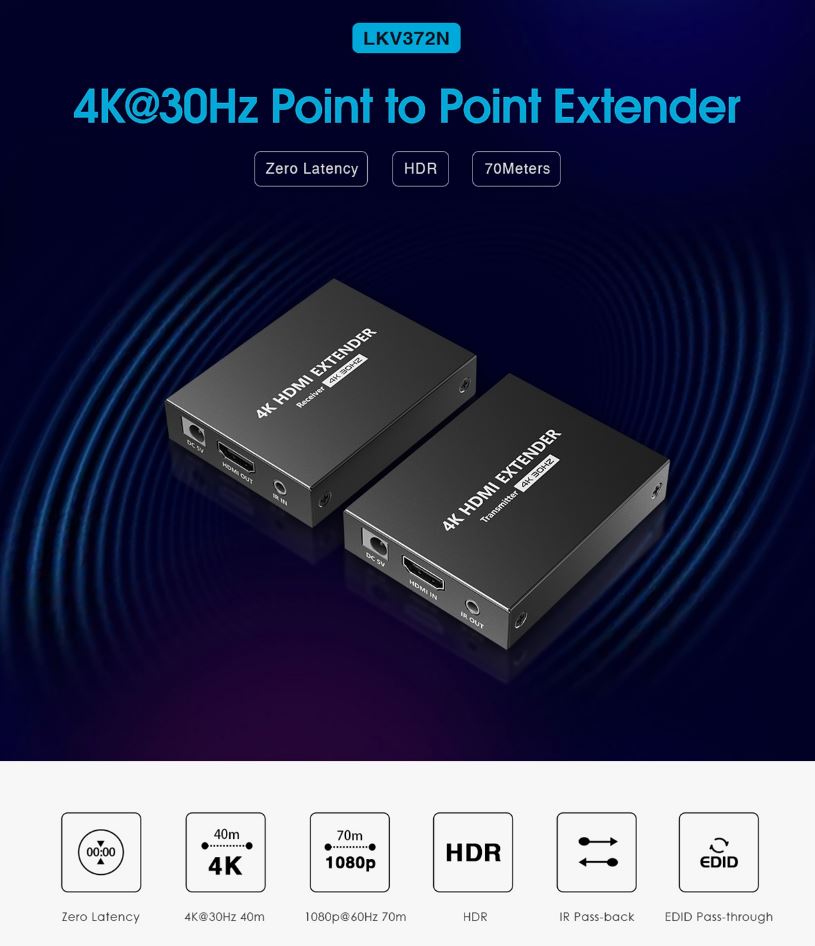

Lenkeng HDMI Extender over Ethernet 70m 1080p LKV372N

Order Code: 25778

Type: HDMI
Transmission: Single CAT6
Resolution: 4K30Hz
Distance: 70m
IR: Yes

Stock Level: GoodMore stock coming in 10 weeks

–

Price: €42.₀₀

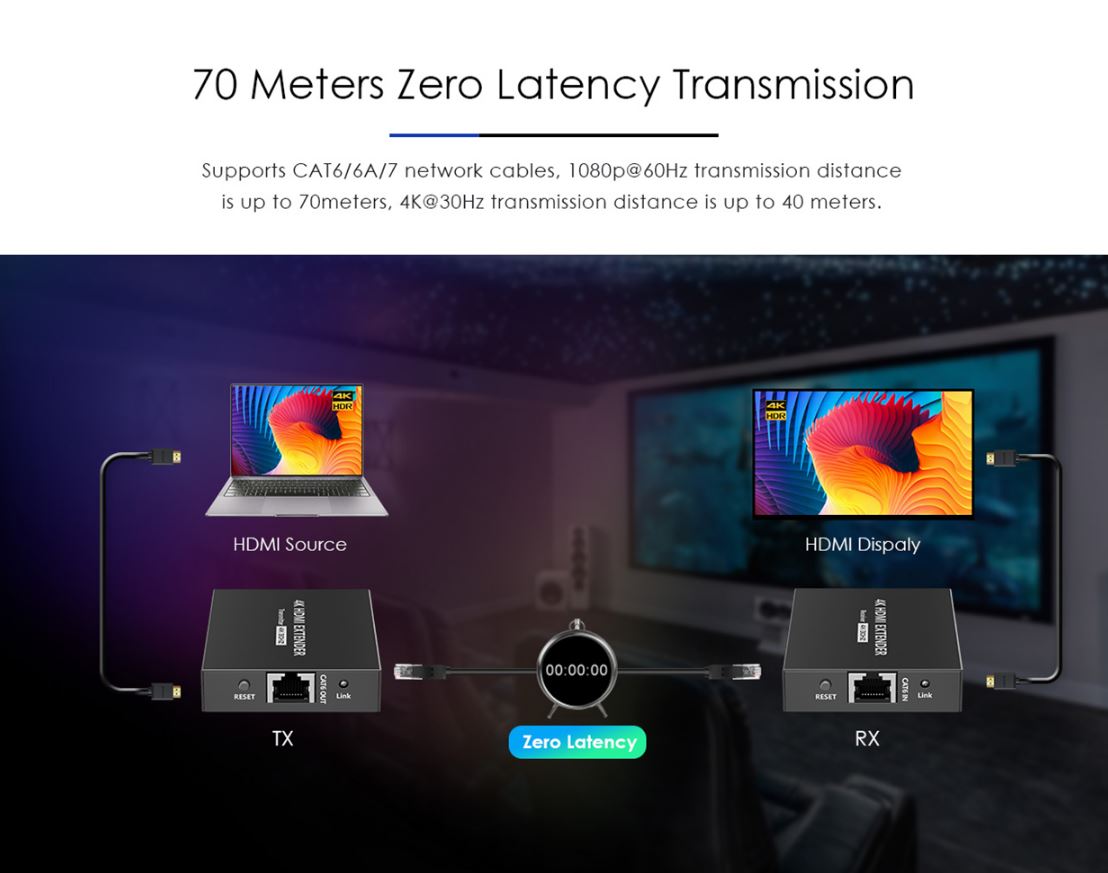

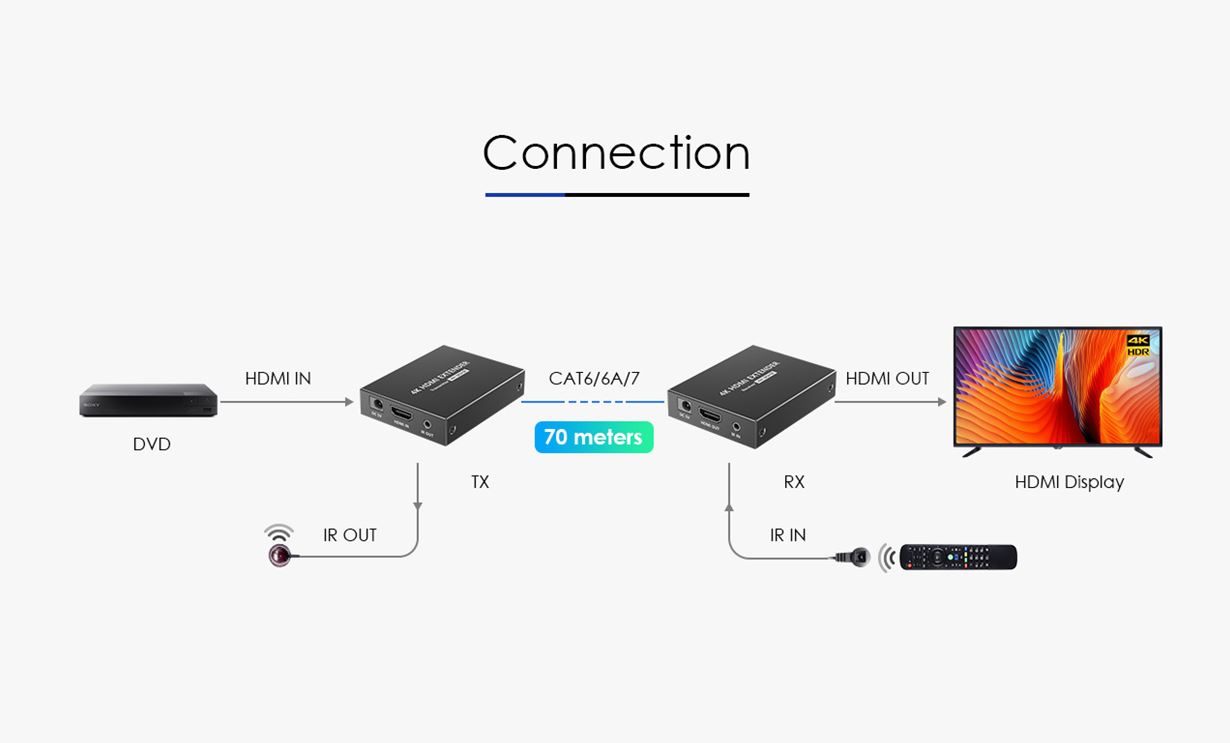

This HDMI Extender includes a transmitter unit and a receiver unit, allows the HDMI signal to be transmitted up to 70 meters at 1080p resolution using a Cat6/6A/7 network cable. It adopts a point-to-point connection configuration, supports IR pass-back. It is perfect for outdoor advertising, monitor system, home entertainment, conference, etc.

40 meters for 4K@30Hz signals
70 meters for 1080p@60Hz signals

Voltage/Current DC5V/500mA
Power consumption TX<1.5W； RX<1.5W
HDMI compliance HDMI 1.4
HDCP compliance HDCP 1.4
HDMI resolution 800x600、1024x768、1280x720、 1280x960、1366x768、1440x900、 1680x1050、1920x1080、480i@60Hz、 480p@60Hz、576i@50Hz、 576p@50Hz、720p@50/60Hz、 1080i@50/60Hz、 1080p@24/25/30/50/60Hz、 3840x2160@24/25/30Hz
Audio formats DTS、DTS-HD、PCM、LPCM
HDR Support
EDID through Support
IR Pass-back Frequency Range：20~60KHz
Input and output TMDS signal 0.7~1.2Vp-p(TMDS)
Input and output DDC signal 5Vp-p(TTL)
Cat6/6A/7 Transmission Distance 1080p@60Hz transmission 70 meters
4K@30Hz transmission 40 meters
Electrostatic protection of the whole machine Implementation of the standard:
IEC61000-4-2
1a Contact discharge level 2（±4KV）
1b Air discharge level 3 (±8KV)
Working temperature -20~60℃
Storage temperature -30~70℃
Humidity (no condensation) 0～90%RH
Dimension 75.0(L) x 60.0(W) x 16.5(H) mm
Weight TX:127g RX:127g
Color Black
