EcoFlow EV Power Pulse EvCharger 11kw

Order Code: 25878
Stock Level: Only 4 pieces left
Price: €769.00

Ultra-compact, high-performance EV Charger. Experience safety, speed, and seamless integration in a sleek package that fits into any part of your house. Power your journey, the EcoFlow way.

  • Ultra-Compact Design
  • 11kW Rapid Charge
  • Phase Switching Supported
  • Solar Charging via the PowerOcean System
  • Advanced Thermal Monitoring
  • Voltage: 230V (single phase), 400V (three phase)
  • Current: 16 A
  • Mains frequency: 50Hz
  • Firmware Features: Open platform with support for OCPP (Open Charge Point Protocol) 1.6J and MODBUS-RTU Over-the-air (OTA)  Firmware updates
  • Schedule Charging: Set charging current and time via EcoFlow app
  • Interaction: EcoFlow App
  • Dynamic Load Balancing: Adjust charging power dynamically based on household power

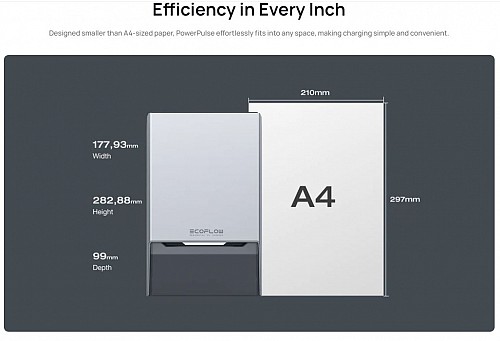

  • Dimensions (WxHxD): 178mm x 283mm x 99 mm (without cable)

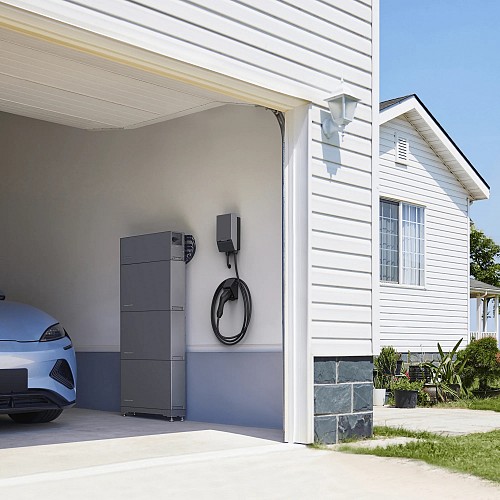

  • PV & PowerOcean Linkage Mode: Store, charge, and use solar power intelligently according to household power usage
  • Weight: 3.3 kg (with cable)
  • Safety Protection: Over-voltage, Under-voltage, Over Current, Over Temperature, Short-Circuit, Residual Current, Lightning
  • Cable: 5m Cable IEC 62196-2 Type 2
  • RCD Protection: 6mA DC, 30mA AC TYPE-A
  • Charger Bracket (WxHxD): 120mm x 172mm x 80mm
  • Connectivity: IEEE 802.11 b/g/n 2.4 GHz Wi-Fi / Bluetooth / RS485
  • Enclosure: IP65 rated for indoor and outdoor installation / IK08 rated
  • Compliance: EN IEC61851-1:2019, EN IEC61851-21-2:2021, EN300328 V2.2.2, EN300330 V2.1.1, EN301489-1 V2.2.3, EN301489-17 V3.2.4, EN301489-3 V2.3.2, EN IEC61000-6-1:2019, EN IEC61000-6-3:2021, EN IEC62311:2020, IEC62955:2018EN60529:1991+A1:2000+A2:2013, EN62196-1:2014, EN IEC62196-2:2022, EN50620:2017+A1:2019, EN61984:2009 EN60529:1991+A1:2000+A2:2013, 2011/65/EU+2015/863, 1907/2006, 1907/2006, 1907/2006, 2019/1021, 2012/19/EU, (EU) 2022/30, EN303645
  • LED Light: Colour LEDs to indicate charger status and fault condition on both the wall charger and the EV connector
  • Warranty : 36 months
Datasheet
