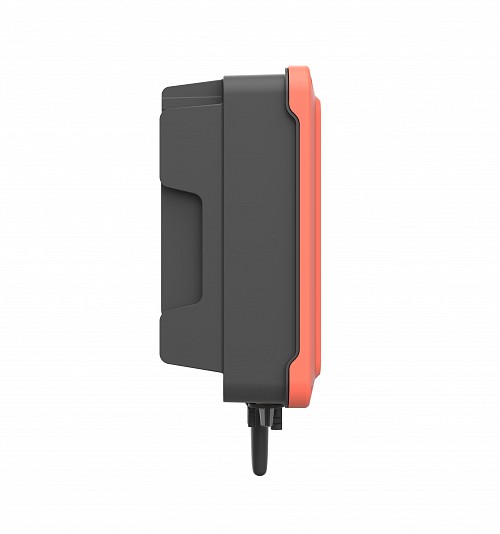

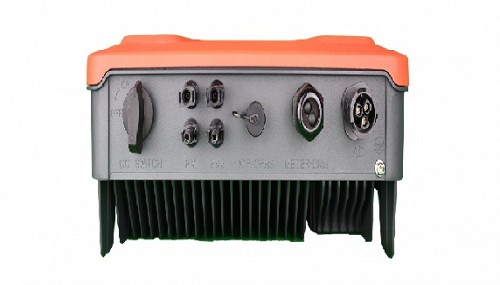

HYPONTECH OnGrid Inverter HPS-4000D Single Phase 4KW

HYPONTECH OnGrid Inverter HPS-4000D Single Phase 4KW

Order Code: 25923

Inverter Type: OnGrid
Power Rating: 4KW
Phase: 1
Solar Panel input: 4000W
Number of MPPT: 2
IP Rating: IP65

Stock Level: Good

–

Price: €699.₀₀

HPS-4000D Inverter 1 Phase 4KW

Peak Efficiency 98%
Max DC Overload 40%
Aluminum Alloy casting
MES-FCT-CRM Ifrastructure
Easy Installation and Service

HPS - 4000

PV Input

Max PV Power (W) : 6160
Max Input Voltage (V) : 600
MPPT Voltage Range (V) : 80-520
Start Up Voltage (V) : 70 V
Rated Input Voltage (V) : 360
Max Input Current (A) : 13
Max Short Circuit Current (A) : 20
No. of MPPTs : 2
No. of Strings Per MPPT : 1

AC Output

Rated Power (W) : 4000
Max. Apparent Power (VA) : 4400
Rated Grid Volatege (Vac) : 220/230/240
Grid Connection : L-N-PE
Rated Grid Frequency (Hz) : 50/60
Max Output current (A) : 20
Power Factor : 0.8 ind - 0.8 cap
THDi @Rated Power <3%

Efficiency

Max Efficiency : 97.9%
Euro Efficiency: 97.4%
MPPT Efficiency: 99.9%

Protection Function

Anti Islanding Proctection : Intergrated
PV String Onput Reverse Polarity Protection : Intergrated
Insulation Resistance Detection : Intergrated
Resudula Current Monitoring Unit : Intergrated
Output Over Current Protection : Intergrated
Output Short Circuit Protection : Intergrated
Over Voltage Protection : Intergrated
Surge Protection : DC Type II, SC Type II

General Data

Dimensions (W*H*D)(mm) : 395*328*154
Weght (Kg): 9.8
Noise Emission (Typical) dB(A) : 20
User Interface : LCD&LED
PV connection Type : MC4
AC Conection Type : Plug in connection
Communication : RS485/WIFI/4G/LAN
Colling Method : Natural Cooling
Operating Ambient Temperature (C) : -25 to +60
Relative Humidity (%) : 0 -100
Max Operating Altitude (m) : 3000
Protection Class : IP65
Climatic Category (IEC 60721-3-4) : 4K4H
Topology : Tranformerless
Night Consumption (W) : <1
