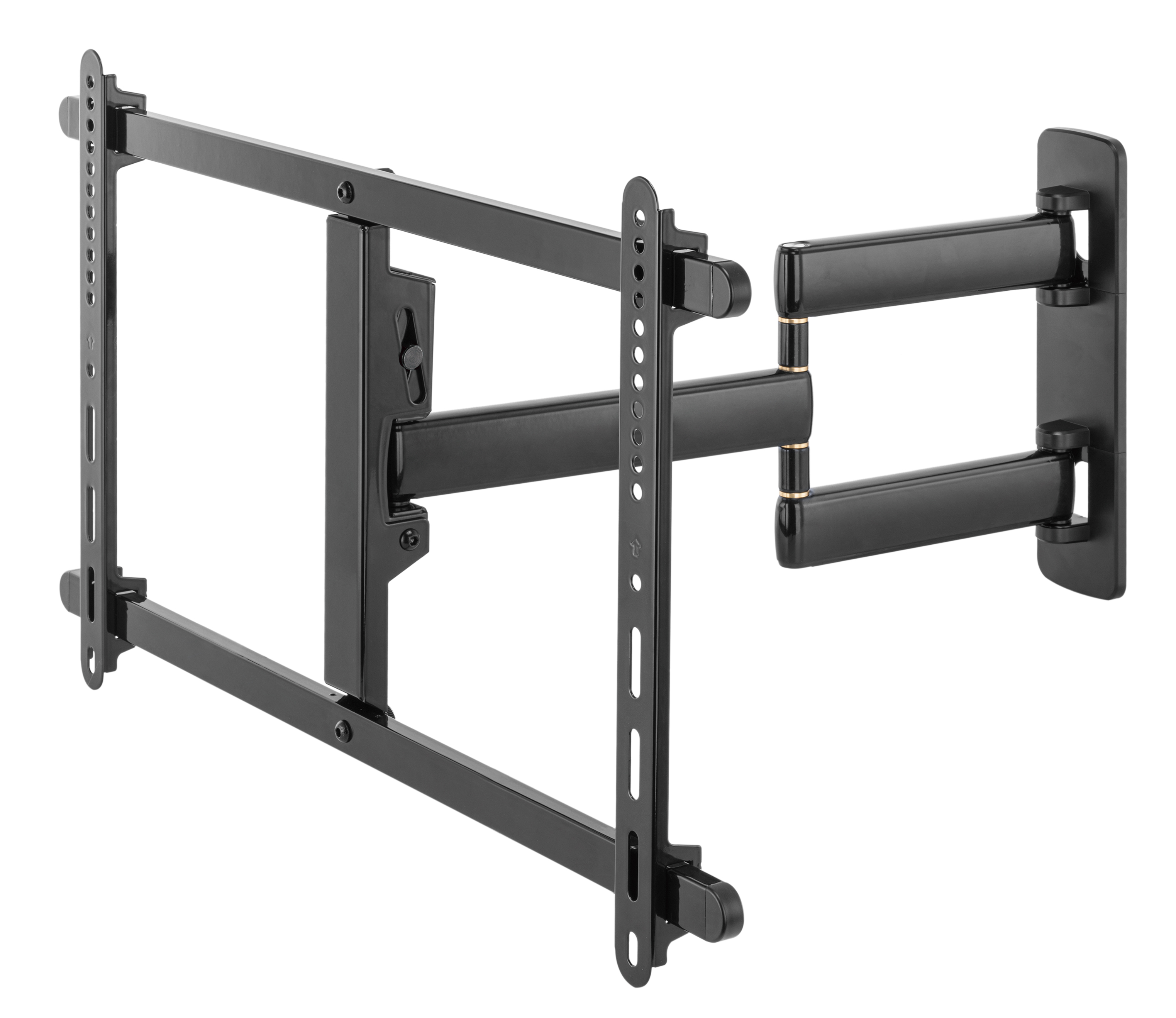

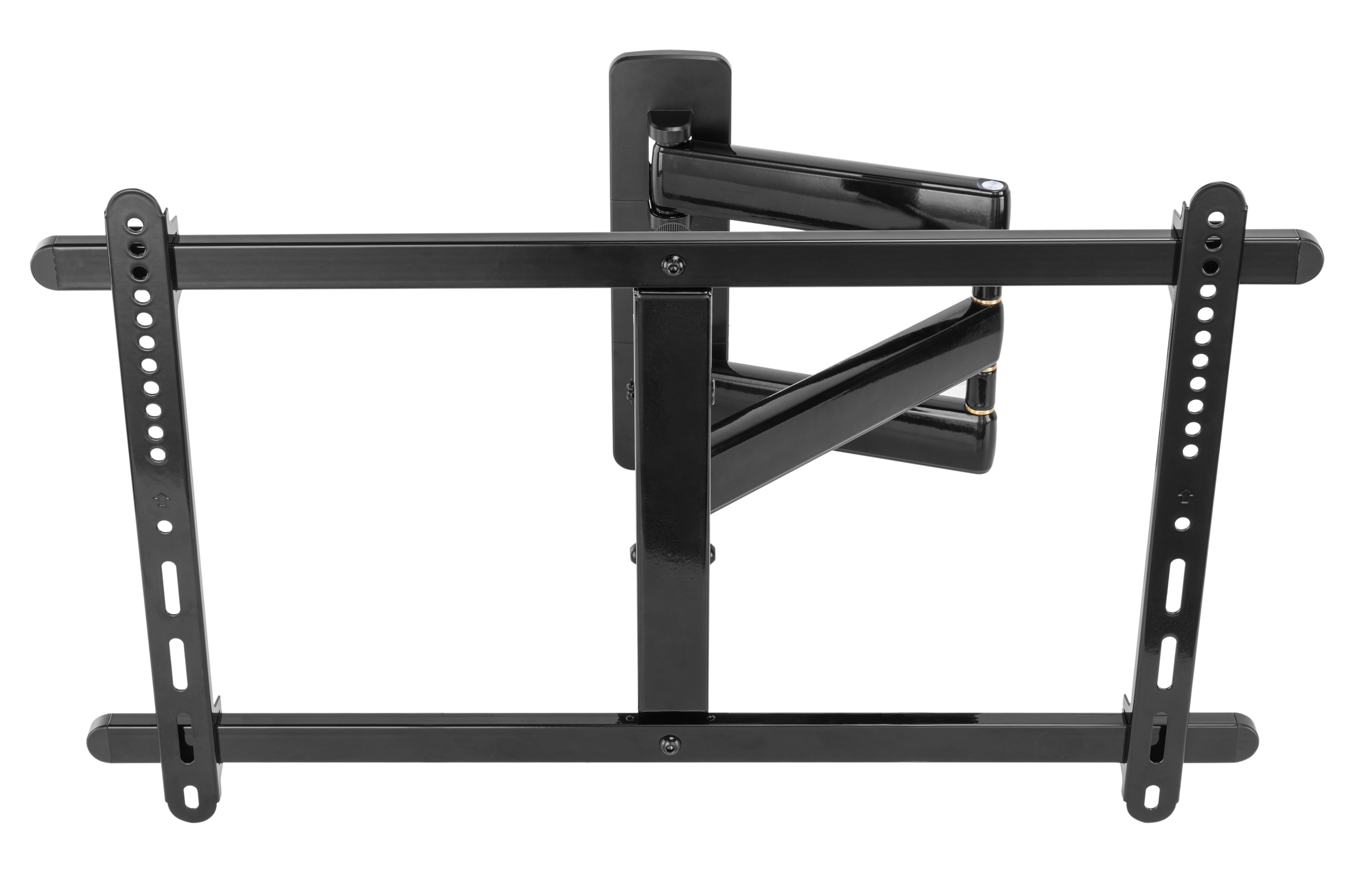

Product Category: Full-motion TV Wall Mount
Rank: Premium
Material: Aluminum,Steel,Plastic
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=2mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,VESA Panel THK=0.079" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet)
Surface Finish: Powder Coating,Electroplating
Color: Gloss Black,Fine Texture White
Color(accessory): Gloss Black,Fine Texture White
Dimensions: 590x730x445mm (23.2"x28.7"x17.5")
Fit Screen Size: 37"-80"
Fit Curved TV: Yes
Mounting Hole Pattern: VESA & Universal
VESA Compatible: 200x200,200x300,300x200,200x400,400x200,300x300,300x400,400x300,
400x400,600x400
Max. Mounting Hole: 600x407
Weight Capacity: 50kg (110lbs)
Strength Tested: 3 Times Approved
Profile: 59~590mm (2.3"~23.2")
Tilt Range: +5~-10°
Swivel Range: +90°~-90°
Screen Level: +2°~-2°
Screen Freely Tilting: No
Installation: Solid Wall,Single Stud
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Direction Indicator: Yes

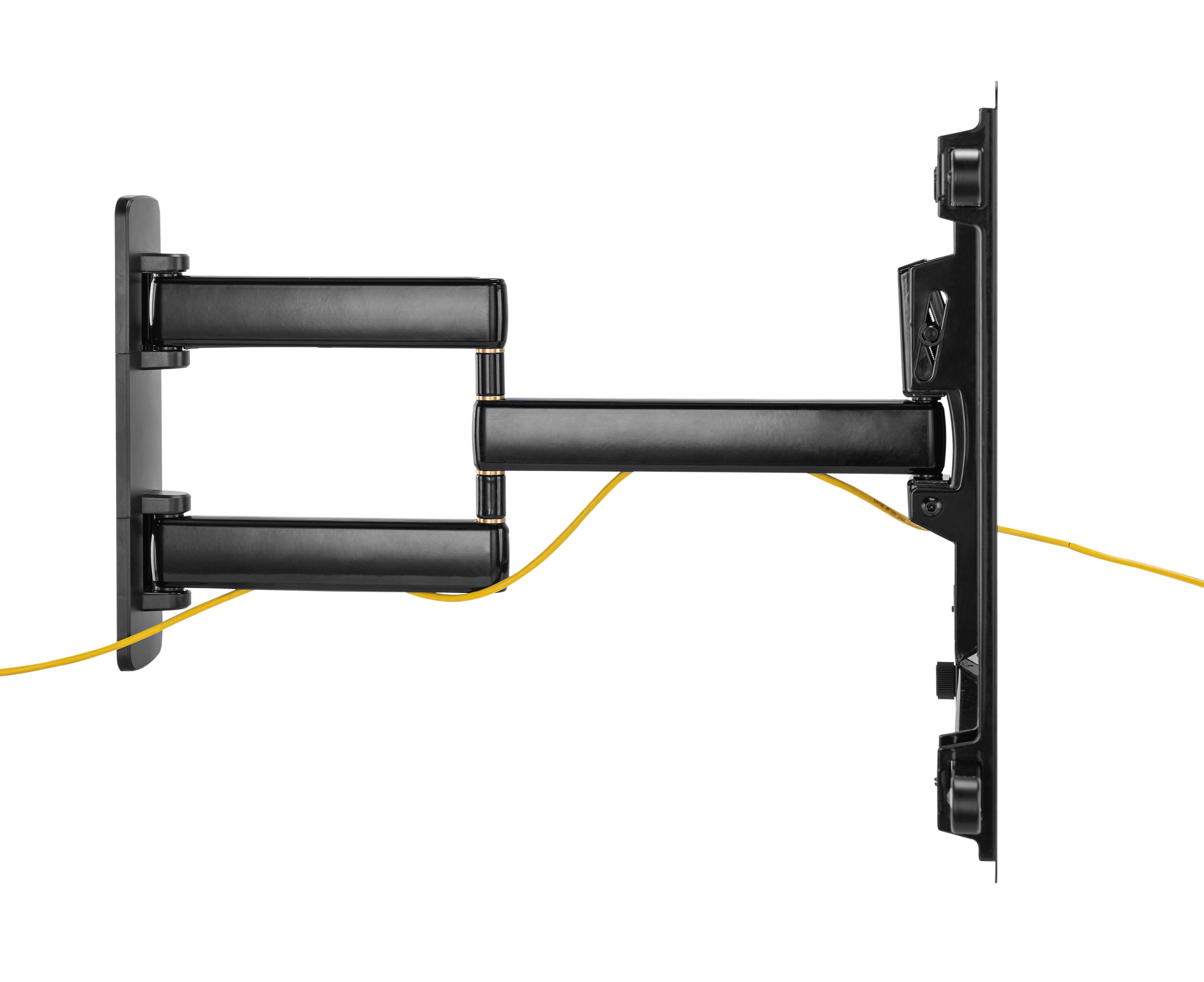

Cable Management: Yes
Anti-theft: No
Bubble Level: No
Accessory Kit Package: Compartment Polybag
