Video & Audio
- Image Sensor : 1/2.8"CMOS sensor
- Resolution : 3840 x 2160 (8 megapixels) @20fps
- Lens : f=2.7-13.5mm, Max: F1.6
- Video Compression : H.265
- Zoom : 5X optical zoom
- Field of View : Horizontal: 100°- 31° Vertical: 55°- 17° Diagonal: 123°-39°
- Infrared Night Vision : Up to 30 meters (100ft); LED:4pcs/2.8W/850nm (Auto-switching with IR-cut filter)
- Color Night Vision : With spotlights: 2pcs/3.2W/6000K
- Frame Rate : Main stream: 2fps - 20fps (default: 15fps) Sub stream: 4fps - 15fps (default: 10fps)
- Code Rate : Main stream: 1024Kbps - 6144Kbps (default: 4096Kbps) Sub stream: 64Kbps - 512Kbps (default: 256Kbps)
- Audio : Two-way audio
Power Requirements
- DC Power : DC 12.0V⎓1A, <12W
Interface
- Power Port : DC power port
- Ethernet Port : One 10M/100Mbps; RJ45
- SD Card Slot : Supports Max. 256GB microSD card
- Reset Button : YES
- Audio In/Out : Built-in microphone and speaker
Wi-Fi
- Wireless Standard : IEEE 802.11 a/ac/b/g/n
- Operating Frequency : 2.4GHz/5GHz
- Wireless Security : WPA/WPA2
Software
- Browsers Supported : Edge, Chrome, Firefox, Safari
- OS Supported ; PC: Windows, Mac OS; Smartphone: iOS, Android
- Protocols & Standards : HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
- User Access : Max. 20 users (1 admin & 19 user); Max. 12 simultaneous streams (2 main & 10 sub streams)
Other Feature
- Smart Alarm : Motion detection; person detection; vehicle detection; animal detection
- Recording Modes : Motion-triggered recording (default); Scheduled recording, 24/7 recording
- Time Lapse : YES

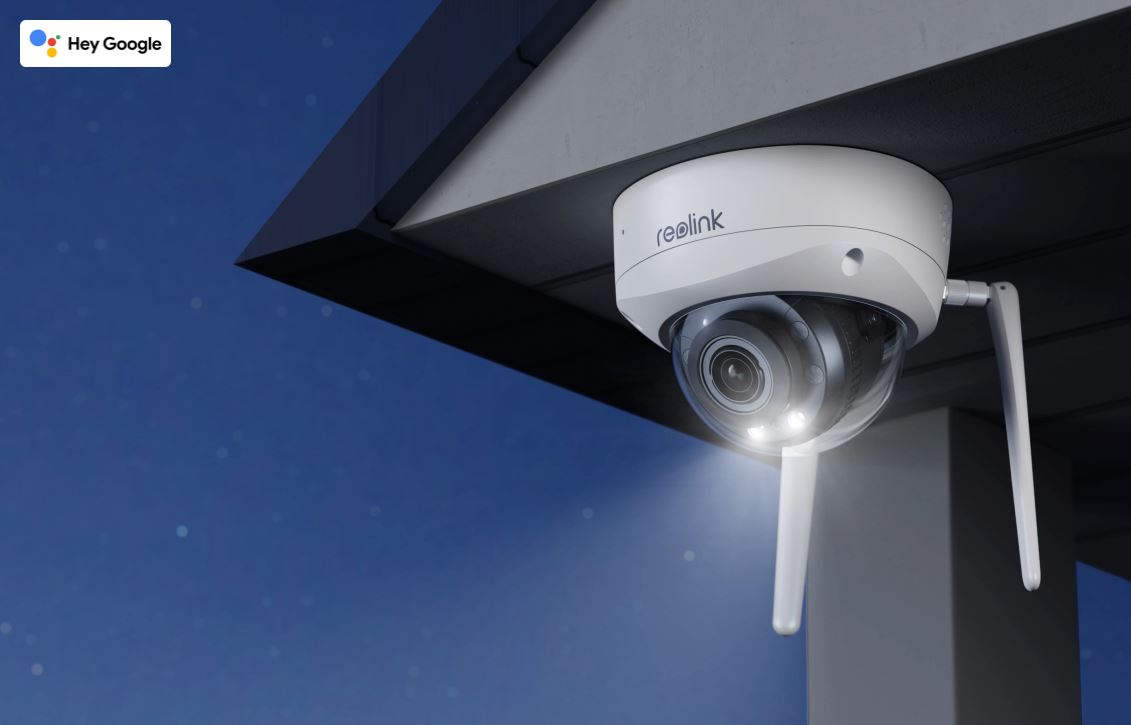

- Smart Home Compatibility : Google Assistant
Working Environment
- Operating Temperature : -10°C~+55°C (14°F~131°F)
- Operating Humidity : 10% ~ 90%
- Weatherproof : IP67
Mechanical
Dimensions : 132.7 x 98.3mm
