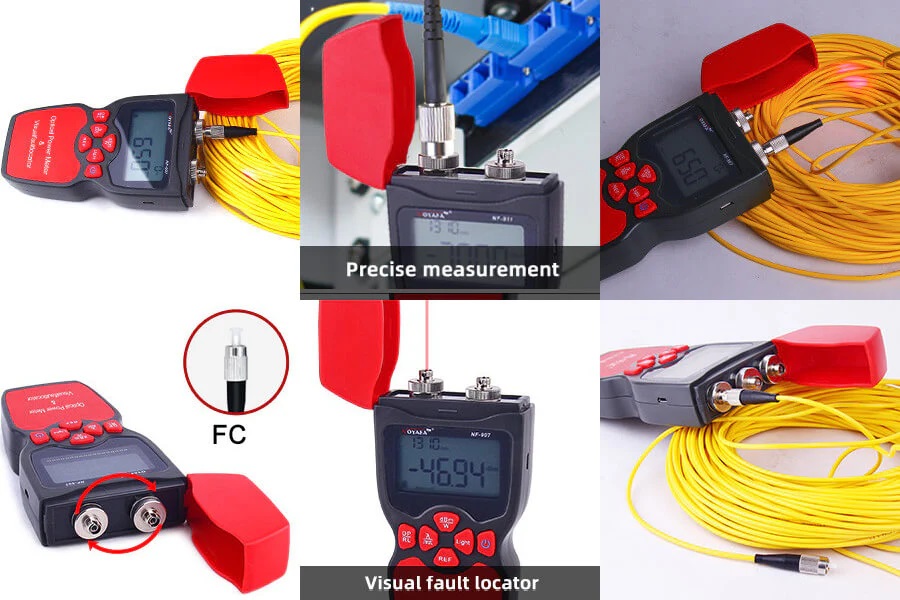

Noyafa Fiber Optic Multimeter with Power Meter, Light Source & Visual Fault Locator NF-911C
  1. Noyafa Fiber Optic Multimeter with Power Meter, Light Source & Visual Fault Locator NF-911C
  2. Noyafa Fiber Optic Multimeter with Power Meter, Light Source & Visual Fault Locator NF-911C
  3. Noyafa Fiber Optic Multimeter with Power Meter, Light Source & Visual Fault Locator NF-911C
  4. Noyafa Fiber Optic Multimeter with Power Meter, Light Source & Visual Fault Locator NF-911C
  5. Noyafa Fiber Optic Multimeter with Power Meter, Light Source & Visual Fault Locator NF-911C
  6. Noyafa Fiber Optic Multimeter with Power Meter, Light Source & Visual Fault Locator NF-911C
Noyafa

Noyafa Fiber Optic Multimeter with Power Meter, Light Source & Visual Fault Locator NF-911C

Order Code: 26276


Stock Level: Only 2 pieces left

 –

Price: €115.00
  • Measurement of the power of the optical sender (dBm and W).
  • Insertion loss test of optical devices.
  • Light source function.
  • Check fiber breakage, winding,ect.
  • New REF user-defined.

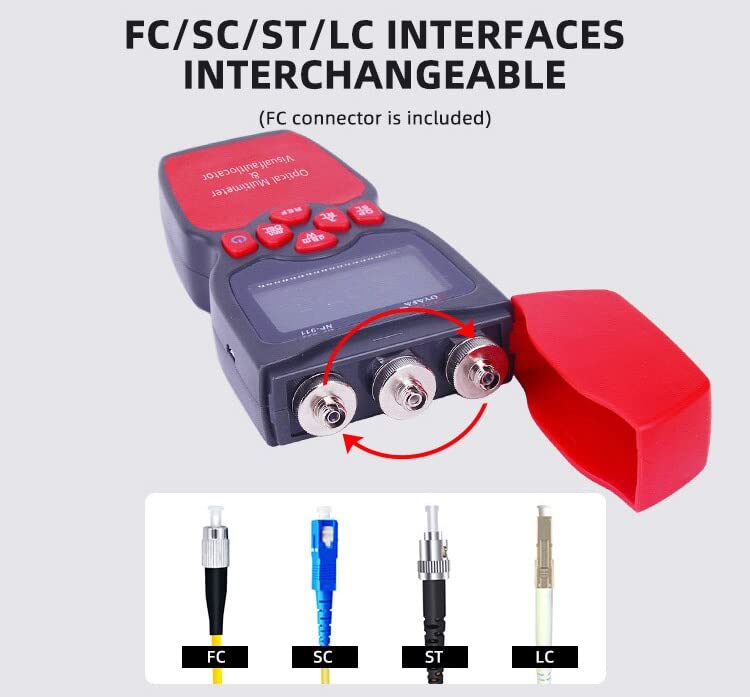

  • FC/SC/ST general-purpose interface.

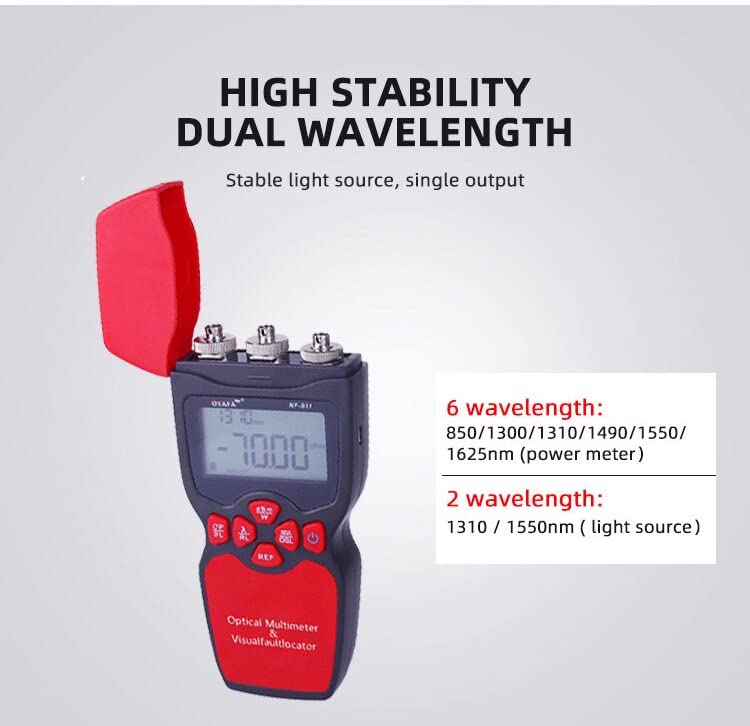

  • Wavelength: 1310/1490/1550/ 1625nm (power meter).
  • Wavelength:1310 / 1550nm( light source).
  • Certification. Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard.
  • 100% Affordable. Manufactured in China and a lot cheaper than competitor products with similar quality.

Power meter

  • Power detecting range(dBm): -50 ~ +26
  • Wavelenth (nm): 800-1700
  • Probe: InGaAs
  • Detection limit: ∮1.0mm
  • Standard wavelenth: 1310, 1490, 1550, 1625nm
  • Display resolution: 0.01dBm

Light source

  • Modulation frequencies: CW/270Hz,1Hz,2Hz
  • Standard wavelenth: 1310, 1550nm
  • Emitter type: FP-LD

VFL

  • Emmiting Energy: 5mw/ 10mw/ 20mw/ 30mw selectable
  • Standard wavelenth: 650±10nm
  • Working temp: -20 ~ +70℃
  • Power supply: 1.5V*3pcs
  • Overall dimension: 160x75x32mm
Send us your questions about the product.

See Also

  1. Kuwes Replacement Blade for TL6 & TL7S
    Kuwes Replacement Blade for TL6 & TL7S
    Order code: 26024
    Price
    €3.00
    In stock
    Add to cart
  2. Noyafa Network Tester & Tracker with PoE, Cable Length, Port Flashing, NCV & Rechargeable Battery NF-8209S
    Noyafa Network Tester & Tracker with PoE, Cable Length, Port Flashing, NCV & Rechargeable Battery NF-8209S
    Order code: 24662
    Price
    €76.00
    In stock
    Add to cart
  3. Proskit Crimping Tool Modular CP-373
    Proskit Crimping Tool Modular CP-373
    Order code: 25556
    Price
    €9.99
    In stock
    Add to cart
  4. Noyafa NF-8601W Rechargeable Network Tester/Scanner with LCD Screen
    Noyafa NF-8601W Rechargeable Network Tester/Scanner with LCD Screen
    Order code: 21619
    Price
    €189.00
    Out of stock
    Add to cart
  5. Noyafa Multi-Function Cable Tester with PoE, Ping, TDR Length Measurement, Port Flashing & NCV for RJ45, RJ11, BNC, CAT7 NF-8601S
    Noyafa Multi-Function Cable Tester with PoE, Ping, TDR Length Measurement, Port Flashing & NCV for RJ45, RJ11, BNC, CAT7 NF-8601S
    Order code: 27563
    Price
    €189.00
    In stock
    Add to cart
  6. Lanberg NT-0001 Insertion Punch Down Tool
    Lanberg NT-0001 Insertion Punch Down Tool
    Order code: 21679
    Price
    €6.49
    In stock
    Add to cart
  7. Noyafa Network Tester with LCD, Toner, Continuity, Cable Length, PoE, Port Blink & Voltage Detection NF-8209
    Noyafa Network Tester with LCD, Toner, Continuity, Cable Length, PoE, Port Blink & Voltage Detection NF-8209
    Order code: 21617
    Price
    €69.00
    In stock
    Add to cart

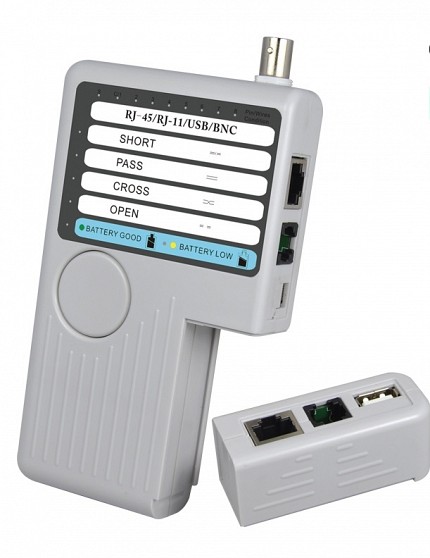

  8. Noyafa Network Cable Tester 4-In-1 for USB, BNC, RJ11 and RJ45 Connections NF-3468
