Type

• 8 MP/2.8 mm
• Resolution up to 3840 × 2160 px
• Frame rate up to 20 FPS
• Viewing angle from 100° to 110°

Videostream

• Video protocol : JetSparrow / Fast and encrypted peer-to-peer video protocol developed by Ajax Systems
• Storage : NVR / Hard drive with a capacity of up to 16 TB (SATA connectivity, 3.5” size). Memory storage device not included
• microSD : Up to 256 GB. Memory storage device not included
• Video codecs : H.265 / H.264
• Dynamic range : True WDR

Communication channel

• Ethernet : up to 100 Mbps

Key features

• Motion detection : The camera has software to detect motion in the frame.
• Object detection : using AI / Humans / Pets / Vehicles
• Smart IR illumination : up to 35 m / Automatic adjustment of intensity in real time to avoid overexposure. This allows you to see objects that are far away or too close to the camera in low light conditions
• Visual verification of Ajax alarms : The system allows you to set up a scenario when Ajax detectors activate selected cameras to start recording. The result is immediately sent to the mobile or desktop monitoring app
• Microphone : With the corresponding settings, the camera records sound at the object
• Audio codec : G711-ULAW / G711-ALAW / G726 / G722

Power supply

• Power supply unit : 12 V⎓ ± 20%, 1 А / Up to 15 W of mains power consumption.
• Ethernet port : PoE Standard 802.3at

Sabotage protection

• mTLS : Encrypted connection for data protection
• Authentication : via Cloud / Without local access rights
• Secure Boot : Protection against firmware spoofing
• OTA signature verification : Secure automatic firmware update
• Privacy : Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop

Enclosure

• Dimensions : 103 × 98 × 98 mm
• Weight : 496 g
• Operating temperature range : from −30 °C to +60 °C
• Operating humidity : up to 90%
• Protection class : IP65, IK08

Complete set

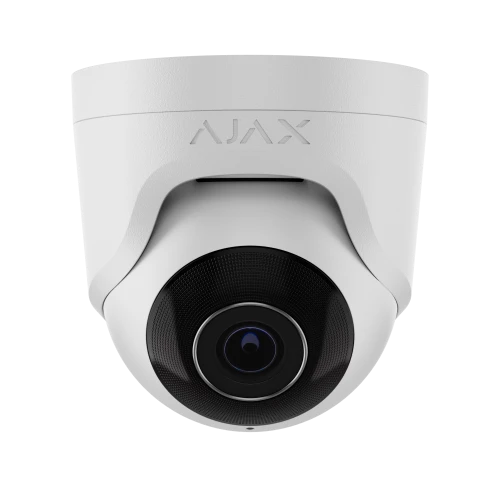

• TurretCam (8 Mp/2.8 mm)
• Installation template
• Installation kit
• Quick start guide
