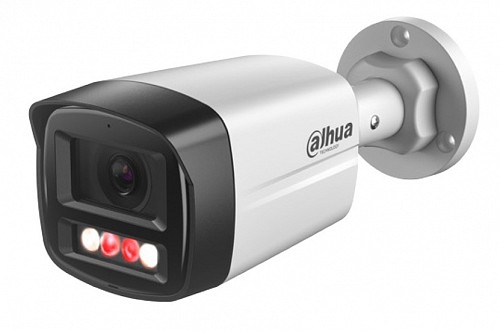

Dahua IP 2.0MP Bullet 2.8mm Dual Illumination WDR HFW1239V-A-IL

Camera

• Image Sensor : 1/2.8" CMOS
• Max. Resolution : 1920 (H) × 1080 (V)
• ROM : 128 MB
• RAM : 128 MB
• Scanning System : Progressive
• Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination : 0.005 lux@F1.6 (Color,30 IRE) / 0.0005 lux@F1.6 (B/W,30 IRE) / 0 lux (Illuminator on)
• S/N Ratio : >56 dB
• Illumination Distance : Up to 30 m  (IR LED) / Up to 30 m  (Warm light)
• Illuminator On/Off Control : Auto;Manual
• Illuminator Number : 1 (IR LED); 1 (Warm light)

Lens

• Lens Type : Fixed-focal
• Lens Mount : M12
• Focal Length : 2.8 mm;3.6 mm
• Max. Aperture : F1.6
• Field of View : 2.8 mm: H: 104°; V: 55°; D: 124° / 3.6 mm: H: 88°; V: 44°; D: 105°
• Iris Control : Fixed
• Close Focus Distance : 2.8 mm: 0.8 m (2.62 ft) / 3.6 mm: 1.3 m (4.27 ft)

Intelligence

• Human Detection : Support the classification and accurate detection of human
• Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

• Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
• Smart Codec : Smart H.265+; Smart H.264+
• Video Frame Rate : Main stream: 1920 × 1080@(1–25/30 fps) / Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
• Stream Capability : 2 streams
• Resolution : 1080p (1920 ×1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control : CBR/VBR
• Video Bit Rate : H.264: 32 kbps–4096 kbps / H.265: 12 kbps–4096 kbps
• Day/Night : Auto(ICR)/Color/B/W
• BLC : Yes
• HLC : Yes
• WDR : DWDR
• White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control : Auto;Manual
• Noise Reduction : 3D NR
• Motion Detection : OFF/ON (4 areas, rectangular)
• Region of Interest (RoI) : Yes (4 areas)
• Smart Illumination : Yes
• Image Rotation : 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
• Mirror : Yes
• Privacy Masking : 4 areas

Audio

• Built-in MIC : Yes, built-in Mic
• Audio Compression : G.711a; G.711Mu; PCM; G.726

Alarm

•  Alarm Event : Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception

Network

• Network Port : RJ-45 (10/100 Base-T)
• SDK and API : Yes
• Network Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
• Interoperability : ONVIF (Profile S; Profile T); CGI
• User/Host : 6 (Total bandwidth: 24 M)
• Storage : FTP
• Browser : IE; Chrome; Firefox
• Management Software : Smart PSS Lite; DSS; DMSS
• Mobile Client : iOS;Android
• Cyber Security : Configuration encryption;trusted execution;Digest;security logs;HTTPS;trusted upgrade;WSSE;trusted boot;account lockout;generation and importing of X.509 certification;video encryption

Certification

• CE-LVD: EN62368-1
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power

• Power Supply : 12 VDC/PoE (802.3af)
• Power Consumption : Basic: 1.8 W (12 VDC); 2.3 W (PoE) / Max. (H.265 + intelligence on+ WDR + illuminator intensity): 4.5 W (12 VDC); 5.6 W (PoE)

Environment

• Operating Temperature : –40 °C to +60 °C
• Operating Humidity : ≤95%
• Storage Temperature : –40 °C to +60 °C
• Storage Humidity : ≤95%
• Protection : IP67

Structure

•  Casing Material : Metal+plastic
• Product Dimensions : 197.9 mm × 80.2 mm × 76.2 mm
• Net Weight : 0.31 kg
• Gross Weight : 0.45 kg
