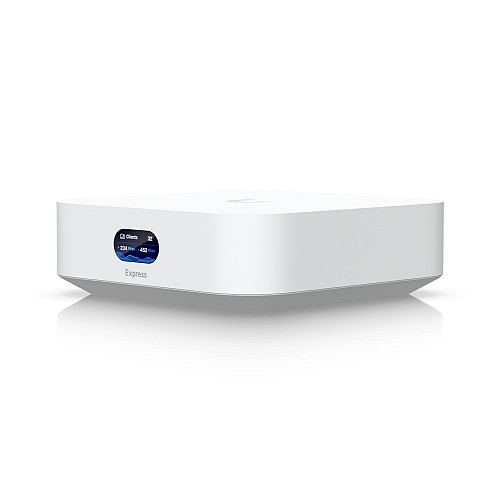

The new UniFi Express is Ubiquiti’s most ambitious attempt yet to bring its networking solution to the masses.This product has two main features that instantly make it an eye-catching option for the price. It’s exactly what people think of when they hear the words Wi-Fi router – combining both the access point and routing features into a single piece of hardware.
It has a 2×2 Wi-Fi 6 radio inside as well as a router able to handle 5 connected devices simultaneously. The access point is rated for 1,500 square feet of coverage, with mesh capabilities allowing for expanded coverage. It even has a small 0.96-inch display on the front for showing off usage stats.
- Built-in WiF6 (2x2 MIMO)
- 140 m (1,500 ft) single-unit coverage
- 60+ connected WiFi devices
- (1) GbE RJ45 WAN port
- (1) GbE RJ45 LAN port to extend network

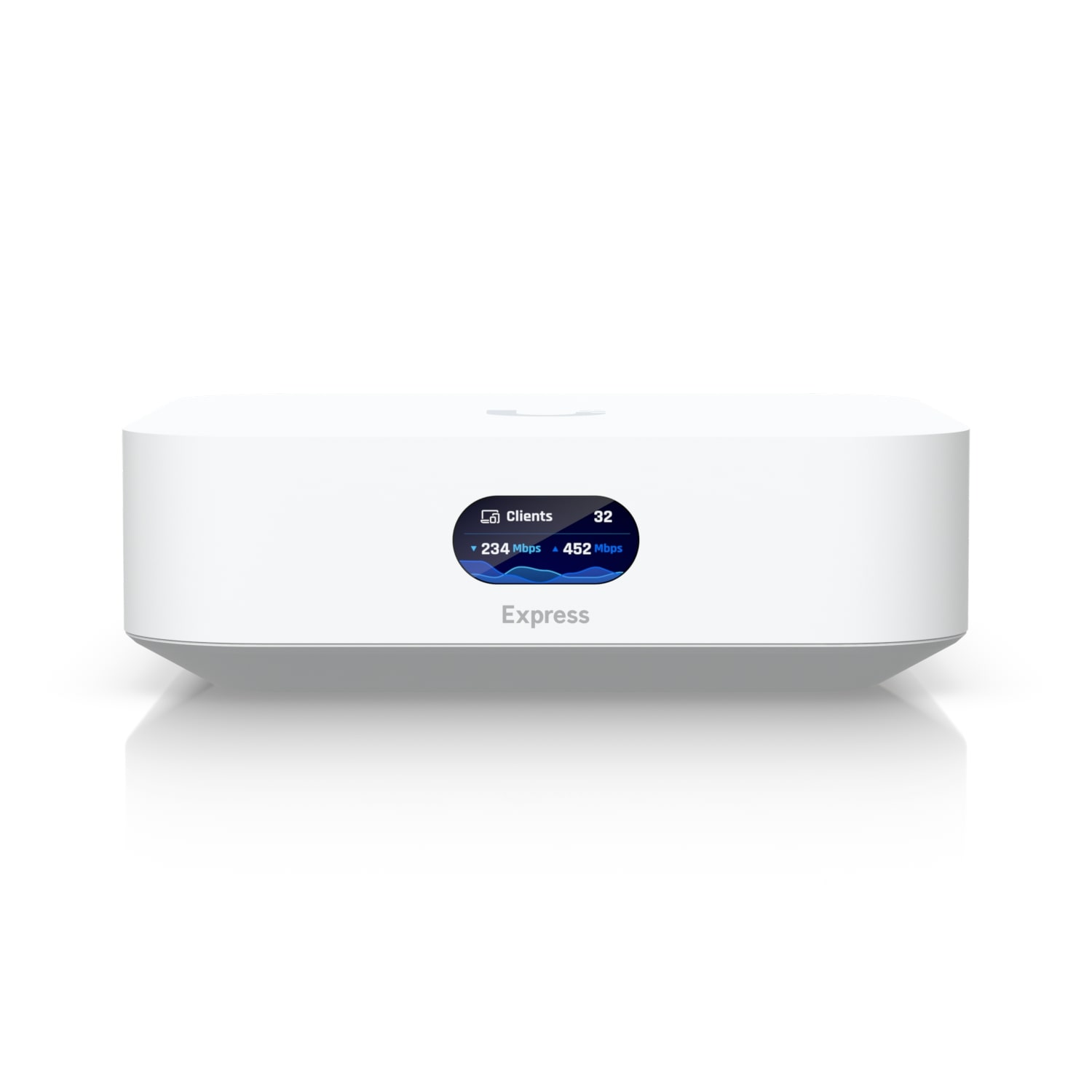

- 0.96" LCM status display
Mechanical
- Dimensions 98 x 98 x 30 mm (3.6 x 3.6 x 1.2")
- Weight 302 g (10.7 oz)
- Enclosure material Polycarbonate
Hardware
- Management interface Ethernet
- Bluetooth

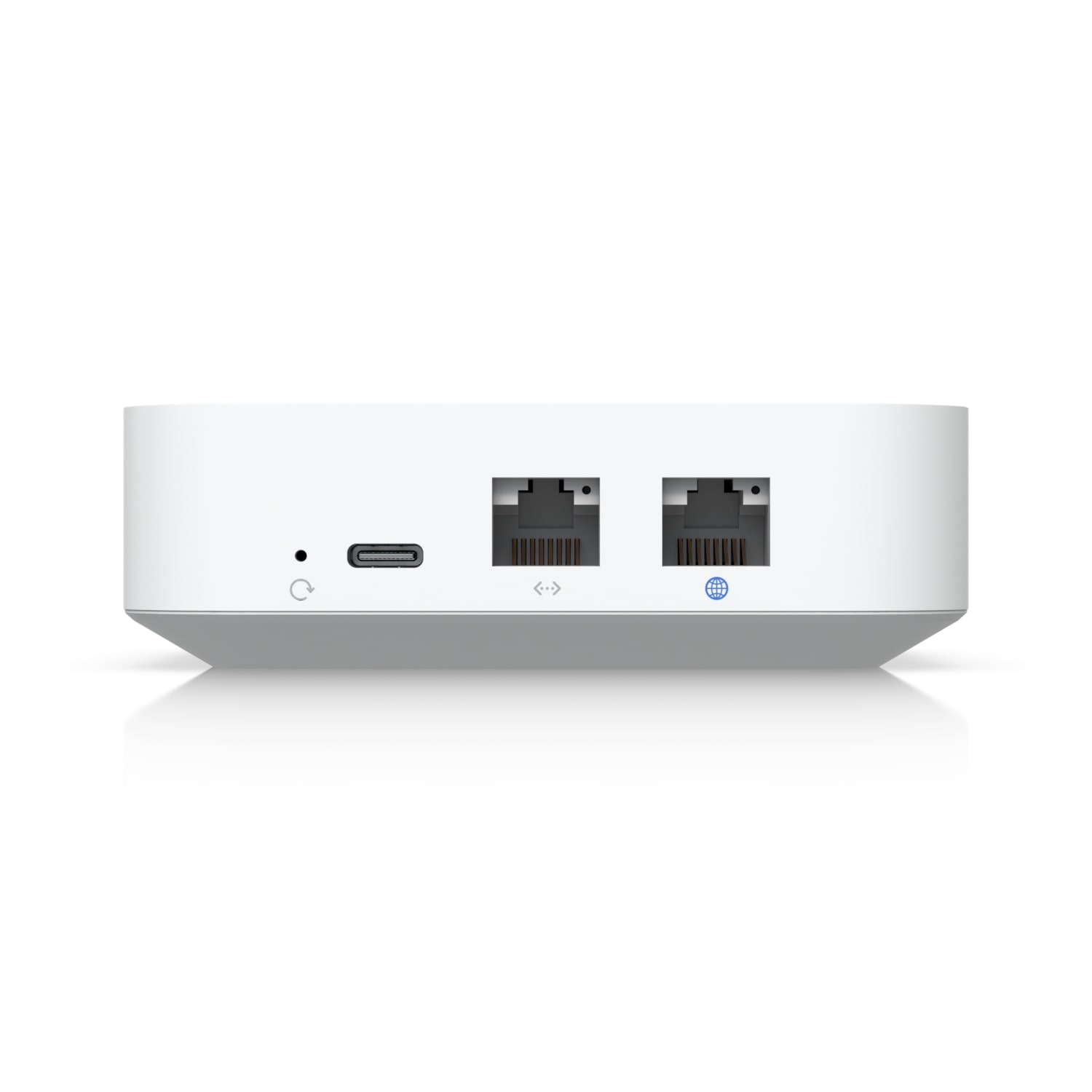

- Networking interface LAN:(1) GbE RJ45 port- WAN: (1) GbE RJ45 port
- Power method USB type C (5V DC/3A)
- Max. power consumption 10W
- Max. TX power 2.4 GHz: 20dBm- 5 GHz :25 dBm
- MIMO 2.4 GHz : 2 x 2 (DL/UL MU-MIMO) - 5 GHz : 2 x 2 (DL/UL MU-MIMO)
- Throughput rate 2.4 GHz: 573.5 Mbps - 5 GHz: 2.4 Gbps
- Antenna gain : 2.4 GHz : 4dBi - 5 GHz: 5.15 dBi
- Antennas (2) Internal 2.4G/5G WiFi dual-band antenna
- (1) Internal 2.4G single-band BT antenna
- LCM display 0.96" status display
- Button Factory reset
- Ambient operating temperature -10 to 45° C (14 to 113° F)
- Ambient operating humidity 5 to 95% noncondensing
- Certifications CE, FCC, IC
Gateway Features
- Performance Internet quality and outage reporting
- Next-generation security Application-aware firewall rules
- Content, country, domain, and ad filtering
- VLAN/subnet-based traffic segmentation
- Full stateful firewall
- Advanced networking License-free SD-WAN
- WireGuard, L2TP and OpenVPN server
- OpenVPN client
- OpenVPN and IPsec site-to-site VPN
- One-click Teleport VPN
- Policy-based WAN and VPN routing
- DHCP relay
- Customizable DHCP server
- IGMP proxy
- IPv6 ISP support
Software
- WiFi standards 802.11a/b/g/n/ac/ax
- Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- BSSID Console mode: 3 per band
- Standard AP: 8 per band
- VLAN 802.1Q
- Advanced QoS Per-user rate limiting
- Guest traffic isolation Supported
- Concurrent clients 50+*
- *Performance may be degraded with advanced gateway features (e.g., Traffic Identification).
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Application Requirements
- UniFi Network Version 8.0.7 and later
