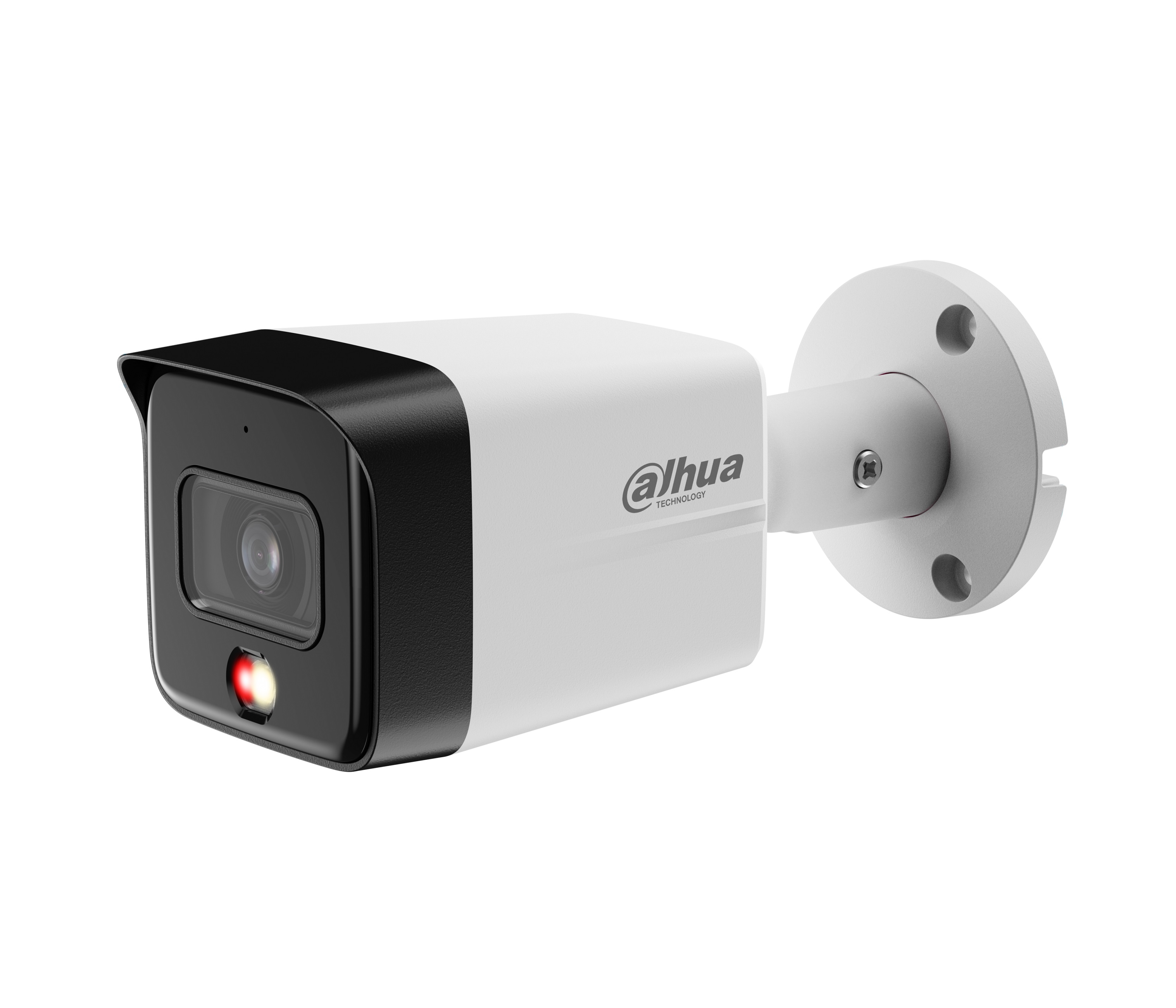

Dahua IP 6.0MP Bullet 2.8mm Dual Illumination WDR IPC-HFW1639TC-A-IL-0280B-S6

Order Code: 26832

Stock Level: Good

Price: €149.₀₀

1/2.7" CMOS image sensor, low luminance, and high definition image
Outputs max. 6 MP (3200 × 1800) @20 fps, and supports 2688 × 1520@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate
Built-in Multi-core Light, the max. IR distance is 30 m and the max. warm light distance is 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Built in Mic
12 VDC/PoE power supply, easy for installation
IP67 protection
Supports human detection

Camera

Image Sensor : 1/2.7" CMOS
Max. Resolution : 3200 (H) × 1800 (V)
ROM : 128 MB
RAM : 128 MB
Scanning System : Progressive
Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
Min. Illumination : 0.007 lux@F1.6 (Color,30 IRE) / 0.0007 lux@F1.6 (B/W,30 IRE) / 0 lux (Illuminator on)
S/N Ratio : >56 dB
Illumination Distance : Up to 30 m (IR LED) / Up to 30 m (Warm light)
Illuminator On/Off Control : Auto;Manual
Illuminator Number : 1 (IR LED); 1 (Warm light)

Lens

Lens Type : Fixed-focal
Lens Mount : M12
Focal Length : 2.8 mm;3.6 mm
Max. Aperture : F1.6
Field of View : 2.8 mm: H: 110°; V: 58°; D: 132° / 3.6 mm: H: 91°; V: 46°; D: 110°
Iris Control : Fixed
Close Focus Distance : 2.8 mm: 1.1 m / 3.6 mm: 1.7 m

Intelligence

Human Detection : Support the classification and accurate detection of human
Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec : Smart H.265+; Smart H.264+
Video Frame Rate : Main stream:3200 × 1800@(1–20 fps)/2688 × 1520@(1–25/30 fps)/ Sub stream:704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Stream Capability : 2 streams
Resolution : 6M (3200 × 1800); 4M (2880 × 1620/2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control : CBR/VBR
Video Bit Rate : H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps
Day/Night : Auto(ICR)/Color/B/W
BLC : Yes
HLC : Yes
WDR : DWDR
White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control : Auto;Manual
Noise Reduction : 3D NR
Motion Detection : OFF/ON (4 areas, rectangular)
Region of Interest (RoI) : Yes (4 areas)
Smart Illumination : Yes
Image Rotation : 0°/90°/180°/270° (Support 90°/270° with 2688 x 1520 resolution and lower)
Mirror : Yes
Privacy Masking : 4 areas

Audio

Alarm

Alarm Event : Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception

Network

Network Port : RJ-45 (10/100 Base-T)
SDK and API : Yes
Network Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Interoperability : ONVIF (Profile S; Profile T); CGI
User/Host : 6 (Total bandwidth: 24 M)
Storage : FTP
Browser : IE; Chrome; Firefox
Management Software : Smart PSS Lite; DSS; DMSS
Mobile Client : iOS;Android
Cyber Security : Configuration encryption;trusted execution;Digest;security logs;HTTPS;trusted upgrade;WSSE;trusted boot;account lockout;generation and importing of X.509 certification;video encryption

Certification

Power

Power Supply : 12 VDC/PoE (802.3af)
Power Consumption : Basic: 1.8 W (12 VDC); 2.3 W (PoE) / Max. (H.265 + intelligence on+ WDR + illuminator intensity): 4.5 W (12 VDC); 5.6 W (PoE)

Environment
