• Size: Micro ATX
  • USB 3.0 Port: 2x Front
  • Graphic Card Support: up to 338mm
  • Fan Included: Yes
  • Liquid Cooling Support: Yes

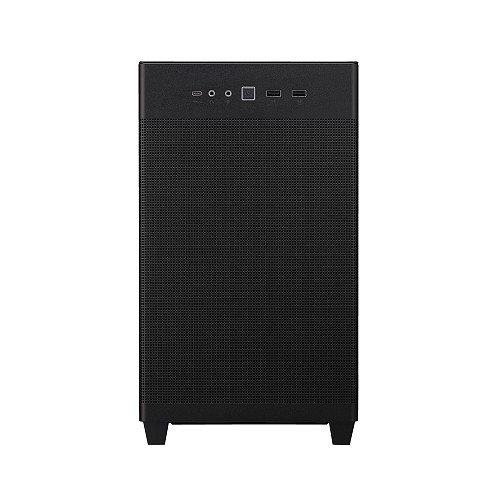

ASUS PC Case mATX Mesh Panel USB-C PRIME AP201 Black

Order Code: 27917
  • Size: Micro ATX
  • USB 3.0 Port: 2x Front
  • Graphic Card Support: up to 338mm
  • Fan Included: Yes
  • Liquid Cooling Support: Yes
Stock Level: Only 4 pieces left
Price: €109.99

The ASUS Prime AP201 is a stylish 33-liter MicroATX case with tool-free side panels and a quasi-filter mesh, with support for 360 mm coolers, graphics cards up to 338 mm long, and standard ATX PSUs.

  • Quasi-Filter Mesh Panels: A mesh design comprised of over 57,000 precision-machined 1.5mm holes increases airflow and provides a compelling view of the components within your build.
  • Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.
  • Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.
  • Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging.
  • Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight.
  • Front Panel USB Type-C® Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.

Dimensions & Build

  • Case Type: MicroATX Mini Tower

  • Dimensions (H x W x D): 350 x 205 x 460 mm (13.8 x 8.1 x 18.1 inches)

  • Material: Steel frame + mesh panels (black or white variants)

  • Weight: ~5.6 kg (12.3 lbs)

Motherboard Support

  • Form Factor: Micro-ATX, Mini-ITX

Drive Bays

  • 3.5" HDD: 2 (tool-free mounting)

  • 2.5" SSD: 3 (2 dedicated, 1 shared with 3.5" bay)

Cooling & Ventilation

  • Front Fans: Supports up to 3x 120mm or 2x 140mm (not pre-installed)

  • Rear Fan: 1x 120mm (not pre-installed)

  • Top Fans: Supports up to 2x 120mm or 2x 140mm (not pre-installed)

  • Bottom Fans: Supports up to 2x 120mm (for GPU airflow)

  • Radiator Support:

    • Top: Up to 280mm

    • Side: Up to 240mm

    • Rear: 120mm

Expansion Slots

  • PCIe Slots: 4 (horizontal)

Power Supply Support

  • PSU Type: ATX (up to 180mm length)

  • PSU Mounting: Bottom-mounted

I/O Panel

  • Front Ports:

    • 1x USB 3.2 Gen 2 Type-C

    • 2x USB 3.0 Type-A

    • 1x 3.5mm Audio Combo Jack

    • Power & Reset buttons

GPU & CPU Clearance

  • Max GPU Length: 338mm (with front fans installed)

  • Max CPU Cooler Height: 170mm

Dust Filters

  • Bottom & Top: Magnetic dust filters

Additional Features

  • Cable Management: Ample routing space with Velcro straps

  • Tool-Free Design: Easy-access side panels

  • Airflow-Optimized: Mesh panels for improved cooling

Compatibility Notes

  • Works well with compact air coolers and AIO liquid coolers.

  • Supports large GPUs (up to RTX 4090 in some configurations).

This case is ideal for builders who want a small but well-ventilated MicroATX system with modern connectivity (USB-C) and good cable management.
