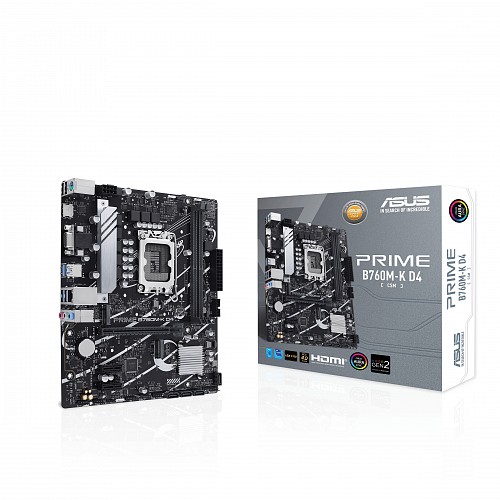

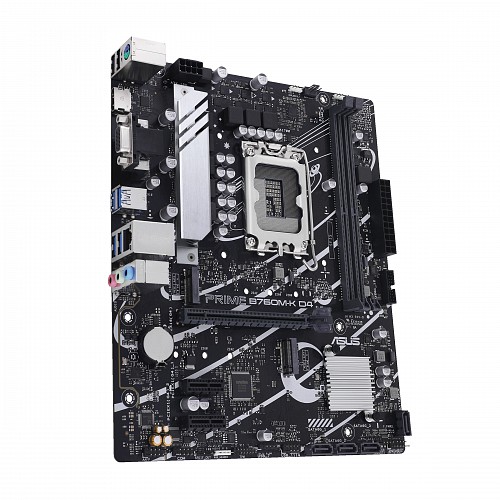

ASUS Motherboard mATX LGA1700 B760 Prime B760M-K D4

CPU & Chipset

• Socket: LGA 1700

• Supported Processors:

  • 12th Gen Intel Core (Alder Lake)

  • 13th Gen Intel Core (Raptor Lake)

  • 14th Gen Intel Core (Raptor Lake Refresh)

• Chipset: Intel B760

Memory (RAM)

• Slots: 2 x DDR4 DIMM (Dual-Channel)

• Max Capacity: 64GB (32GB per DIMM)

• Supported Speeds:

  • Up to 5333 MHz (OC) with 12th/13th/14th Gen CPUs

  • Non-ECC, Unbuffered

Expansion Slots

• PCIe 5.0 x16: 1 (for discrete GPU)

• PCIe 4.0 x1: 1

• PCIe 3.0 x1: 1 (varies by CPU)

Storage

• M.2 Slots:

  • 1 x M.2 (PCIe 4.0 x4, 2280/2260/2242)

• SATA Ports: 4 x SATA 6Gbps

Connectivity

• LAN: Realtek 1Gb Ethernet

• Wi-Fi: No onboard Wi-Fi (optional via USB/M.2 add-on)

• Bluetooth: No

Rear I/O Ports

• USB Ports:

  • 1 x USB 3.2 Gen 2 (10Gbps, Type-C)

  • 1 x USB 3.2 Gen 1 (5Gbps, Type-A)

  • 4 x USB 2.0

• Video Outputs:

  • 1 x HDMI 2.1 (4K@60Hz)

  • 1 x DisplayPort 1.4 (4K@60Hz)

• Audio: 3 x 3.5mm jacks (Realtek ALC887 codec)

• PS/2: 1 (combo keyboard/mouse)

Internal Headers

• USB Headers:

  • 1 x USB 3.2 Gen 1 (front panel)

  • 2 x USB 2.0 (4 ports total)

• Fan Headers:

  • 1 x CPU Fan (4-pin)

  • 1 x Chassis Fan (4-pin)

• RGB: No ARGB/RGB headers

Audio

• Codec: Realtek ALC887 (7.1-Channel HD Audio)

Form Factor

• Size: Micro-ATX (24.4 cm x 24.4 cm)

BIOS & Features

• BIOS: UEFI AMI (with EZ Mode)

• ASUS Features:

  • AI Overclocking

  • ASUS Q-LED (POST status LEDs)

  • ASUS CrashFree BIOS 3

Power Delivery

• VRM: 6+1+1 Phase (basic power delivery for mid-range CPUs)
