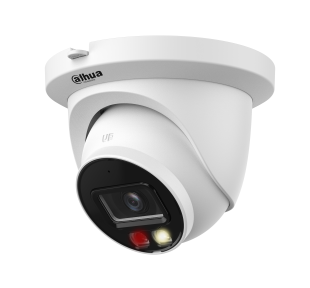

Dahua IP Lite AI 6.0MP Dome 2.8mm HDW3649H-AS-PV-0280B-PRO
Dahua

Dahua IP Lite AI 6.0MP Dome 2.8mm HDW3649H-AS-PV-0280B-PRO

Order Code: 28073
  • AI Features: SMD 4.0,Perimeter Protection,Acu Pick, Smart Search, AI SSA
  • Camera Resolution: 6.0MP
  • Housing Type: Dome
  • Full-Color: Yes
  • Illumination Distance: Up to 30m
  • Lens: Fixed
  • Lens Size: 2.8mm
  • IR Distance: Up to 30m
  • WDR: 120dB true WDR
  • IVS: YES
  • Audio: Built-in Mic,Built-in Speaker
  • Others: Up to 512G Micro SD
Stock Level: Good



Price: 399.00
  • 6-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 6 MP (3288 × 1850)@25/30 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m. · ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
  • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
  • 12 VDC/PoE power supply.
  • IP67 protection.
  • Sound and light alarm (red and blue lights).
  • SMD 4.0.
  • Supports AI SSA and one-tap arming and disarming.
  • SMD area can be set in warm light areas that support triggering alarms.

Camera

  • Image Sensor: 1/1.8" CMOS

  • Max. Resolution: 3288 (H) × 1850 (V)

  • ROM: 256 MB

  • RAM: 2 GB

  • Scanning System: Progressive

  • Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

  • Min. Illumination: 0.0005 Lux@F1.0 (Color, 30 IRE) / 0.0004 Lux@F1.0 (B/W, 30 IRE) / 0 lux (Illuminator on)

  • S/N Ratio: >56 dB

  • Illumination Distance: Up to 30 m (98.43 ft) (IR) / Up to 30 m (98.43 ft) (Warm light)

  • Illuminator On/Off Control: Auto; Manual

  • Illuminator Number: 2 (Multi-core (IR + warm) light)

Lens

  • Lens Type: Fixed-focal

  • Lens Mount: M16

  • Focal Length: 2.8 mm; 3.6 mm

  • Max. Aperture: F1.0

  • Field of View: 2.8 mm: H: 109°; V: 59°; D: 131

  • Iris Control: Fixed

  • Close Focus Distance: 2.8 mm: 3.2 m (10.50 ft)

Intelligence

  • IVS (Perimeter Protection): Intrusion, tripwire (supports vehicle and human classification and accurate detection)

  • SMD: SMD 4.0

  • AcuPick: Uses deep learning algorithms to accurately match targets, such as people and motor vehicles, and quickly search through live and recorded videos to locate targets

  • AI SSA: Adjusts the image parameters to suit the conditions using deep learning algorithms

  • Smart Search: Works with Smart NVR to refine intelligent search, event extraction, and merging of event videos

Video

  • Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

  • Smart Codec: Smart H.265+; Smart H.264+

  • AI Coding: AI H.265 (Compression rate ≥25%) / AI H.264 (Compression rate ≥25%)

  • Video Frame Rate: Main stream: 3288 × 1850@(1 fps–25/30 fps) / Sub stream: 1920 × 1080@(1–25/30 fps) / Third stream: 1920 × 1080@(1–25/30 fps)

  • Stream Capability: 3 streams

  • Resolution: 6M (3288 × 1850/3200 × 1800) 4M (2688 × 1520/2560 × 1440) / 3M (2304 × 1296) / 1080p (1920 × 1080) / 720p (1280 × 720) / D1 (704 × 576/704 × 480) / VGA (640 × 480) / CIF (352 × 288/352 × 240)

  • Bit Rate Control: CBR/VBR/ABR

  • Video Bit Rate: H.264: 3 kbps–16384 kbps / H.265: 3 kbps–16384 kbps

  • Day/Night: Auto (ICR)/Color/B/W

  • BLC: Yes

  • HLC: Yes

  • WDR: 120 dB

  • Scene Self-adaptation (SSA): Yes

  • White Balance: Auto; natural; street lamp; outdoor; manual; regional custom

  • Gain Control: Auto

  • Noise Reduction: 3D NR

  • Motion Detection: OFF/ON (4 areas, rectangular)

  • Region of Interest (RoI): Yes (4 areas)

  • Smart Illumination: Yes

  • Smart Dual Light: Yes

  • Defog: Yes

  • Image Rotation: 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower)

  • Mirror: Yes

  • Privacy Masking: 8 areas

  • LDC: Yes

Audio

  • Built-in MIC: Yes, built-in dual Mic

  • Built-in Speaker: Yes, built-in speaker

  • Audio Compression: PCM; G.711a; G.711Mu; G.726; G.723

Alarm

  • Alarm Event:

    No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception

Network

  • Network Port: RJ-45 (10/100 Base-T)

  • SDK and API: Yes

  • Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P

  • Interoperability: ONVIF (Profile S; Profile G; Profile T); CGI

  • User/Host: 20 (Total bandwidth: 64 M)

  • Storage: FTP; SFTP; Micro SD card (support max. 512 GB); NAS

  • Browser: IE11; Chrome; Firefox

  • Management Software: Smart PSS Lite; DSS; DMSS; DoLynk Care

  • Mobile Client: iOS; Android

Cyber Security

  • Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; Syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Certification

  • Certifications:

    • CE-LVD: EN 62368-1

    • CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

  • Audio Input: 1 channel (RCA port)

  • Audio Output: 1 channel (RCA port)

  • Alarm Input: 1 channel in: wet contact, 5 mA 3–5 VDC

  • Alarm Output: 1 channel out: wet contact, 300 mA 12 VDC

Power

  • Power Supply: 12 VDC; PoE

  • Dual Power Backup: When the power adapter and PoE provide power simultaneously, disconnect one of them. The device will continue to work, but will not restart.

  • Power Consumption:

    • Basic: 4.1 W (12 VDC); 6 W (PoE)

    • Max: 8.2 W (12 VDC); 10 W (PoE) (H.265+ WDR + warm light + siren and light active deterrence + intelligence on)

Environment

  • Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)

  • Operating Humidity: ≤95%

  • Protection: IP67

Structure

  • Casing Material: Metal

  • Product Dimensions: 122.0 mm × 116.1 mm (4.80" × 4.57")

  • Net Weight: 0.8 kg (1.76 lb)

  • Gross Weight: 1.0 kg (2.20 lb)
