• AI Features: SMD Plus,Perimeter Protection
  • Camera Resolution: 6.0MP
  • Housing Type: Bullet
  • Full-Color: Yes
  • Illumination Distance: Up to 30m
  • Lens: Fixed
  • Lens Size: 2.8mm
  • IR Distance: Up to 30m
  • WDR: 120dB true WDR
  • Starvis: YES
  • IVS: YES
  • Wide Angle: YES
  • Audio: Built-in Mic
  • Others: Up to 256G Micro SD

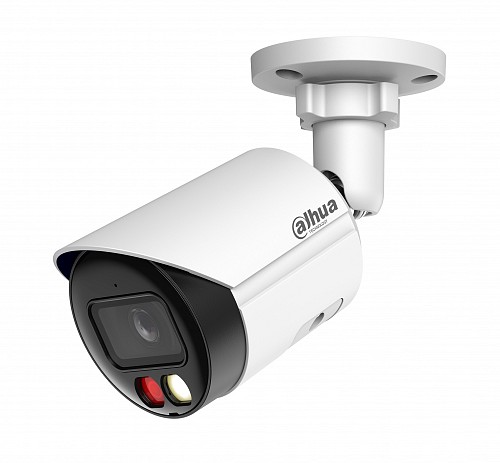

Dahua IP 6.0MP Bullet Smart Dual Light 2.8mm IPC-HFW2649S-S-IL

Order Code: 28279
  • AI Features: SMD Plus,Perimeter Protection
  • Camera Resolution: 6.0MP
  • Housing Type: Bullet
  • Full-Color: Yes
  • Illumination Distance: Up to 30m
  • Lens: Fixed
  • Lens Size: 2.8mm
  • IR Distance: Up to 30m
  • WDR: 120dB true WDR
  • Starvis: YES
  • IVS: YES
  • Wide Angle: YES
  • Audio: Built-in Mic
  • Others: Up to 256G Micro SD
Stock Level: Good
Price: €220.00
  • 1/2.7" CMOS image sensor, low luminance, and high definition image
  • Outputs max. 6 MP (3288×1850) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in warm light and IR LED, the max. IR distance is 30 m and the max. warm light distance is 30 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
  • Supports max. 256 G Micro SD card; built in Mic
  • 12 VDC/PoE power supply, easy for installation
  • IP67 protection
  • SMD Plus

Camera

  • Image Sensor : 1/2.7" CMOS
  • Max. Resolution : 3288 (H) × 1850 (V)
  • ROM : 128 MB
  • RAM : 256 MB
  • Scanning System : Progressive
  • Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
  • Min. Illumination : 0.007 lux@F1.6 (Color, 30 IRE) / 0.0007 lux@F1.6 (B/W, 30 IRE) / 0 lux (Illuminator on)
  • S/N Ratio : >56 dB
  • Illumination Distance : 30 m (IR), 30 m (Warm light)
  • Illuminator On/Off Control : Auto; manual
  • Illuminator Number : 1 (IR LED),1 (Warm light)

Lens

  • Lens Type : Fixed-focal
  • Lens Mount : M12
  • Focal Length : 2.8 mm
  • Max. Aperture : F1.6
  • Field of View : 2.8mm: H: 112°; V: 61°; D: 132°
  • Iris Control : Fixed
  • Close Focus Distance : 2.8 mm: 1.0 m

Intelligence

  • IVS (Perimeter Protection) : Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
  • Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

  • Video Compression : H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
  • Smart Codec : Smart H.265+; Smart H.264+
  • Video Frame Rate : Main stream: 3288 × 1850@(1–20 fps)/2688 × 1520@(1–25/30 fps) / sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) / The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
  • Stream Capability : 2 streams
  • Resolution : 6M (3288 × 1850/3200 × 1800); 5M (2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
  • Bit Rate Control : CBR/VBR
  • Video Bit Rate : H.264: 32 kbps–6144 kbps / H.265: 12 kbps–6144 kbps
  • Day/Night : Auto (ICR)/Color/B/W
  • BLC : Yes
  • HLC : Yes
  • WDR : 120 dB
  • White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
  • Gain Control : Auto; manual
  • Noise Reduction : 3D NR
  • Motion Detection : OFF/ON (4 areas, rectangular)
  • Region of Interest (RoI) : Yes (4 areas)
  • Image Rotation : 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
  • Mirror : Yes
  • Privacy Masking : 4 areas

Audio

  • Built-in MIC : Yes
  • Audio Compression : G.711a; G.711Mu; PCM; G.726

Alarm

  • Alarm Event : No SD card; SD card full; SD card error; network disconnecton; IP conflict; illegal access; moton detecton; video tampering; tripwire; intrusion; SMD; voltage detecton; security excepton

Network

  • Network Port : RJ-45 (10/100 Base-T)
  • SDK and API : Yes
  • Network Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
  • Interoperability : ONVIF (Profile S/Profile T); CGI; P2P; Milestone
  • User/Host : 6 (Total bandwidth: 36 M)
  • Storage : FTP; SFTP; Micro SD card (support max. 256 GB)
  • Browser : IE / Chrome / Firefox
  • Management Software : DSS; DMSS
  • Mobile Client : iOS; Android
  • Cyber Security : Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade

Certification

  • CE-LVD: EN62368-1;
  • CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power

  • Power Supply : 12 VDC; PoE
  • Power Consumption : Basic: 2.5 W (12 VDC); 3.3 W (PoE); / Max.: 4.4 W (12 VDC); 5.4 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity)

Environment

  • Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
  • Operating Humidity : ≤95%
  • Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
  • Protection : IP67

Structure

  • Casing Material : Metal
  • Product Dimensions : 169.8 mm × 70 mm × 70 mm
  • Net Weight : 0.47 kg
  • Gross Weight : 0.59 kg
Datasheet
