Citronic

Citronic CSP410 10 Channel Mixer & Amplifier 400W with DSP 170.843UK

Order Code: 28321


Stock Level: Only 3 pieces left

 –

Price: €399.00

Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.

  • 24-bit 16 program DSP effects
  • 48V phantom power for XLR inputs
  • 3-band EQ per channel
  • 7-band global graphic EQ
  • Internal stereo power amplifier
  • Balanced main outputs

In the Box

  • CSP-series powered mixer
  • IEC power lead(s)
  • Inputs : Mic/Line : 6 x balanced XLRF/TRS jack
  • Output power : 8 Ohms : 2 x 130Wrms
  • Output power @ 4 Ohms : 2 x 200Wrms
  • Speaker : outputs : L+R SPK connectors
  • Effects : 16 program DSP (24-bit sigma-delta, 40khz)
  • Phantom power : +48V (XLR inputs)
  • Frequency response : 20Hz-30kHz (0.5dB)
  • Input level : +24dBu
  • Output level : line : +26dBu
  • CMRR : >74dB (mic 1kHz)
  • THD +N : <0.01% (channel to main out)
  • Crosstalk : >85dB (fader mute), >82dB (channel)
  • Noise rms : 22Hz-22kHz : -122dBu (EIN), -82dBu (mix)
  • EQ: high : 12kHz ±15dB shelving
  • EQ: mid : 2.5kHz ±15dB band pass
  • EQ: low : 80Hz ±15dB shelving
  • Input impedance : mic (balanced) : 2k Ohms
  • Input impedance : line (balanced) : 10k Ohms
  • Sensitivity : mic : -60 to +14dBu
  • Sensitivity : line : -40 to +14dBu
  • 2-track : 2 x RCA in & out (-2dBu)
  • Output impedance : <75 Ohms
  • Headphone output : 6.3mm jack, 30-600 Ohms
  • Power supply : 230Vac 50Hz (IEC)
  • Power consumption : 600W
  • Fuse : T10A (5 x 20mm, 250V)
  • Weight : 7.35kg

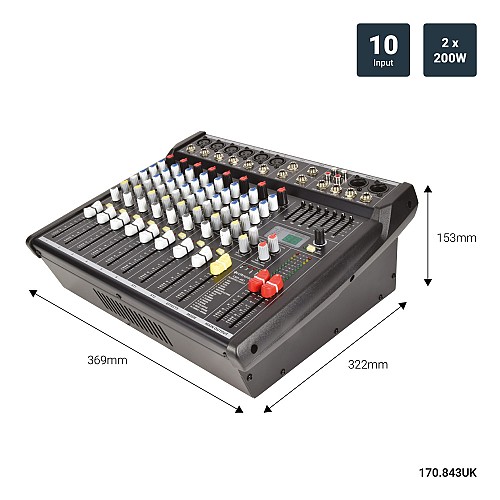

  • Dimensions : 369 x 322 x 153mm
User Manual
