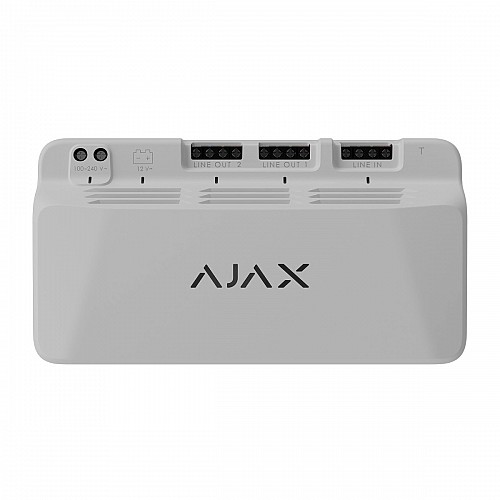

Module for additional power supply with 75 W power and two output Fibra lines
Wired Communication
Communication Technology: Fibra — proprietary wired communication technology combining the reliability of cables with the flexibility of radio
Key Features: Two-way communication / Advanced anti-sabotage / Block encryption featuring a dynamic key / Instant notifications / Remote configuration in Ajax apps
- Line Connection: 4-core cable
Connection Point: To any point of the Fibra line
Wired Connection Range: Up to 2,000 m (between the module and the hub) / Up to 2,000 m (between the module and the last Fibra device on the line)
Maximum length relevant when using U/UTP cat.5 twisted pair
- Number of Input Lines: 1
- Number of Output Lines: 2
- Power Output per Line: Up to 30 W
Galvanic Isolation: Ensures connected devices between the LineSupply and the line end do not consume power from the hub
Encrypted Communication: All stored and transmitted data are protected by block encryption featuring a dynamic key
Power Supply
- Main Power Supply: 100–240 V~, 50/60 Hz
- Backup Power Supply: 12 V⎓ battery, 7–18 Ah capacity (not included)
- The battery is charged when the main power is available
- Total Power Output: 30 W per line / 15 W to charge the backup battery
Sabotage Protection
- Tamper Alarm: Connector available for attaching a tamper board (board is part of the separately sold case)
- Short Circuit Protection: Active on Fibra lines
- Overvoltage Protection: On Fibra signal terminals A and B
- Protection Against Spoofing: Device authentication
- Communication Loss Detection: After 36 s (adjustable in hub settings)
Enclosure
- Dimensions: 160 × 85 × 53 mm
- Weight: 456 g
- Operating Temperature Range: From –10 °C to +40 °C
- Operating Humidity: Up to 75%
- Electric Shock Protection: Class III
Installation Recommendation: Indoor use only. Recommended for installation in Case C (260) or Case D (430). Cases are sold separately
