- All-around energy efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
- Precise digital power control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
- VRM heatsinks and thermal pads
The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.

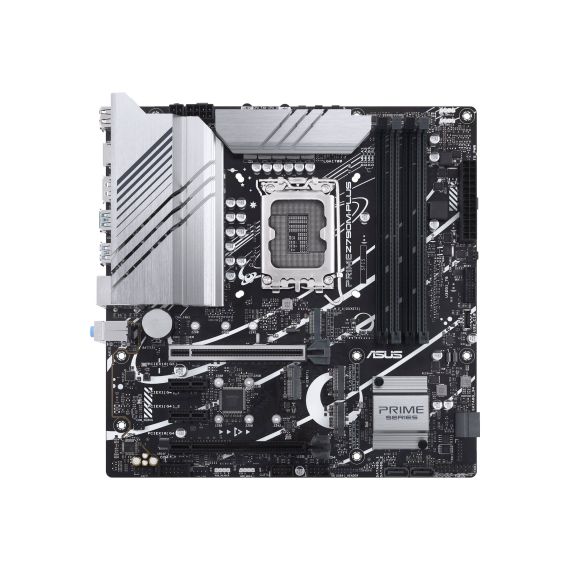

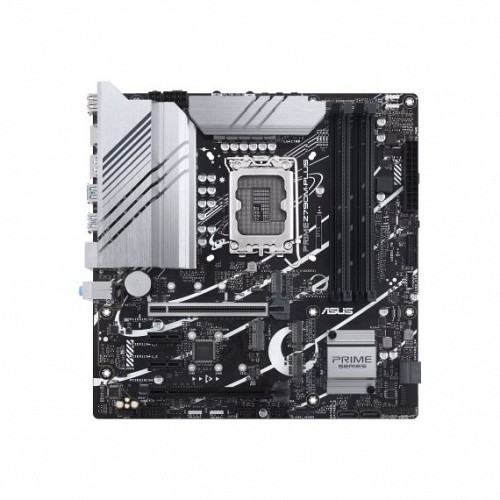

PRIME Z790M-PLUS features comprehensive cooling controls.
A dedicated PWM/DC header for self-contained water-cooling setups.
A dedicated integrated circuit protects each fan header from overheating and overcurrent.
Each onboard header supports auto-detection of PWM or DC fans.
Proprietary connectors augment the motherboard's link to the PSU with 4 + 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
- 10 + 1 teamed power stages
10 + 1 power stages combine high-side and low-side MOSFETS and drivers into packages rated for 50 amperes each, delivering power, efficiency, stability and performance to Intel processors.
Special Features
- All-around energy efficiency
- Precise digital power control
- VRM heatsinks and thermal pads
- Cooler by design
- AIO pump header
- Smart protection
- 4-pin PWM/DC fan
- ProCool connectors
- 10 + 1 teamed power stages
