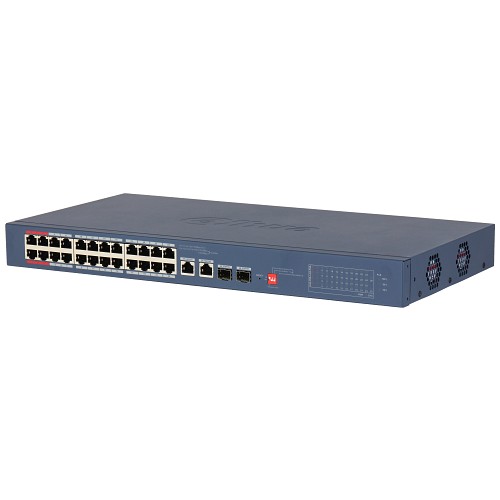

Dahua PoE Switch 24ports 240W Cloud Managed CS4226-24ET-240

Order Code: 28559

Stock Level: Good

Price: €249.₀₀

Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x, IEEE802.3ab,IEEE802.3z standards.
Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards.
Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.

Basic

Switching Capacity : 8.8 Gbps
Packet Forwarding Rate : 6.55 Mpps
Description of Function Slots : Port 1-24: 24 × RJ-45 10/100 Mbps (PoE); Port 25-26: 2 × RJ-45 10/100/1000 Mbps (combo); Port 25-26: 2 × SFP 1000 Mbps (combo)
PoE Power : Port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 240 W
Layer : Layer 2
Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity : 5% –95% (RH), non-condensing
Power Supply : Built-in power supply: 100–240 VAC, 47–63 Hz, max 4 A
Power Consumption : Idling: ≤8.5 W ; Full load: 265 W
Statics Protection : Air discharge: 8 kV; Contact discharge: 6 kV
Lightning Protection : Common mode: 4 kV; Differential mode: 2 kV
Net Weight : 2.47 kg (5.43 lb)
Product Dimensions : 440 mm × 220 mm × 44 mm (17.32" × 8.66" × 1.73") (L × W × H)

Hardware

Performanc

MTBF : 64.20 years
Packet Buffer Size : 4 Mbit
Jumbo Frame : 15K Byte
MAC Table Size : 8K
VLAN Number : 32
Communication Standard : IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z

Feature

General

Gross Weight : 3.12 kg (6.86 lb)
Packaging Dimensions : 540 mm × 342 mm × 90 mm (21.26" × 13.46" × 3.54") (L × W × H)
Casing Material : Sheet metal
Installation : Desktop mount; rack mount
Certifications : CE
Packing List : Quick Start Guide × 1; Legal and Regulatory Information × 1; Power cord × 1; Rack-mount kit × 1
