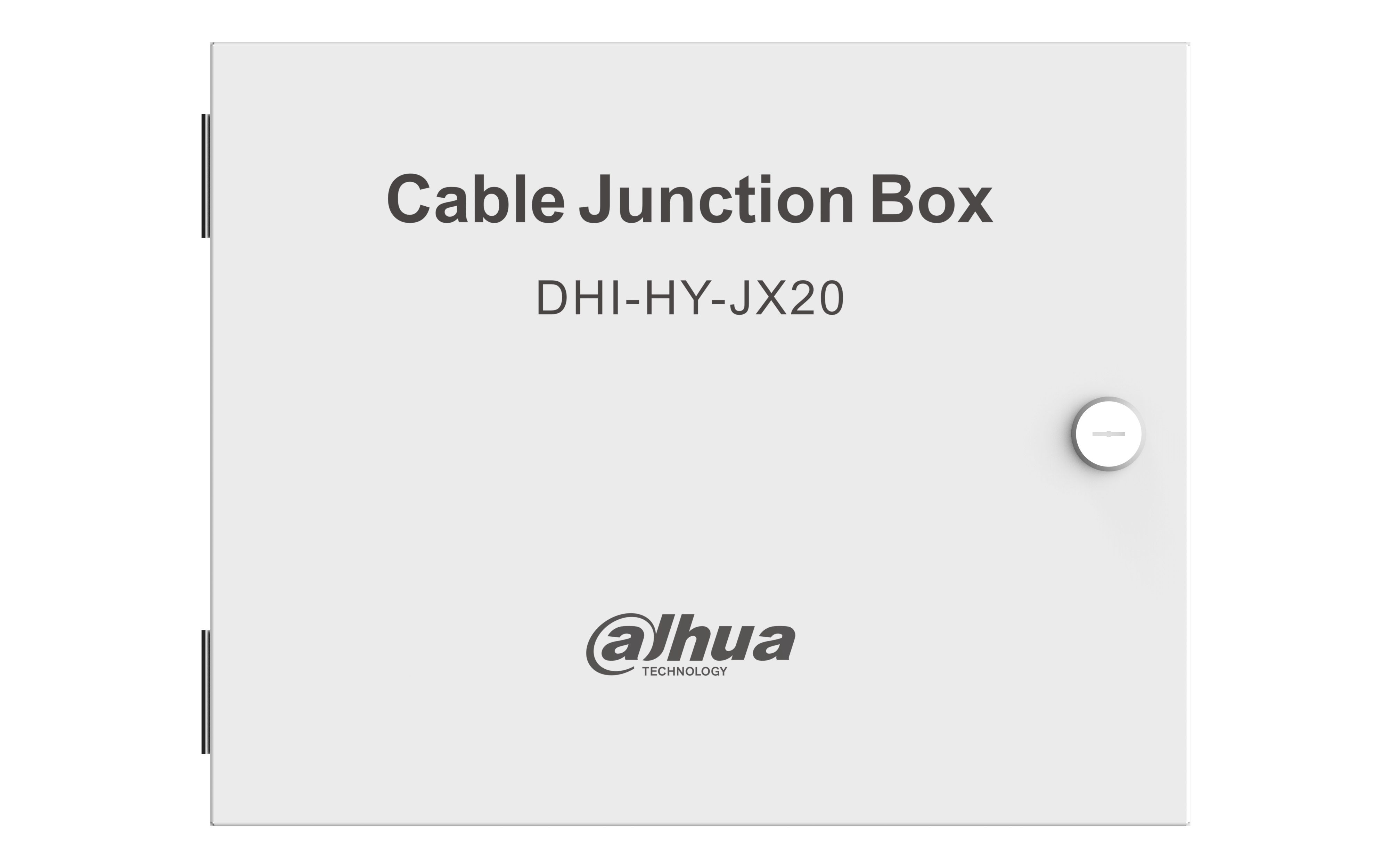

Dahua Addressable Fire Alarm Module Junction Box (20 inputs-20 outputs) HY-JX20-CTXF

Order Code: 28580
Dahua Addressable Fire Alarm Module Junction Box (20 inputs-20 outputs) HY-JX20-CTXF
Dahua

Dahua Addressable Fire Alarm Module Junction Box (20 inputs-20 outputs) HY-JX20-CTXF

Order Code: 28580
Stock Level: Good
  • Convenient for wire splitting and transferring
  • Built-in 20 groups of built-in terminal blocks
  • Material : Cold-rolled steel sheet
  • Dimensions : 300 mm × 240 mm × 100 mm (11.81" × 9.45" × 3.94")
  • Color : White
  • Net Weight : 3 kg (6.61 lb)
  • Gross Weight : 3.6 kg (7.94 lb)
  • Max. Module Quantity : 2
  • Packaging Method : 10 pcs in each carton
  • Operating Temperature : –10 °C to +50 °C (+14 °F to +122 °F)
  • Operating Humidity : ≤ 95% RH (no condensation)
  • Protection : IP20
  • Installation : Wall mount
Barcode (EAN) 6939554959585
