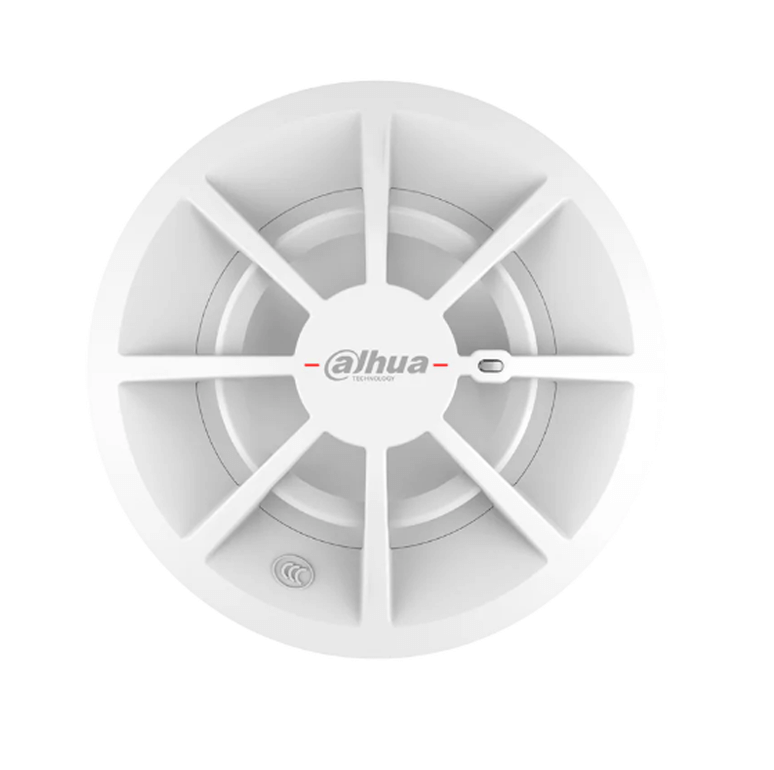

Dahua Conventional Fire Alarm Detector With Base (Heat) HY-C132

Order Code: 28584

Order Code: 28584

Stock Level: Good

Meets all requirements of latest EN54
Two-wire, polarity-free realizes convenient wiring
Completes EMC test, it has strong anti-electromagnetic interference ability, high stability and reliability
Differential temperature intelligent detection algorithm satisfies a variety of complex scenarios
Non-loosening screws on base terminal for easy installation
Contacts material is highly acid-resistant and rust-resistant

Working Voltage : DC16V-DC28V
Rated Power : 3.408mW
Current : Standby current: ≤ 120μA / Alarm current: ≤ 170μA
Alarm Mode : Visual alarm
Coverage Area : H ≤ 4 m (13.12 ft): 50 m2 / 4 m(13.12 ft) ≤ H ≤ 12 m(39.37 ft): 30 m2
Operating Temperature : –10°C to +50°C (+14°F to +122°F)
Operating Humidity : ≤ 95% RH (no condensation)
Dimensions (with base) : Φ100 mm × 50 mm (Φ 3.00" × 2.13")
Weight (with base) : 81 g (0.18 lb)
Installation : Ceiling Mount
Compliance Standard : EN 54-5: 2017/A1:2018
