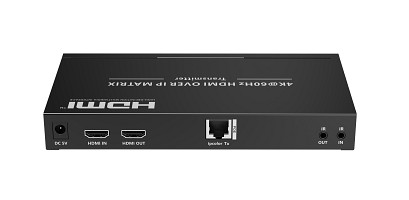

Lenkeng HDMI Matrix over IP 4K Transmitter iMCS-IM02-TX

Order Code: 28590
Stock Level: Good



Price: 209.00

The iMCS-IM02-TX is a high-performance 4K@60Hz 4:4:4 HDMI over IP transmitter designed for professional AV distribution. It supports ultra-low latency video extension up to 120 meters over a 1 Gbps LAN network, making it ideal for applications such as digital signage, command & control rooms, and live event broadcasting.

  • 4K Ultra HD Support: Delivers pristine 4K@60Hz video with 4:4:4 chroma subsampling for zero compression artifacts.

  • HDMI Loop Out: Allows local monitoring while transmitting video over IP.

  • Bi-directional IR & IR Learning: Enables remote control of source devices (e.g., Blu-ray players, set-top boxes).

  • RS-232 & I/O Control: Integrates with automation systems (Crestron, AMX, Control4).

  • PoE (Power over Ethernet): Simplifies installation with single-cable power and data transmission.

  • APP Control: Manage settings and switching via a dedicated mobile/desktop application.



  • Max. Video Resolution: 4K@60Hz 4:4:4
  • LAN: 1 Gbps
  • Extension Distance: 120m
  • Audio Extraction: Not supported
  • HDMI Loop Out: ✓ (Supported)
  • Bi-directional IR: ✓
  • IR Learning: ✓
  • RS-232: ✓
  • RS-485/RS-422: Not supported
  • I/O (Input/Output): ✓
  • Video Wall: Not supported
  • Multi-view: Not supported
  • APP Control: ✓
  • POE (Power over Ethernet): ✓
