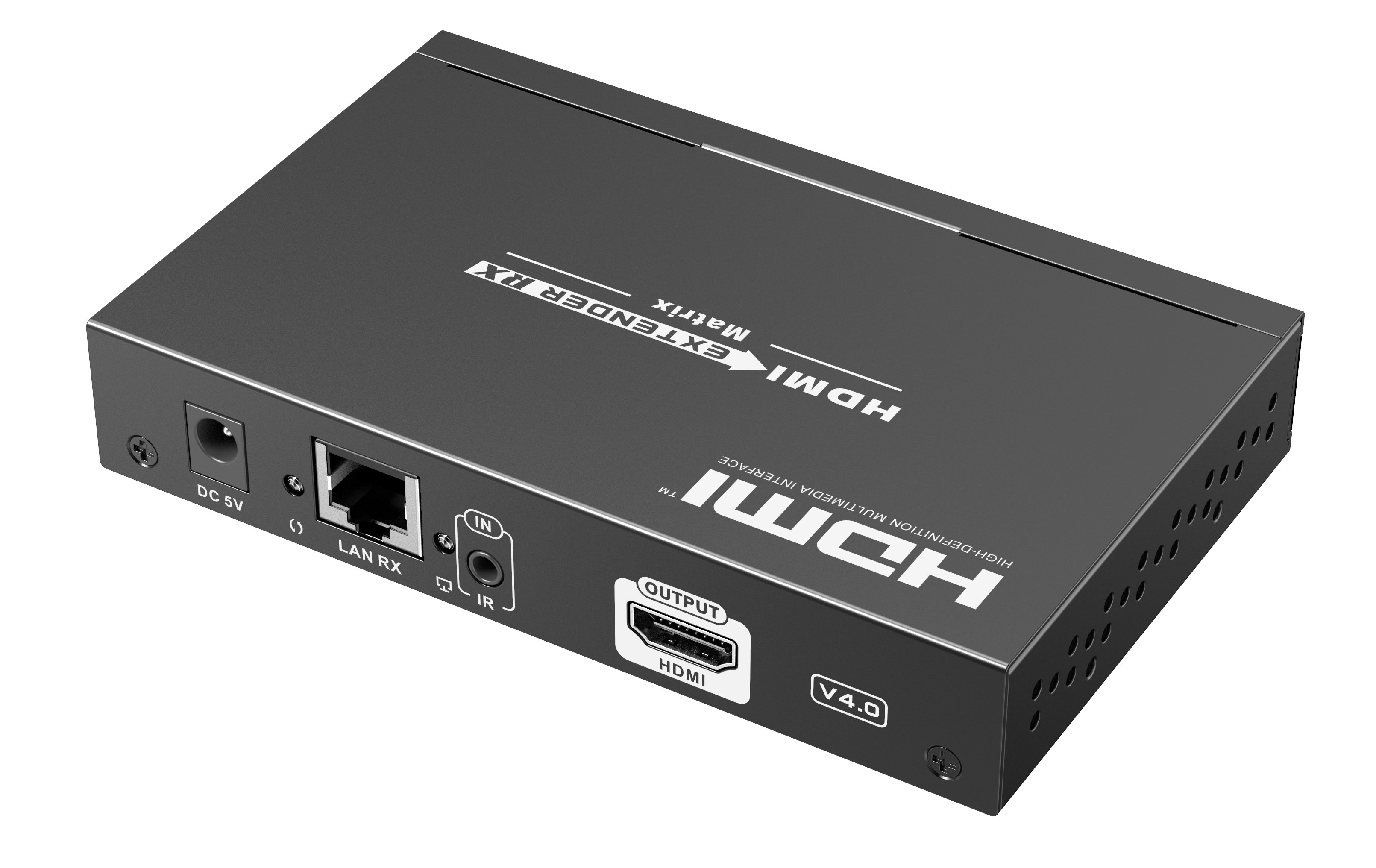

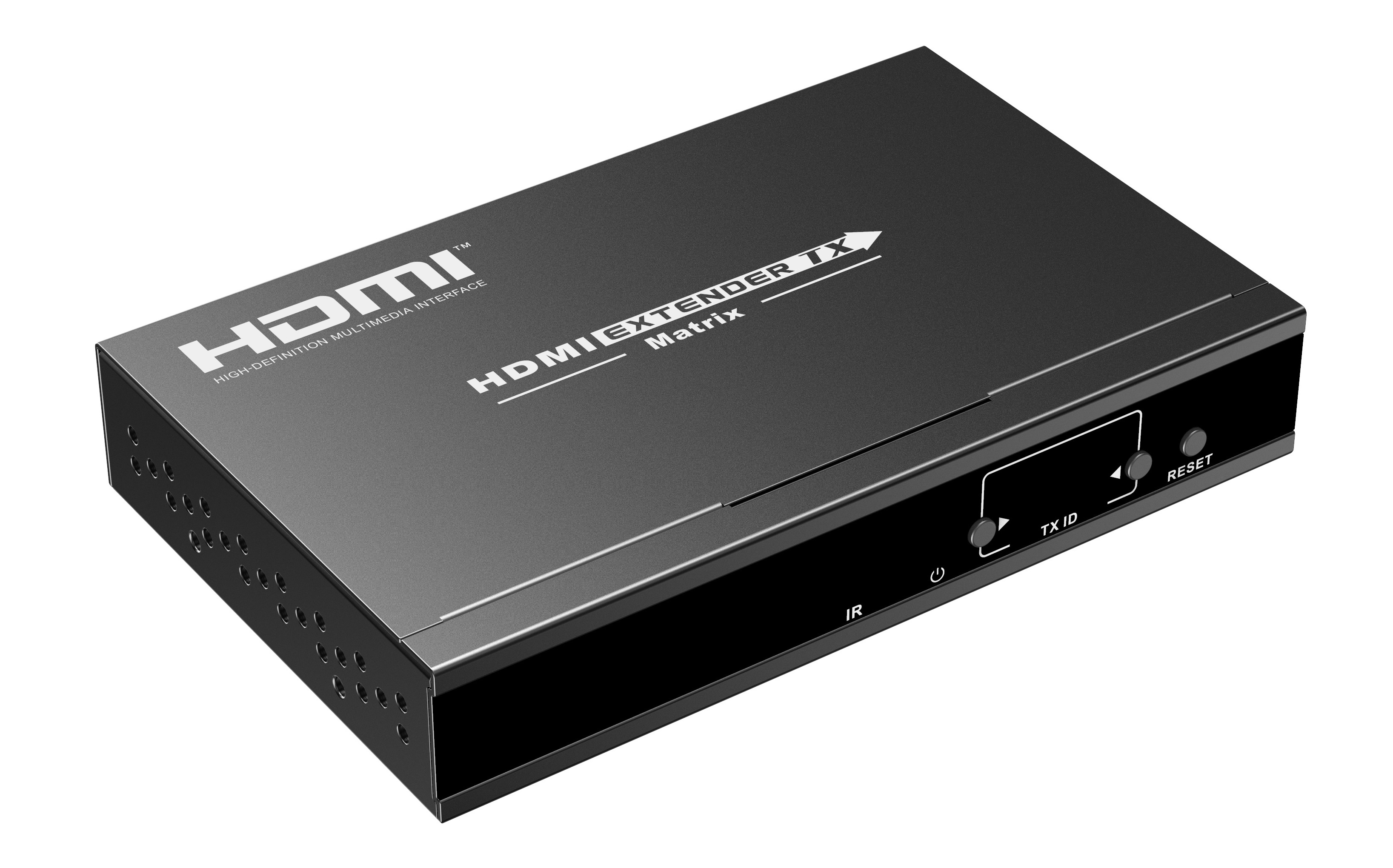

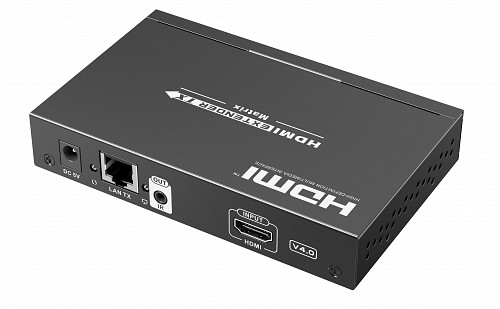

Lenkeng HDMI Matrix over IP 1080p KIT 4x4 (LKV383Matrix-4TX/4RX)

Order Code: 28620

Stock Level: Out of stock

Price: €799.₀₀

Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
Supports up to 3840 x 2160@60Hz resolution, backwards compatible.
Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
Supports one-to-one or many-to-many connections through the gigabit switch.
Supports IR pass-back(20～60KHz)
Creating multi-screen splicing with up to 5x5 video wall through switch and controlled by APP.
Supports 256 signal source inputs and 256 signal outputs, providing flexible many-to-many matrix configuration (Require APP control operation while connecting more than 100 TX-to-RXs).
Firmware upgrading via Micro USB port.
Lightning protection, surge protection, ESD protection.
Supports stable 24/7 operation.

Video & Audio Performance

Max Resolution:
- 4K@30Hz (4096×2160, 3840×2160)
- 1080p@60Hz, 720p@60Hz, 2560×1440@60Hz
HDMI Compliance: HDMI 2.0, HDCP 1.4/2.2
Max Bandwidth: 18Gbps (supports HDR, 4:4:4 chroma at lower resolutions)
Audio Output: LPCM 2.0 (stereo, no mention of surround sound)

Connection & Transmission

Transmission Medium:
- CAT5e (up to 100m) / CAT6 (up to 120m)
Latency:
- 4K@60Hz: 130–200ms
- 1080p@60Hz: 70–130ms (Note: Higher latency typical in IP-based systems)
HDMI Cable Limitation: ≤5m (for source-to-transmitter or receiver-to-display)

Network & Matrix Flexibility

Modes Supported:
- One-to-one (single TX to RX)
- Many-to-many (matrix switching via network)
- Switch Cascading (supports LAN switches for larger setups)
Protocol: Uncompressed HDMI over IP (proprietary or standard UDP-based)
