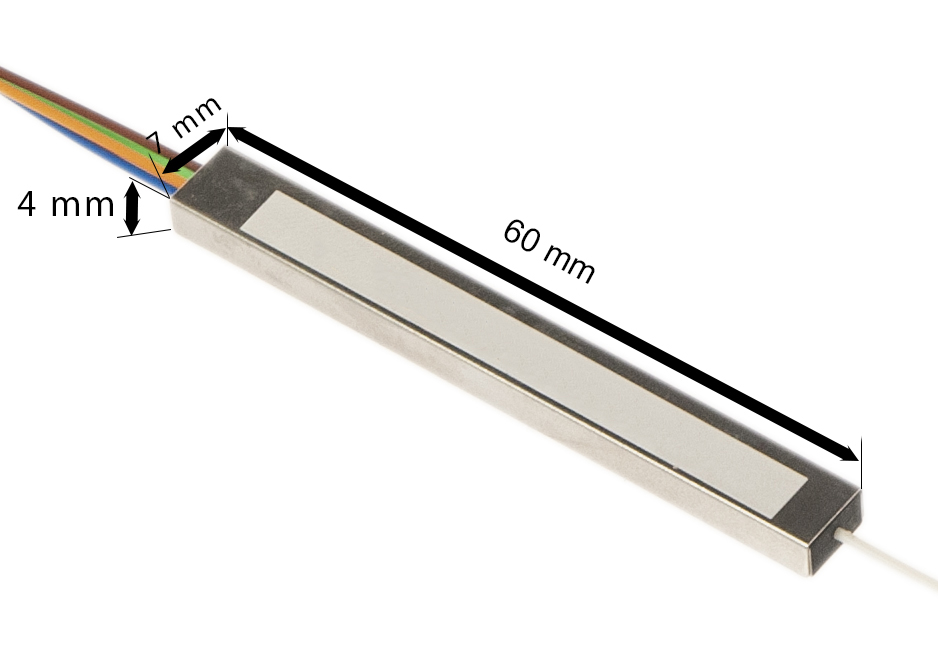

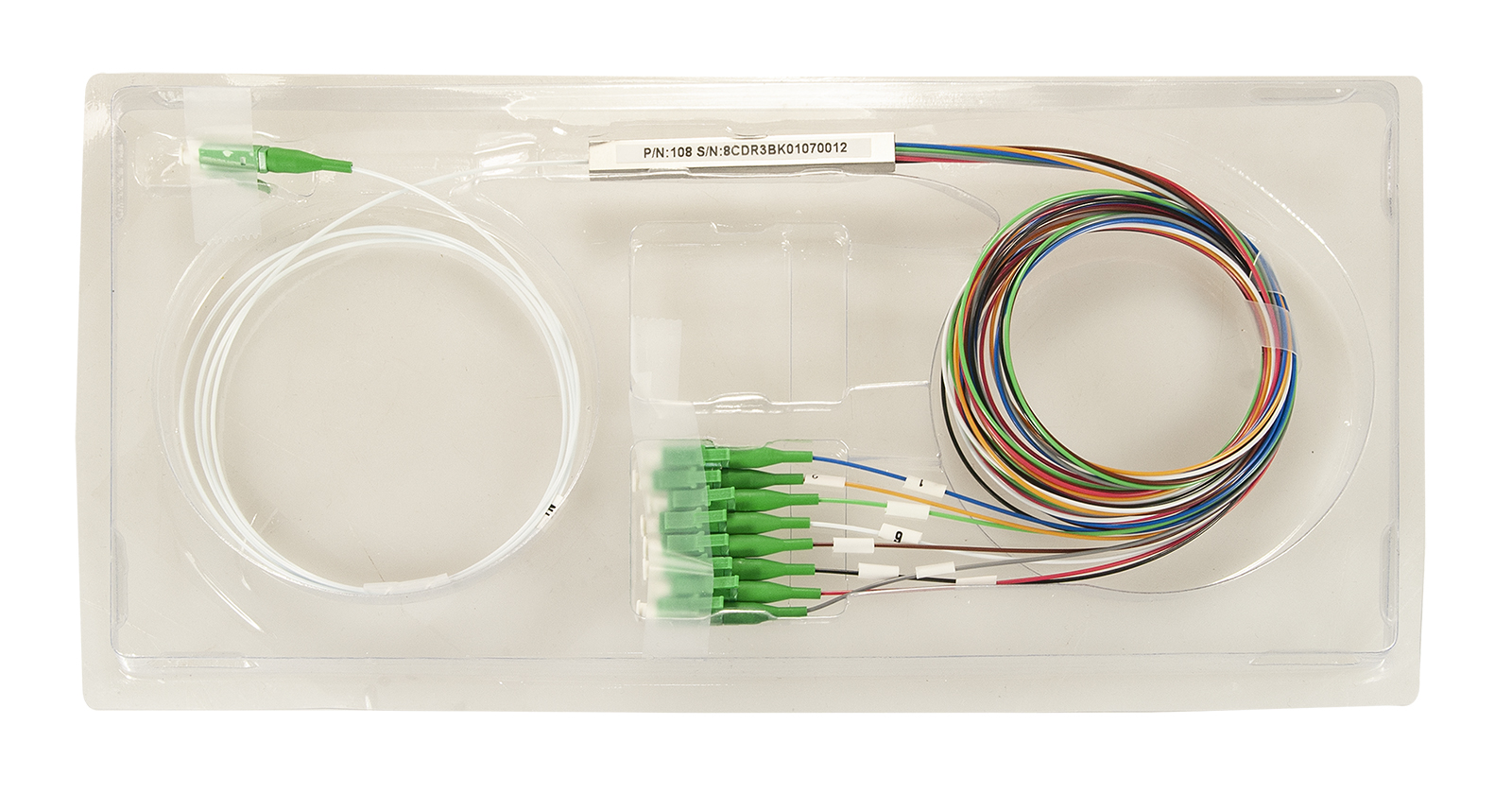

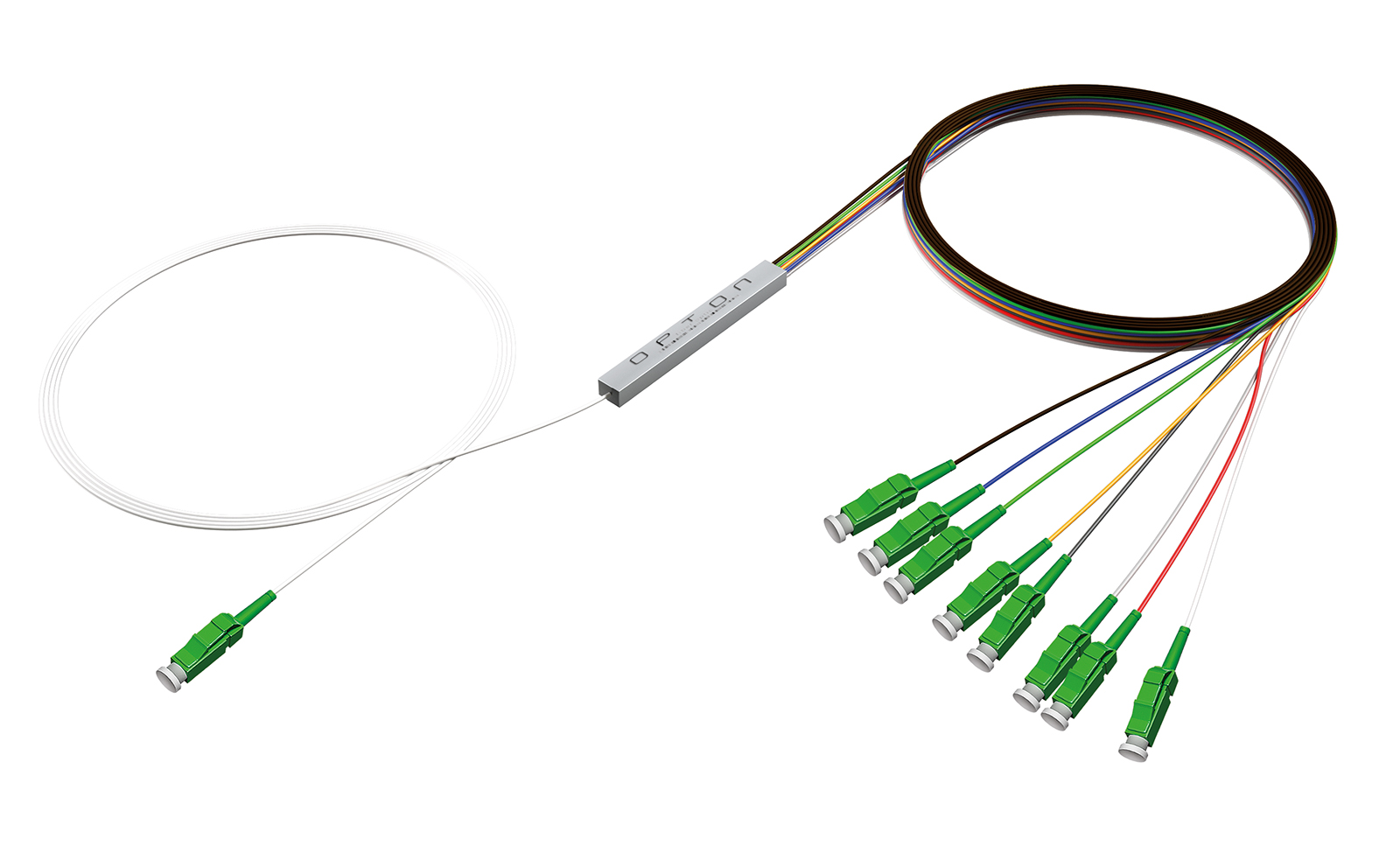

1x8 optical splitter (one input, eight outputs) with symmetrical power distribution (12,5% on each output). It has a steel box casing, the outer diameter of the cable is 0.9 mm, and its length is 1 m. A singlemode G.657.A1 fiber was used. Symmetrical splitters are the basic element of the PON network needed by every operator.
Fiber type G.657.A1
Connector type LC/APC
Outer diameter 0,9 mm
Cable length 1 m
Wavelenght 1260nm - 1650nm
Output damping ≤ 10,7 dB
Unevenness of division (uniformity) ≤ 0,8dB
PDL ≤ 0,3 dB
The influence of wavelength on damping ≤ 0,8 dB
Losses reflected ≥ 50 dB
directionality ≥ 55 dB
Permissible operating temperature From -5 to 75 degrees Celsius
Permissible storage temperature From -40 to 85 degrees Celsius
