• Connectivity: IP
  • Image Sensor: 2MP
  • Material: PC+ABS
  • Angle of View: H: 95; V: 50; D: 110
  • IP Rating: IP65
  • Access Type: RFID & Keypad
  • Recording: Photos & Video
  • Door Control: 1 x Relay Out,1 x Feedback,1 x Exit Button
  • Installation: Surface & Flush
  • Users: Many
  • POE: Yes

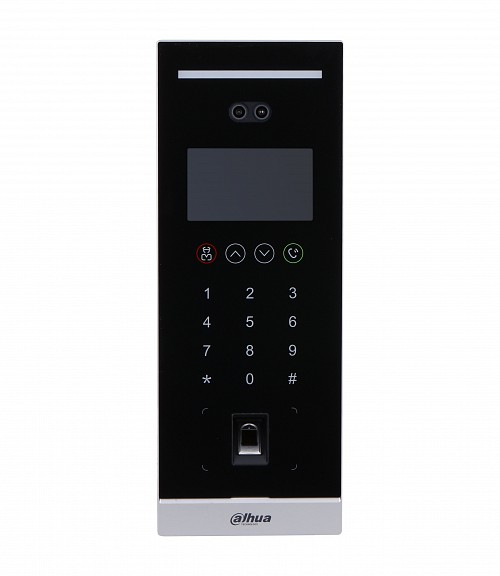

Dahua VD IP Doorphone Apartment Camera With Face Recognition VTO6541H-S2

Order Code: 28740
  • Connectivity: IP
  • Image Sensor: 2MP
  • Material: PC+ABS
  • Angle of View: H: 95; V: 50; D: 110
  • IP Rating: IP65
  • Access Type: RFID & Keypad
  • Recording: Photos & Video
  • Door Control: 1 x Relay Out,1 x Feedback,1 x Exit Button
  • Installation: Surface & Flush
  • Users: Many
  • POE: Yes
Stock Level: Only 2 pieces left
Price: €810.00
  • 4.3" LCD with a resolution of 800 × 480.
  • 2 MP HD dual-lens camera.
  • White light illuminators that help recognize the targets in darkness or low light environments.
  • Supports 40,000 users, 20,000 faces, 20,000 cards, and 10,000 finger prints.
  • Recognizes faces 0.3 to 1.5 m away (0.98 ft–4.92 ft) at an accuracy of 99.9%, and compares 1 face with N faces at the speed of 0.2 seconds/ person.
  • Liveness detection is used to detect spoof attempt, such as using a photo or video to gain access.
  • Offers multiple types of alarms such as duress, tamper, emergency and alarms from door detectors.
  • Supports leaving audio and video messages when no one responds through the indoor monitor. (An SD card in VTH is required.)
  • Supports multiple unlock methods including password, IC card, fingerprint, QR code (supported by DSS) and face, and unlocks remotely.
  • Unlocks the door through the indoor monitor, management center and app.
  • Provides 12 VDC, 500 mA power for the extension module or card reader.
  • IP65 rated (Silicone sealant is required for the shell, see the quick start guide).
  • Standard PoE power supply. If the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard.)

System

  • Main Processor: Embedded processor
  • Operating System: Embedded Linux OS
  • Button Type: Touch button
  • Interoperability: CGI; ONVIF
  • Network Protocol: RTMP; HTTP/HTTPS; DNS; RTSP; SSH; ONVIF; SIP; RTP

Basic

  • Screen Type: Non-touchscreen
  • Display Screen: 4.3-inch display screen
  • Screen Resolution: 800 (H) × 480 (V)

Camera

  • Image Sensor: 1/2.8" 2MP CMOS high-definition, low illumination, dual cameras
  • Field of View: H: 95°; V: 50°; D: 110°
  • WDR: 120 dB
  • Noise Reduction: 3D NR
  • Video Compression: H.264; H.265
  • Video Resolution: Main stream: 720P/D1/WVGA; Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA
  • Video Frame Rate: 25 fps
  • Video Bit Rate: 1,024 kbps–8,192 kbps
  • Light Compensation: Auto white light
  • Audio Compression: G.711a; G.711u; PCM
  • Audio Input: 1 channel
  • Audio Output: Built-in speaker
  • Audio Mode: Two-way audio
  • Audio Enhancement: Echo suppression/digital noise reduction
  • Audio Bit Rate: 16 kHz, 16 bit

Function

  • Communication Mode: Full digital
  • Verification Method: Fingerprint; Remote; Face recognition; Card; Password
  • Auto Snapshot: Yes
  • Information Release: Receive and view text information released by the management center
  • Leave Videos: Yes (SD card inserted in VTH is needed)
  • Web Configuration: Yes
  • Auto Registration: Yes

RFID

  • Card Type: IC card
  • Card Reading Distance: 0 cm–5 cm (IC card)
  • Issue Card Locally: Yes

Performance

  • Face Recognition Height Range: 1.1 m–2.2 m (3.61 ft–7.22 ft)
  • Face Recognition Distance: 0.3 m–2.0 m (0.98 ft–6.56 ft)
  • Face Recognition Accuracy: 99.9%
  • Face Recognition Time: 0.2 sec
  • Fingerprint Sensor Type: Capacitive
  • Fingerprint Comparison Time: ≤1.5 sec
  • Fingerprint Recognition Time: ≤1 sec
  • Casing Material: PC + ABS

Capacity

  • Card Capacity: 20,000
  • Face Image Capacity: 20,000
  • Fingerprint Capacity: 10,000

Port

  • RS-485: 1
  • Wiegand: 1 (can be set as input or output port)
  • Alarm Input: 2 channels
  • Alarm Output: 2 channels
  • Power Output: 1 port (12 V, 500 mA)
  • Exit Button: 1 channel
  • Door Status Detection: 1 channel
  • Lock Control: 1 channel, open by default
  • Network Port: 1 × 10 Mbps/100 Mbps Ethernet port

Alarm

  • Tamper Alarm: Yes

General

  • Unlock Password Mode: User; Public; Duress passwords
  • Appearance Color: Silver
  • Power Supply: 12 VDC, 2 A; Standard PoE
  • Power Adapter: Optional
  • Installation: Flush mount; Wall mount
  • Certifications: CE
  • Accessory: Power supply (optional); Flush mount box (optional)
  • Product Dimensions: 389 mm × 145 mm × 43 mm (15.31" × 5.71" × 1.69")
  • Protection: IP65 rated (Silicone sealant required. See quick start guide for details.)
  • Operating Temperature: –30 °C to +60 °C (–22 °F to +140 °F)
  • Operating Humidity: 0%–90% (RH), non-condensing
  • Operating Altitude: 0 m–3,000 m (0 ft–9842.52 ft)
  • Power Consumption: ≤5 W (standby); ≤18 W (working)
  • Gross Weight: 1.50 kg (3.31 lb)
