• AI Features: Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert
  • Camera Resolution: 8.0MP
  • Housing Type: Bullet
  • Full-Color: Yes
  • Illumination Distance: Up to 30m
  • Lens: Motorised
  • Lens Size: 2.7-13.5mm
  • IR Distance: Up to 35m
  • Wide Angle: YES
  • Audio: Two-Way
  • Alarm: 1 Channel In, 1 Channel Out
  • Others: Up to 512G Micro SD

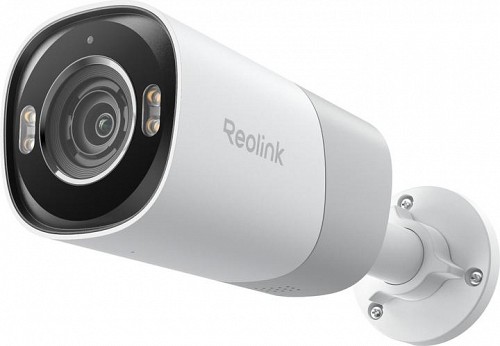

Reolink PRO IP POE Dual Illumination 8.0MP Bullet 2.7-13.5mm SED Motorised RP-PCB8MZ

Order Code: 28966
  • AI Features: Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert
  • Camera Resolution: 8.0MP
  • Housing Type: Bullet
  • Full-Color: Yes
  • Illumination Distance: Up to 30m
  • Lens: Motorised
  • Lens Size: 2.7-13.5mm
  • IR Distance: Up to 35m
  • Wide Angle: YES
  • Audio: Two-Way
  • Alarm: 1 Channel In, 1 Channel Out
  • Others: Up to 512G Micro SD
Stock Level: Out of stock
Price: €189.99
  • 4K 8MP Ultra HD
  • 133° Super-Wide View
  • 5× Optical Zoom with Auto Focus
  • AI Video Search
  • Perimeter Protection
  • Smart Event Detection
  • Alarm Interface Available

Video & Audio

  • Image Sensor : 1/2.8" CMOS  Sensor
  • Resolution : 3840x2160(8Megapixels) @30fps
  • Lens : f=2.7-13.5mm Max.F=1.6
  • Zoom : 5X optical zoom
  • Video Compression : H.265/H.264
  • Field of View : Horizontal: 108.6°- 32° / Vertical: 56.2°- 18° / Diagonal: 133°- 36.7°
  • Day & Night : IR-cut filter with auto-switching
  • Infrared Night Vision : Up to 30meters(100ft); LED: 4pcs/4W/850nm
  • Color Night Vision : With spotlights:4pcs LEDs/0~4W adjustable/4000k/600 lumens
  • Frame Rate : Main Stream: 2fps - 30fps(default: 30fps) / Sub Stream: 4fps - 15fps(default: 10fps)
  • Code Rate : Main Stream: 2048Kbps -9216Kbps(default:7168Kbps) / Sub Stream: 64Kbps - 512Kbps(default: 512Kbps)
  • Audio : Two-way audio
  • DC Power : DC 12.0V⎓2A,  <15W

Power

  • PoE : IEEE 802.3af, 48V, Active

Interface

  • Power Port : DC power port
  • Ethernet Port : One  10M/100Mbps  RJ45
  • Storage : MicroSD card slot (Max. 512GB) Reolink NVR, ftp
  • Reset Button : YES
  • Alarm In/Out : 1 input, 1 output (input:12V/1A; output:12V/500mA)
  • Audio In/Out : Built-in Microphone&Speaker

Software Features

  • Browser Supported : Edge, Chrome, Firefox, Safari
  • OS Supported : PC: Windows, Mac OS; Smartphone: iOS, Android
  • Protocols & Standards : HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P, Onvif
  • Max.User Access : Max. 20 users (1 admin & 19 user);  Max. 12 simultaneous streams (2 main & 10 sub streams)

Other Features

  • Smart Alarm : Motion detection/Person Detection/Motor Vehicle Detection/Non-motorized Vehicle Detection/Animal Detection/Package Detection
  • Perimeter Protection : Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert
  • Smart Event Detection : Object Removal (beta) , Forgotten Object (beta)
  • Recording Modes : Motion-triggered recording (default); Scheduled recording, 24/7 recording
  • Smart Home Compatibility : Google Assistant
  • AI Video Search : Yes
  • AI ISP : Yes
  • HDR : Yes
  • Time Lapse : Yes

Working Environment

  • Operating Temperature: -30°C~+55°C
  • Operating Humidity: 10% ~ 90%
  • Weatherproof : IP67

Mechanical

  • Dimensions : 76x74x220mm
  • Weight (Without Accessories) : 776g
Datasheet
