• AI Features: AI Video Search, Person & Object Detection, Perimeter Protection, Smart Event Detection, Heat Map
  • Channels: 24
  • Max Input/Record: 400Mbps/400Mbps
  • PoE Ports: 16
  • Compression: H.265/H.264
  • HDD: Pre-installed 4TB
  • Others: 1 eSATA interface for HDD/Up to 32TB (up to 16TB capacity for each HDD)

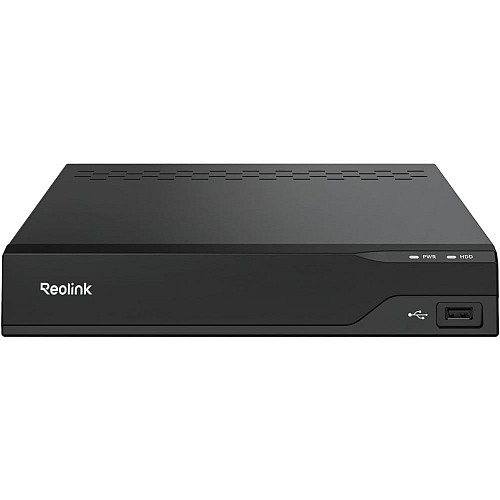

Reolink PRO IP POE NVR 24ch with 16port POE RP-PN16-NHD

Order Code: 28975
  • AI Features: AI Video Search, Person & Object Detection, Perimeter Protection, Smart Event Detection, Heat Map
  • Channels: 24
  • Max Input/Record: 400Mbps/400Mbps
  • PoE Ports: 16
  • Compression: H.265/H.264
  • HDD: Pre-installed 4TB
  • Others: 1 eSATA interface for HDD/Up to 32TB (up to 16TB capacity for each HDD)
Stock Level: Available in 2 weeks
Price: €289.99
  • Built-in 4TB HDD
  • Expandable Storage up to 32TB
  • Supports up to 16MP
  • Heat Mapping Technology
  • Smart Event Detection
  • AI Video Search

Video/Audio Input

  • IP Video Input : Up to 24 IP Cameras (Max.16 wired cameras) / Up to 16 MP resolution
  • Audio Input : Cameras with built-in MIC
  • Incoming Bandwidth : 400Mbps
  • Outgoing Bandwidth : 400Mbps

Video/Audio Output

  • Video Output : 1 HDMI, 1 VGA
  • Display Resolution : HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 / VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
  • Audio Output : 1 audio out channel, RCA

Decoding

  • Video Compression : H.265 / H.264
  • Live View/Playback Resolution : 7680X2160, 4608X1728, 4512X2512, 4096X3072, 3840X2160, 2560X2560, 2560X1920, 2560X1440, 2048X1536, 2304X1296,1080P,720P

Recording

  • Synchronous Playback : 1-4 channels (Supports only 1-channel playback if you view it in 8MP or higher resolution)

HDD

  • SATA : 2xSATA interfaces for 2 HDDs (with or without 4TB HDD)
  • External HDD : 1 eSATA interface for HDD
  • Capacity : Up to 32TB (up to 16TB capacity for each HDD)

External Interface

  • USB Interface : 2 x USB 2.0
  • Network Interface : 16 x RJ-45, 10/100 Mbps self-adaptive PoE Ethernet interface (for IP cameras) / 1 x RJ-45, 10/100/1000 Mbps self-adaptive (for LAN/WAN)

PoE

  • Max. Power Per Port : 25W
  • Supported Standard : IEEE 802.3 af/at

Network

  • Network Protocols : HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP,FTP
  • Browsers Supported : Edge, Firefox, Chrome, Safari
  • OS Supported : PC: Windows, Mac OS; Smart phone: iOS, Android
  • Max. User Access : 20 Users (1 admin account & 19 user accounts);
  • supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Other Features

  • AI Video Search : Yes (need to be supported on cameras as well)
  • Person & Object Detection / Person, Vehicle, Non-motorized vehicle, Animal and Package (need to be supported on cameras as well)
  • Perimeter Protection : Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert (need to be supported on cameras as well)
  • Smart Event Detection : Object Removal (beta) , Forgotten Object (beta) (need cameras support)
  • Heat Map : Yes

General

  • Power Supply : DC 52V/2.3A
  • Power Consumption : <10W (without HDD & PoE)
  • Working Environment : Temperature: -10°C ~ + 45°C (14°F ~ 113°F); / Humidity: 10% ~ 90%
  • Dimensions : 255mmx50mmx211mm
  • Weight : 1.4kg(without HDD) 1.8kg(with HDD)
Datasheet
