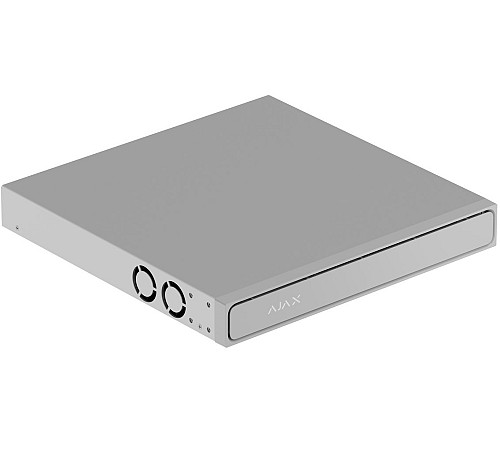

AJAX SURVEILLANCE NVR 8ch HDMI 160Mbps 4K Hot-Swap H2DAC

Order Code: 29523
AJAX SURVEILLANCE NVR 8ch HDMI 160Mbps 4K Hot-Swap H2DAC
Ajax

AJAX SURVEILLANCE NVR 8ch HDMI 160Mbps 4K Hot-Swap H2DAC

Order Code: 29523
  • Max Input/Record: 160Mbps/160Mbps
  • Full-Color: Yes
  • Channels: 8
  • PoE Ports: No
  • Compression: H.265/H.264
  • HDD: 2 Disk Up to 16TB
Stock Level: Good
Price €517.00
  • Double the storage. Double the confidence
  • Built to stand out
  • Continuous operation and easy maintenance with hot-swappable HDDs
  • Resilient storage with two recording modes and support for two HDDs
  • Effortless integration with existing systems and third-party monitoring software
  • Outstanding monitoring experience with Ajax apps and local VMS
  • Always-on recording without service breaks
  • Full story preserved with two-drive recording
  • Keeping track of critical events — at the desk or on the go
  • Easy integration through ONVIF and RTSP
  • Complete awareness with a customizable video wall
  • Smooth archive navigation
  • Instant event-to-video alarm verification
  • Rapid and encrypted data transfer
  • Built-in motion detection
  • Privacy by design



Video

  • Video input : 8 channels
  • Recording resolution : 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
  • HDMI output resolution : 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 px
  • Live view / playback resolution : 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / 720p / D1 / VGA / CIF

Decoding

  • Format : H.265 / H.264 / JetSparrow
  • Live view window division : templates : 1 / 4 / 9 / 16 / 25 / 5+1 / 7+1 / 12+1 views / custom : up to 10×10 views
  • Synchronous playback : 4 channels

Intelligent video analytics

  • Motion detection : Ajax camera : 8 channels / NVR : 8 channels
  • AI-powered object detection : Ajax camera : 8 channels

Interface

  • HDD : 2 × SATA III : supports hard drives with up to 16 TB capacity (2.5" and 3.5" form factors) ***HDDs are not included
  • Network : 1 × RJ45 self-adaptive Ethernet (10/100/1000 Mbps)
  • USB : rear panel: 2 × USB 2.0 (Type-A) (For connecting a keyboard, mouse, or USB Audio Device Class devices) (Audio IN/Audio OUT) / front panel : 1 × USB 2.0 (Type-A) (To connect a USB flash drive)

Network

  • Bandwidth : incoming : up to 160 Mbps / outgoing : up to 160 Mbps
  • Protocol : HTTP / HTTPS / TCP/IP / IPv4 / IPv6 / UPnP / SNMP / RTSP / UDP / SMTP / NTP / DHCP / DNS / DDNS
  • Interoperability : ONVIF

Key features

  • Supported devices : Ajax cameras / IP cameras via ONVIF (Profile S/T) or RTSP
  • Redundancy mode : Simultaneous recording of the same video streams to two storage devices to ensure data redundancy and reliability
  • Split mode : Sequentially distributes video streams across multiple storage devices to balance the load and optimize storage
  • Built-in video management system : Integrated video wall interface with live camera feeds / Smart event filters for quick access to relevant video recordings / Interactive timeline with preview navigation for efficient playback and incident review
  • Visual verification of Ajax system alarms
  • Privacy
  • Accelerometer

Power supply

  • Main : 100–240 V / 50/60 Hz / 0.6 A
  • Power consumption : up to 60 W
  • Clock battery : CR2032 battery / 3 V

Enclosure

  • Dimensions : 330 × 330 × 44 mm
  • Weight : TBC kg
  • Operating temperature range : from 0 °C to +50 °C
  • Operating humidity : up to 75%
  • Protection class : IP20
