Cudy

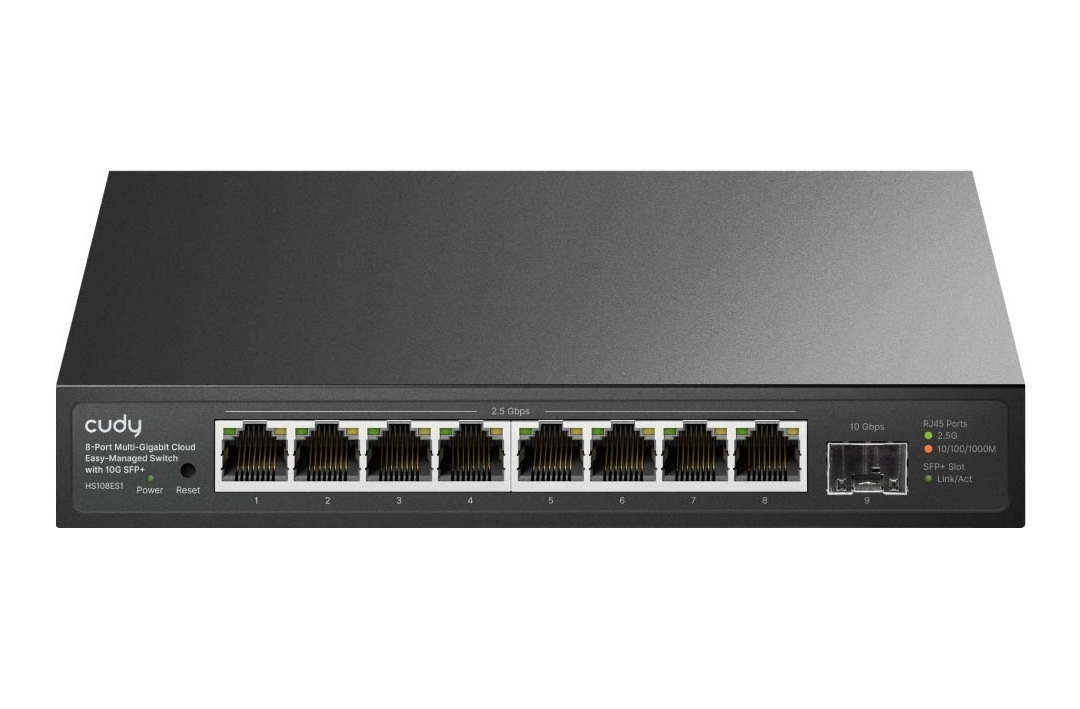

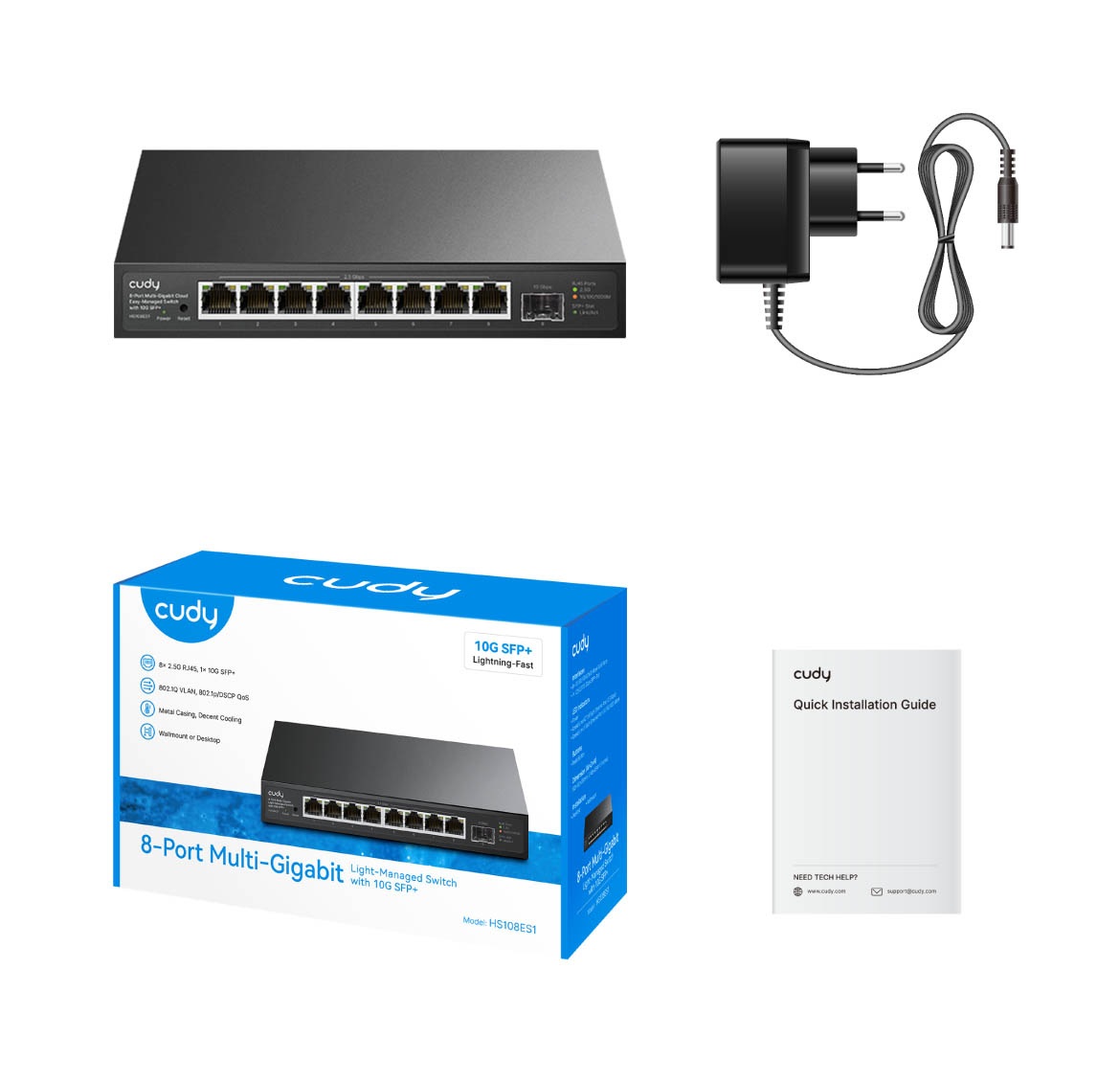

Cudy Switch Multi-Gigabit Ethernet 8-Ports 2.5GbE + 10G SFP HS108ES1

Order Code: 30584
Cudy

Cudy Switch Multi-Gigabit Ethernet 8-Ports 2.5GbE + 10G SFP HS108ES1

Order Code: 30584
  • Ethernet Speed: 2.5 Gigabit
  • Ethernet Ports: 8
  • Type: Managed
  • Housing: Metal
  • Mounting: Desktop/Wall
  • SFP Ports: 1
Stock Level: High
Price €79.99

The Cudy HS108ES1 is a high-performance 8-Port Multi-Gigabit Easy-Managed Switch equipped with an ultra-fast 10G SFP+ uplink, engineered specifically to eliminate bandwidth bottlenecks for both modern home power-users and growing business environments. Serving as a cost-effective, premium upgrade from traditional Gigabit hardware, it provides a seamless infrastructure solution for integrators and retail customers deploying high-speed Wi-Fi Access Points, Network Attached Storage (NAS), and multi-Gigabit workstation computers.

  • Next-Generation 2.5G Speeds: Features 8 × 2.5GbE ports that multiply your network speed up to 2.5 times compared to standard Gigabit switches, using existing Cat 5e or higher cabling.
  • 10G SFP+ Fiber Uplink: Equipped with 1 × 10 Gbps SFP+ slot to handle high-bandwidth backhaul connections to core switches, servers, or high-performance NAS units.
  • Essential Layer 2 Management: Intuitive Web Management provides control over critical functions, including 802.1Q VLAN network segregation, Quality of Service (QoS) traffic prioritization, and Link Aggregation (Port Trunking).
  • Network Reliability & Safety: Features advanced automatic Loop Detection and Prevention mechanisms to protect your local network from devastating accidental loops.
  • Silent and Durable Engineering: Packaged in a robust, professional-grade metal chassis with a fanless design ensuring entirely silent operation, making it ideal for desktop deployment or wall-mount installation.
  • Eco-Friendly Efficiency: Built with Energy Efficient Ethernet (IEEE 802.3az) standard support to significantly lower power consumption during low traffic periods.




  • Model: HS108ES1 1.0
  • Interfaces: 8 × 2.5G RJ45 Ports, 1 × 10G SFP+ Slot (supports 10G / 2.5G / 1G speeds)
  • Switching Capacity: 60 Gbps
  • Packet Forwarding Rate: 44.64 Mpps
  • MAC Address Table: 4096 entries
  • Packet Buffer: 4 Mbit
  • Jumbo Frame Size: 9 KB
  • Layer 2 Features: 802.1Q VLAN (up to 4096 IDs), DSCP QoS, 802.1p QoS, Port-Based QoS, Static Port Trunking (up to 2 groups, max 4 ports per group), Port Mirroring, Loop Prevention, Loop Detection
  • Management Methods: Web Management, local firmware upgrade, configuration backup & restore, diagnostic Ping tool
  • Power Supply Input: 12V / 1A DC Jack (External Power Adapter included, Input: 100-240V, 50/60Hz)
  • Power Consumption: Max 10W (with SFP-RJ45 Module); Max 9W (with SFP-SC Module); Idle 3.7W
  • Chassis Material: Premium Metal
  • Installation Options: Desktop or Wall-Mount
  • Dimensions (W × D × H): 190 mm × 100 mm × 28 mm
  • Operating Temperature: 0 °C to 40 °C
  • Operating Humidity: 10% to 90% non-condensing
Barcode (EAN) 6971690794941
