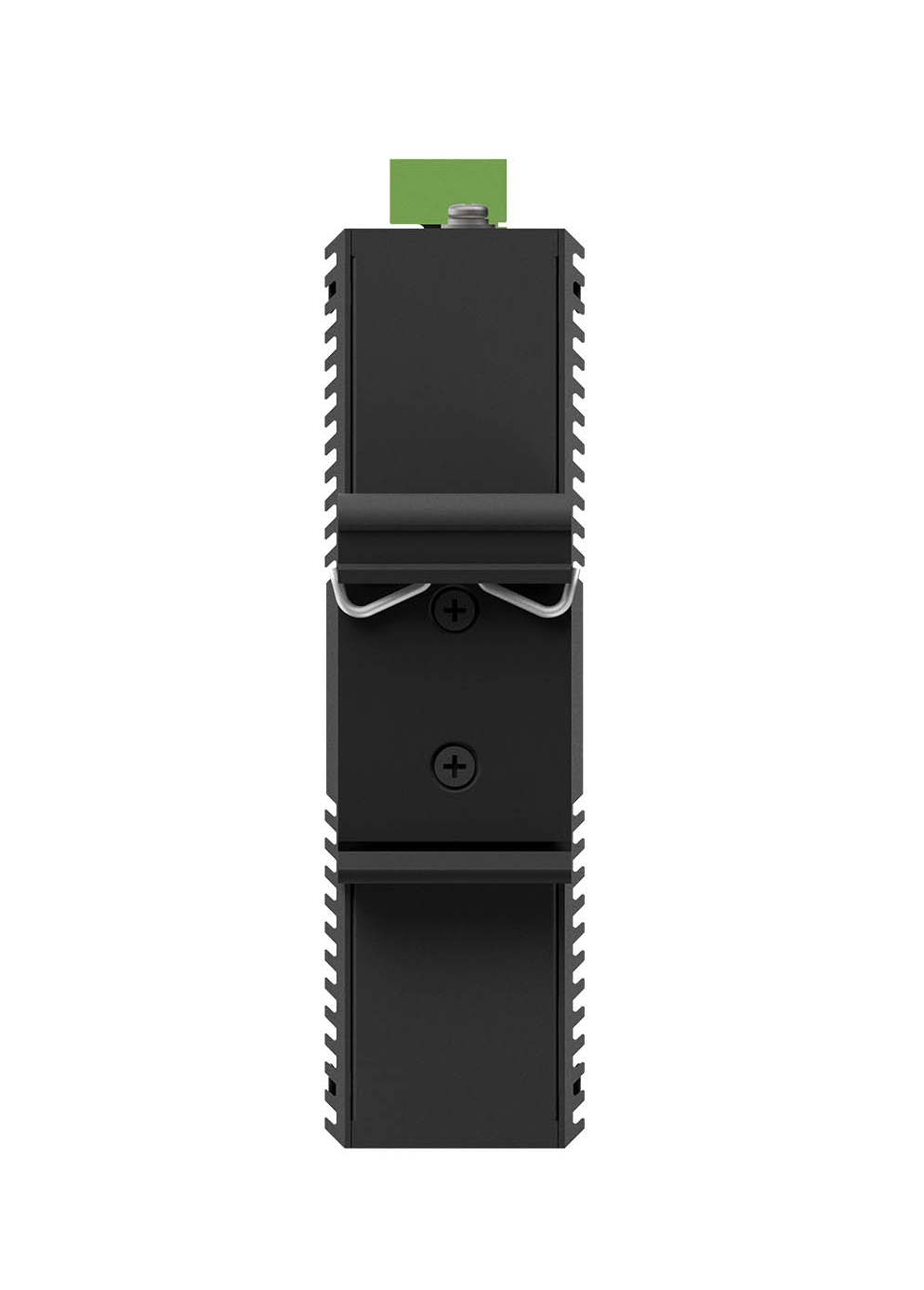

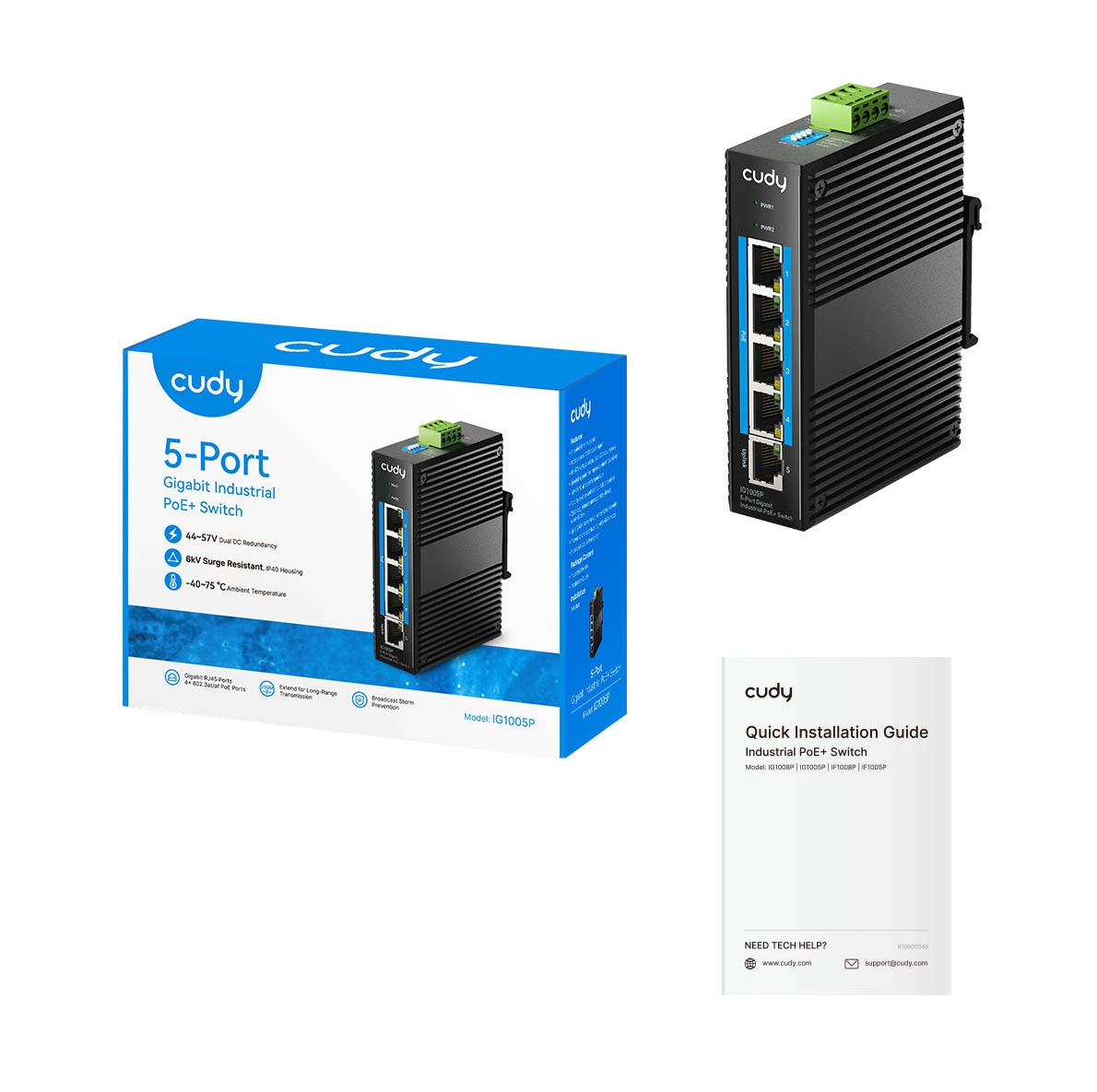

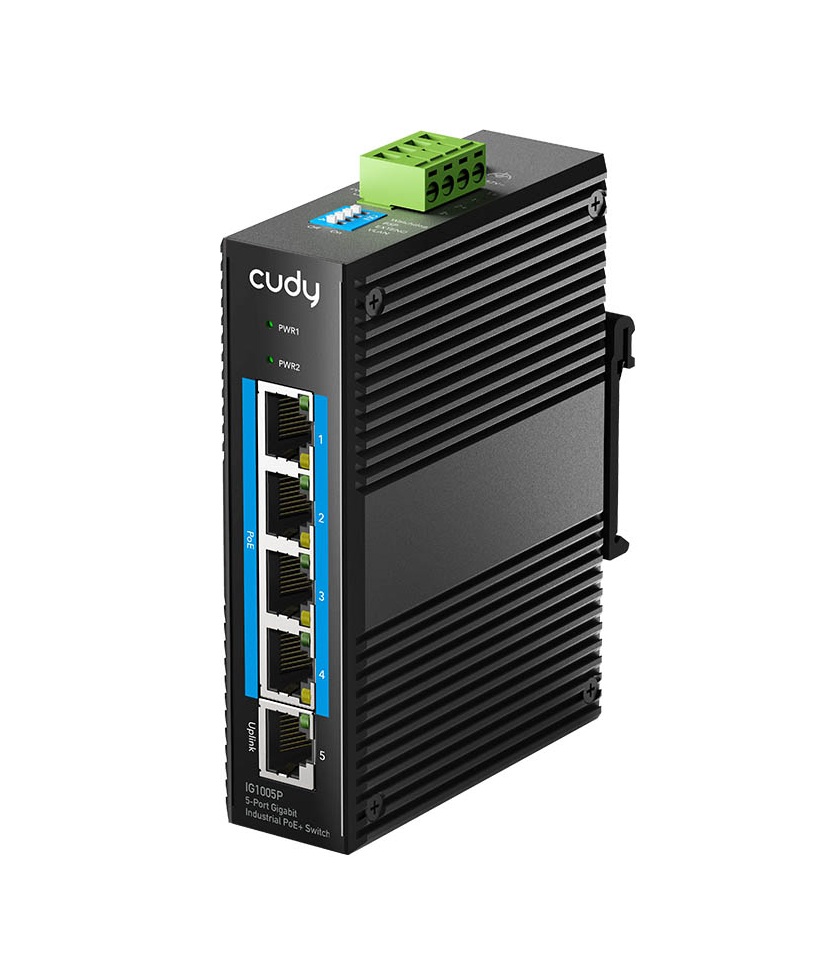

The Cudy IG1005P is a ruggedized 5-port Gigabit industrial PoE+ switch engineered to deliver reliable performance and high power distribution in extreme operating environments. Featuring four IEEE 802.3at/af PoE+ ports alongside an additional Gigabit uplink port, it provides up to 120 W of total PoE power budget to drive hungry remote devices like PTZ security cameras, wireless access points, and access control hardware. Encased in an IP40-rated aluminum housing with an integrated DIN-rail bracket, it is shielded against severe electrostatic discharges, surges, and wide temperature swings. I provides the benefit of a plug-and-play solution designed for demanding outdoor or smart home deployments and system integrators gain a resilient, cost-effective infrastructure centerpiece built for industrial automation, transport, and commercial surveillance projects.

• Industrial-Grade Construction: Heavy-duty IP40 aluminum casing with an integrated DIN-rail mount designed for harsh physical conditions and extreme temperatures.
• High PoE Power Budget: Delivers up to 120 W total PoE budget across 4 Gigabit PoE+ ports (up to 30 W per port) for energy-demanding devices.
• Redundant Power Input: Equipped with dual DC inputs (44 V to 57 V) with reverse polarity and short-circuit protection to maintain uninterrupted network uptime.
• Integrated Hardware DIP Switches: Includes dedicated hardware controls for PoE Watchdog auto-recovery, Port Isolation (VLAN), Broadcast Storm Protection, and Extend Mode (up to 250 meters).
• Advanced Electrical Protection: Level 4 EMS rating providing ±6 kV surge resistance and ±15 kV ESD protection to safeguard connected network gear.
