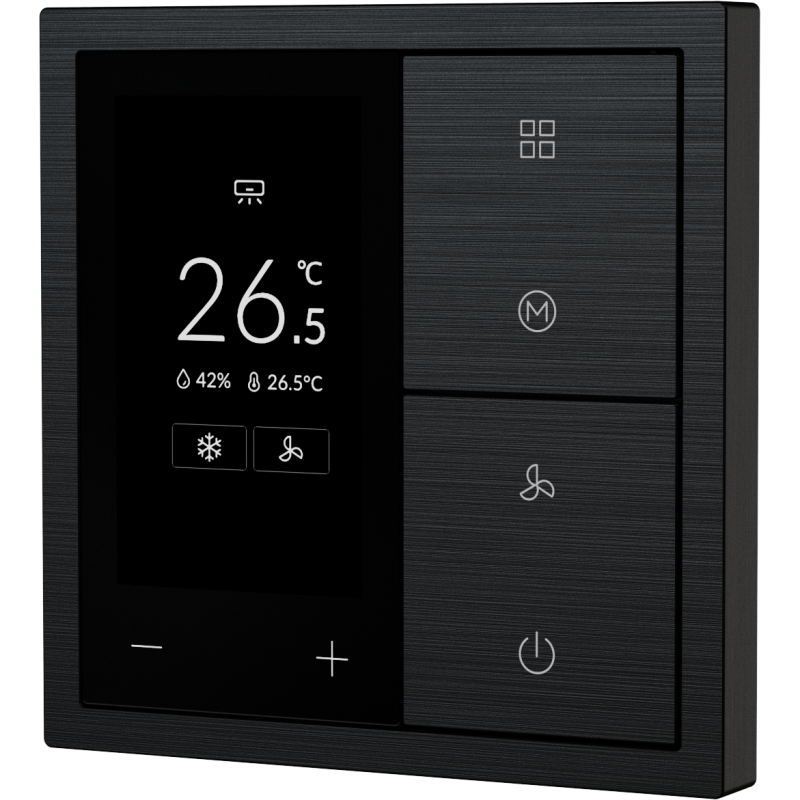

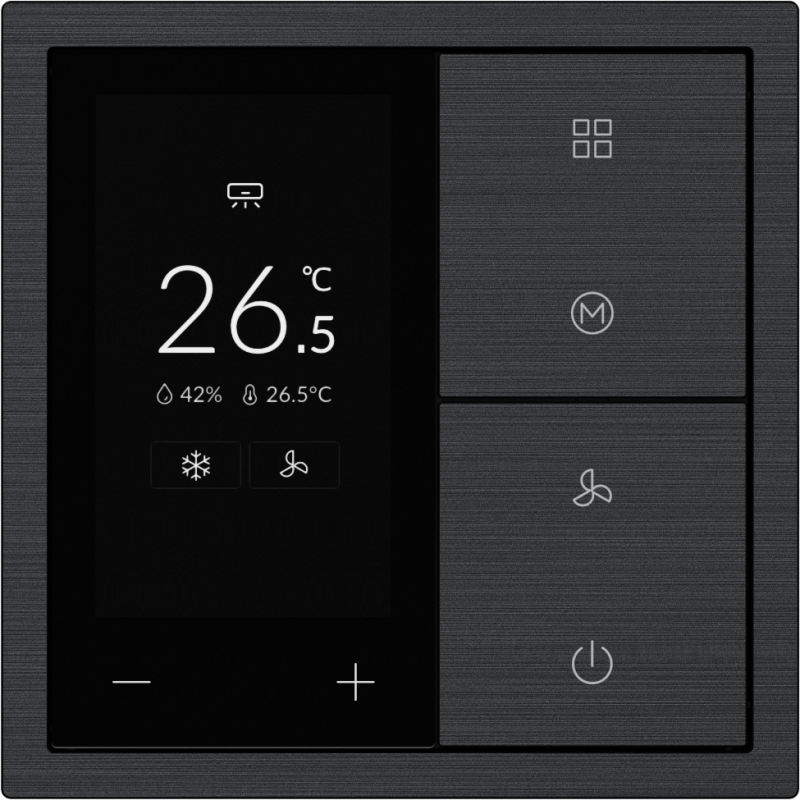

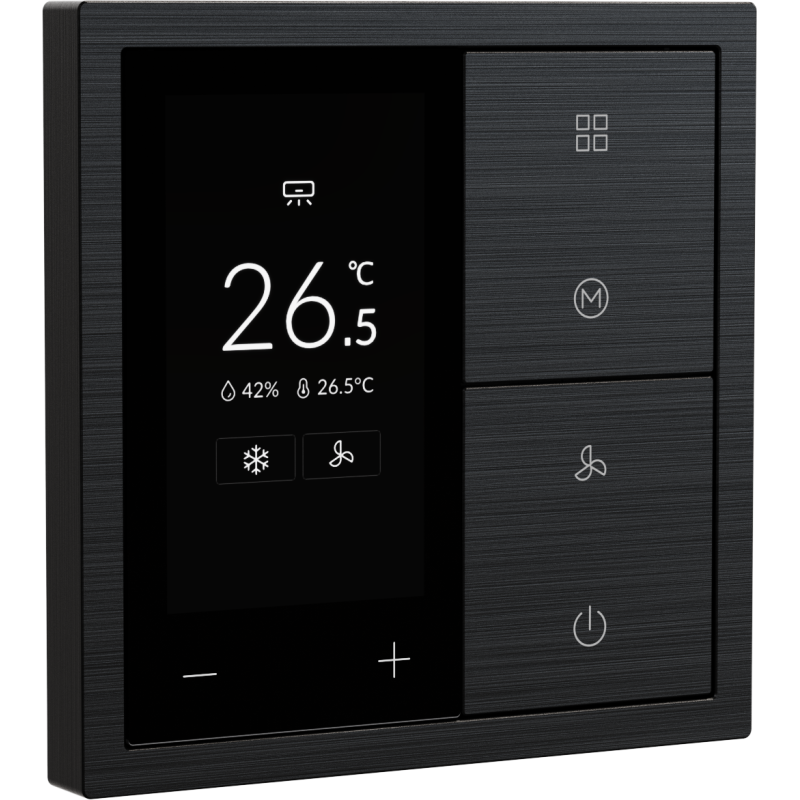

HDL Panel XELENT SERIES Black Thermostat 6 Button OLED

Order Code: 31185
HDL Automation

HDL Panel XELENT SERIES Black Thermostat 6 Button OLED

Order Code: 31185
  • Type: Thermostat
  • Number of Buttons: 6
  • Material: Aluminium
  • Thermostat: Yes
  • Screen Sizes: 2inch
Stock Level: Available in 1 weeks
Price €222.00

Powered by MPFPIT-2P-KT.18 (order code : 31201)

  • Built-in temperature and humidity sensor collects the temperature and humidity of the location of the device and displays it on the screen, supporting scene linkage with other devices of HDL system
  • Human proximity sensor : When the human body approaches this device, the panel's display screen will light up automatically
  • Screen backlight brightness can be set on EST
  • HVAC control : air conditioning control (VRF), floor heating control, fresh air control.
  • Button lock/unlock function

Xelent Series Thermostat Panel, has a segmented LCD screen and mechanical buttons, each button supporting laser engraving, and it has air conditioning, underfloor heating, fresh air pages and mode, wind speed pages

  • Input  : ≤250mA/5V DC
  • KNX bus supply : 5mA/30V DC
  • Auxiliary power supply : 52mA/24V DC
  • Dimensions (W X H X D) 81.3×81.3×9(mm) (Not including power interface)
Barcode (EAN) 31185
