HDL Panel Power Interface for TILE Xelent Thermostat Series

Order Code: 31201

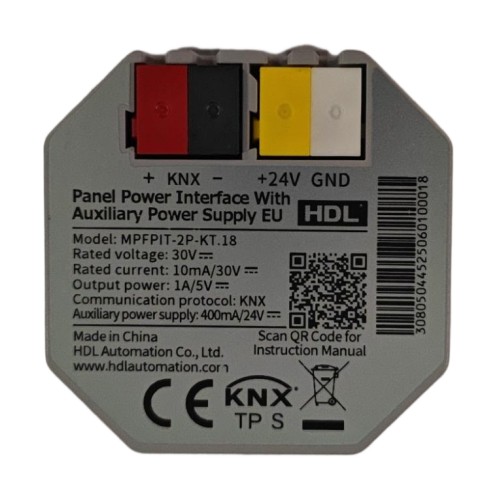

HDL Panel Power Interface for TILE Xelent Thermostat Series
HDL Automation

HDL Panel Power Interface for TILE Xelent Thermostat Series

Order Code: 31201
Stock Level: Available in 1 weeks
Price €58.00
  • HDL KNX Panel Power Interface EU is used with KNX thermostat panels and display panels to provide working voltage and communication signals for the panel

Basic Parameters

  • Working voltage: 21~30V DC
  • Communication: KNX


External Environment

  • Working temperature: -5℃~45℃
  • Working relative humidity: ≤90%
  • Storage temperature: -20℃~60℃
  • Storage relative humidity: ≤93%

Specifications

  • Dimensions: 51.2×51.2×23.1 (mm)
  • Net weight: 77.5g
  • Housing material: PC
  • Installation: Wall box
  • Protection rating (Compliant with EN 60529): IP20
Barcode (EAN) 31201
Datasheet
