MercuryMercury RG59 Shotgun Foam Cable 100m 808.105UK

Order Code: 19716

STOCK LEVEL: High



€100.00



- +

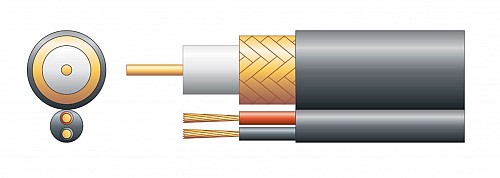

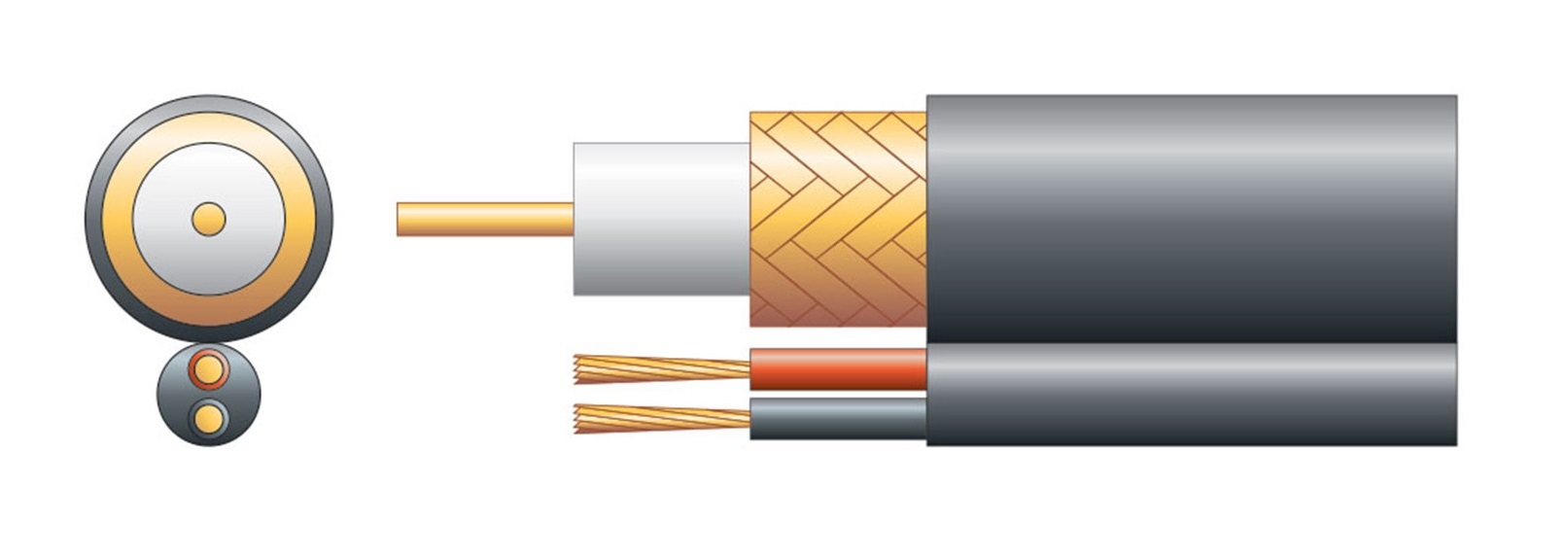

75 Ohms RG59 coaxial cable coupled with a two core power cable. Constructed of a solid oxygen free copper conductor, foam filled polyethylene dielectric and copper clad aluminium braid. Paired with a two core strand conductor double insulated power cable. Designed for CCTV power and signal transmission.

  • Solid OFC coaxial conductor
  • Foam filled PE dielectric
  • CCA braid
  • Stranded OFC power cable conductor
  • Supplied in 100m reel with metric cut markers
  • CSA: 0.5mm²
  • Conductor diameter: 0.8mmØ
  • Conductor material: Solid OFC
  • Braid: 48 x 0.12mmØ
  • Braid: material CCA
  • Dielectric: 3.7mmØ foam PE
  • Cable diameter: 6mmØ
  • Impedance: 75 Ohms
  • Capacitance: 67pF/m
  • Velocity factor: 83%
  • Power cable: 2 x 7/0.38mmØ (0.79mm²) bare copper, red/black
  • Max. current: 6A
  • Return loss 5-400MHz: 24dB min./100m
  • Return loss 450-1000MHz: 20dB min./100m
  • Return loss 1000-2150MHz: 16dB min./100m
  • Attenuation @ 5MHz: 2.8dB max./100m
  • Attenuation @ 50MHz: 5.1dB max./100m
  • Attenuation @ 100MHz: 7.3dB max./100m
  • Attenuation @ 200MHz: 10.1dB max./100m
  • Attenuation @ 400MHz: 14.9dB max./100m
  • Attenuation @ 860MHz: 22.1dB max./100m
  • Attenuation @ 1000MHz: 24.7dB max./100m
  • Attenuation @ 1750MHz: 34.1dB max./100m
  • Attenuation @ 2150MHz: 38.1dB max./100m
  • Colour: Black
  • Length: 100m
  • Weight: 6.4kg
