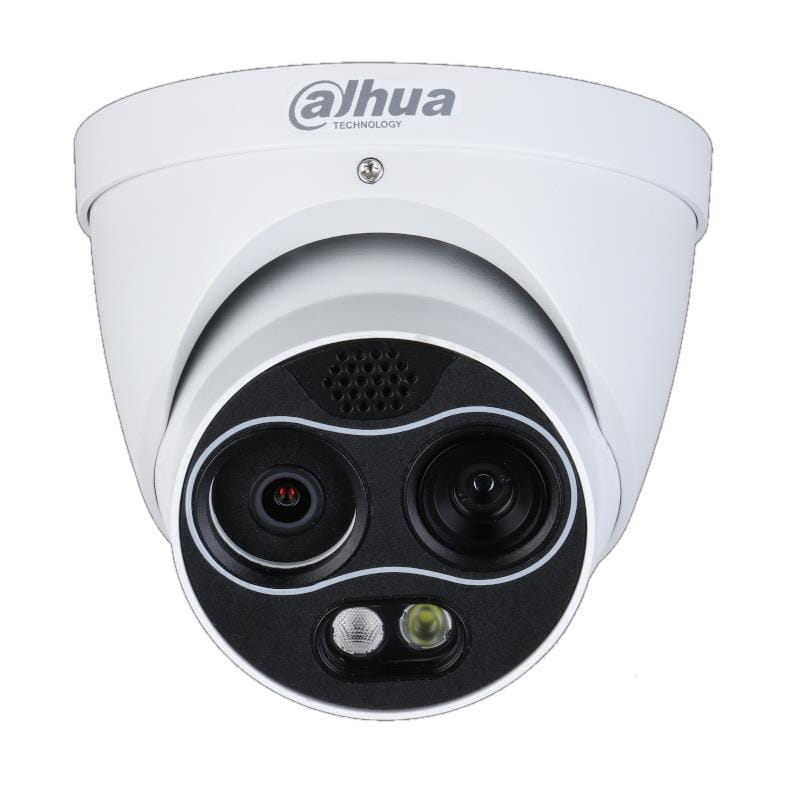

Dahua IP 4.0MP Dome Thermal WizSense TPC-DF1241-D3F4

Order Code: 23372

AI Features: Fire Detection & Alarm,Cold & Hot Spot,Trace Human & Vehicle Classification,Smoking Detection,Call Detection
Camera Resolution: 4.0MP
Housing Type: Dome
Lens: Fixed
Lens Size: 3.5mm
IR Distance: Up to 30m
WDR: DWDR
Audio: 1 Input, 1 Output
Alarm: 1 Channel In, 1 Channel Out
Others: RS-485

Stock Level: Out of stock

Price: €914.₀₀

Thermal

Detector Type : Vanadium Oxide Uncooled FPA
Max. Resolution : 256 × 192
Pixel Pitch : 12 μm
Spectral Range : 8 μm–14 μm
Thermal Sensitivity (NETD) : < 50 mK (@f/1.0,25Hz,300K)
Focal Length: 3.5 mm
Field of View H: 50.6°, V 37.8°
Close Focus Distance : 0.5 m
Effective Distance Human (1.8 m × 0.5 m) : D: 146 m / R: 38 m / I: 19 m
Effective Distance Vehicle (4.0 m × 1.4 m) : D: 389 m / R: 97 m / I: 49 m
Aperture : F1.0
Digital Detail Enhancement (DDE) : Yes
Digital Zoom : 16 ×
AGC : Auto; Manual
Noise Reduction : 2D NR; 3D NR
Image Flip : 90°; 180°; 270°
ColorPalettes : 18(Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2, etc.)
Fusion Mode : 3 (Warm color; cool color; Ironred)

Visible

Intelligence

General Intelligence : Tripwire, Intrusion
Advanced Intelligence : Fire Detection & Alarm / Cold & Hot Spot Trace / Human & Vehicle Classification / Smoking Detection / Call Detection

Video and Audio

Resolution

Thermal : Main Stream: 1280 × 960 (1.3M)/XVGA (1024 × 768)/VGA (640 × 480)/256 × 192, 1280 × 960 by default / Sub Stream: VGA (640 × 480)/256 × 192, 256 × 192 by default /
Visual : Main Stream: 2336 × 1752/1080P (1920 × 1080)/720P (1280 × 720)/D1 (704 × 576), 2336 × 1752 by default / Sub Stream: 720P (1280 × 720)/D1 (704 × 576)/CIF (352 × 288), 352 × 288 by default

Frame Rate

Thermal : 50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default / 60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Visual : 50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default / 60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default

Audio Compression

Network

Protocol : HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP
Edge Storage : Micro SD card (256 G)
Interoperability : ONVIF; CGI
Browser : IE: IE8 and the later, and explorer with IE core / Google: 42 and the earlier / Firefox: 42 and the earlier
User/Host : 10
Security : Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

Certification

Port

Power

Environment

Operating Temperature : –30°C to +60°C (–22°F to +140°F)
Storage Temperature : –30°C to +70°C (–22°F to ﹢158°F)
Operating Humidity : ≤ 95%
Protection : IP67, anti-surge 6KV, anti-elctrostatic 6KV (touched by objects), anti-elctrostatic 8KV (air)

Structure
