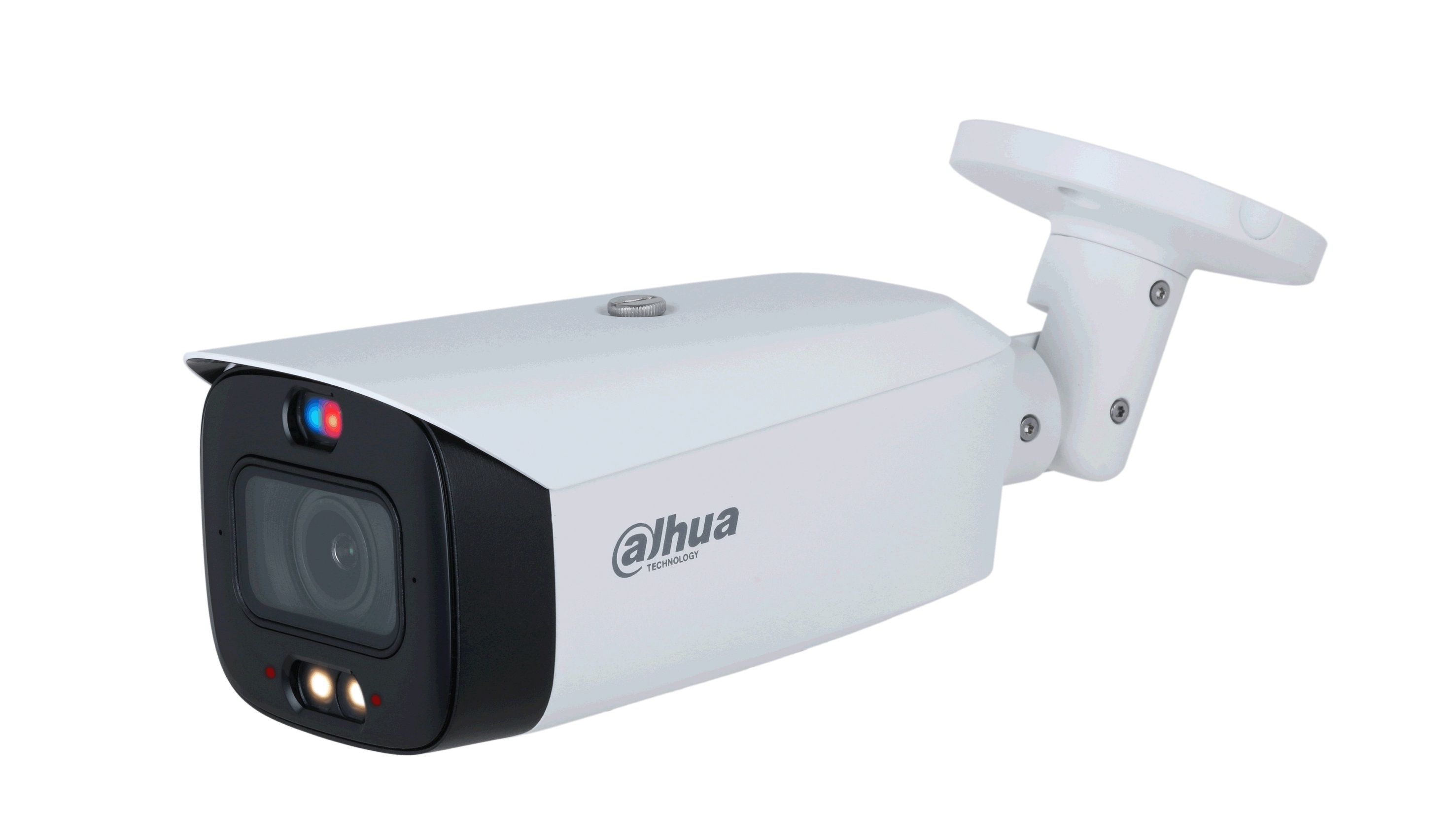

Dahua IP Lite AI 8.0MP Bullet 2.7-13.5mm Smart Dual Illumination Active Deterrence Camera HFW3849T1-ZAS-PV-27135

Order Code: 24022

Stock Level: Good

Price: €682.₀₀

8-MP 1/2.8" CMOS image sensor, low luminance, and high definition image
Outputs max. 8 MP (3840 × 2160) @25/30 fps. · H.265 codec, high compression rate, ultra-low bit rate
Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk
12 VDC/PoE power supply
IP67 protection
Sound and light alarm (red and blue lights)
SMD 4.0
One-click arming/disarming through alarm input

Camera

Image Sensor : 1/2.8" CMOS
Max. Resolution : 3840 (H) × 2160 (V)
ROM : 128 MB
RAM : 1 GB
Scanning System : Progressive
Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
Min. Illumination : 0.004 lux@F1.0 (Color, 30 IRE) / 0.0004 lux@F1.0 (B/W, 30 IRE) / 0 lux (illuminator on)
S/N Ratio : ﹥56 dB
Illumination Distance : 50 m (IR) / 40 m (warm light)
Illuminator On/Off Control : Auto/Manual
Illuminator Number : 2 (IR LED) / 2 (warm light)

Lens

Lens Type : Motorized vari-focal
Mount Type : φ16
Focal Length : 2.7 mm–13.5 mm
Max. Aperture : F1.0
Field of View : Horizontal: 108°–34° / Vertical: 56°–19° / Diagonal: 130°–39°
Iris Type : Fixed
Close Focus Distance : 1.5 m
Professional, intelligent
IVS (Perimeter Protection) : Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
SMD 4.0 : Less false alarm, longer detection distance
Quick Pick : With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
AI SSA : Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Video

Video Compression :H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec : Smart H.265+; Smart H.264+
AI Coding : AI H.265; AI H.264
Video Frame Rate : Main stream: 3840 × 2160@ (1–30 fps) / Sub stream: 704 × 576@ (1–25 fps)/704 × 480@ (1–30 fps) / Third stream: 1920 × 1080@ (1–30 fps)
Stream Capability : 3 streams
Resolution : 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control : CBR/VBR
Video Bit Rate : H.264: 3 kbps–8192 kbps / H.265: 3 kbps–8192 kbps
Day/Night : Auto (ICR)/Color/B/W
BLC : Yes
HLC : Yes
WDR : 120 dB
Scene Self-adaptation : Yes
White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control : Auto; manual
Noise Reduction : 3D NR
Motion Detection : OFF/ON (4 areas)
Region of Interest (RoI) : Yes (4 areas)
Image Stabilization : Electronic Image Stabilization (EIS)
Smart Illumination : Yes
Defog : Yes
Image Rotation : 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror : Yes
Privacy Masking : 4 areas

Alarm

Alarm Event : No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; security exception

Network

Network : RJ-45 (10/100 Base-T)
SDK and API : Yes
Cyber Security : Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability : ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host : 20 (Total bandwidth: 72 M)
Storage : FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser : IE: IE8/9/11 / Chrome / Firefox
Management Software : Smart PSS; DSS; DMSS
Mobile Phone : iOS; Android

Certification

Port

Power

Power Supply : 12V DC/PoE (802.3af)
Power Consumption : Basic: 4.3 W (12 VDC); 5.5 W (PoE) / Max. (H.265+main stream/IR intensity+warm light on): 7.9 W (12 VDC); 9.8 W (PoE)

Environment
